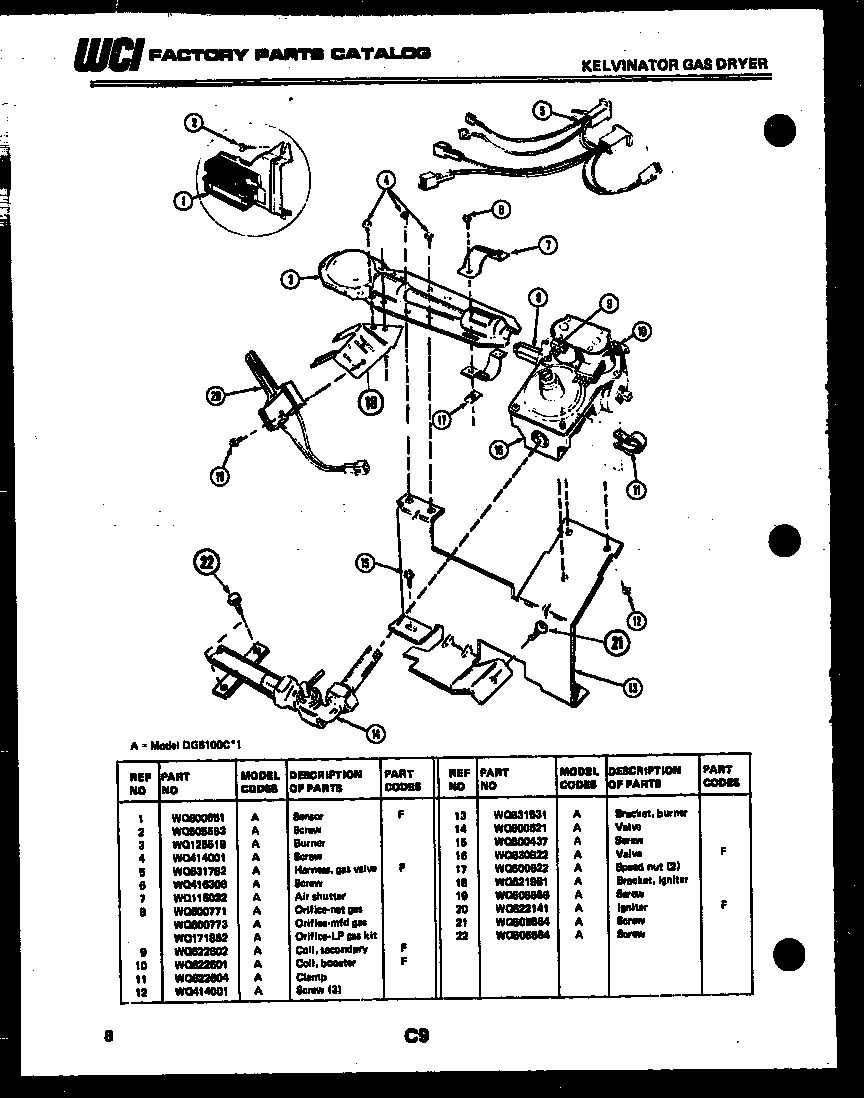

DGS100CD1 05 – BURNER, IGNITER AND VALVE

Products

Position	Product
1	5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
2	SCREW-BOT PAN (4)
3	134264900 Frigidaire Burner
5	WCI WQ631782
6	WCI WQ416306
7	WCI WQ116032
8A	WCI WQ600773
8	WCI WQ600771
8B	WCI WQ171852
10	5303931775 Frigidaire Dryer Coil Kit
11	240396801 Frigidaire Refrigerator Tube Clamp
12	131243800 Frigidaire Screw
13	WCI WQ631531
14	WCI WQ600621
15	WCI WQ500437
16	WCI WQ630822
17	WCI WQ500622
18	WCI WQ621981
19	WCI WQ505556
20	5303937186 Frigidaire Dryer Flat Igniter Assembly
22	WCI WQ505564
