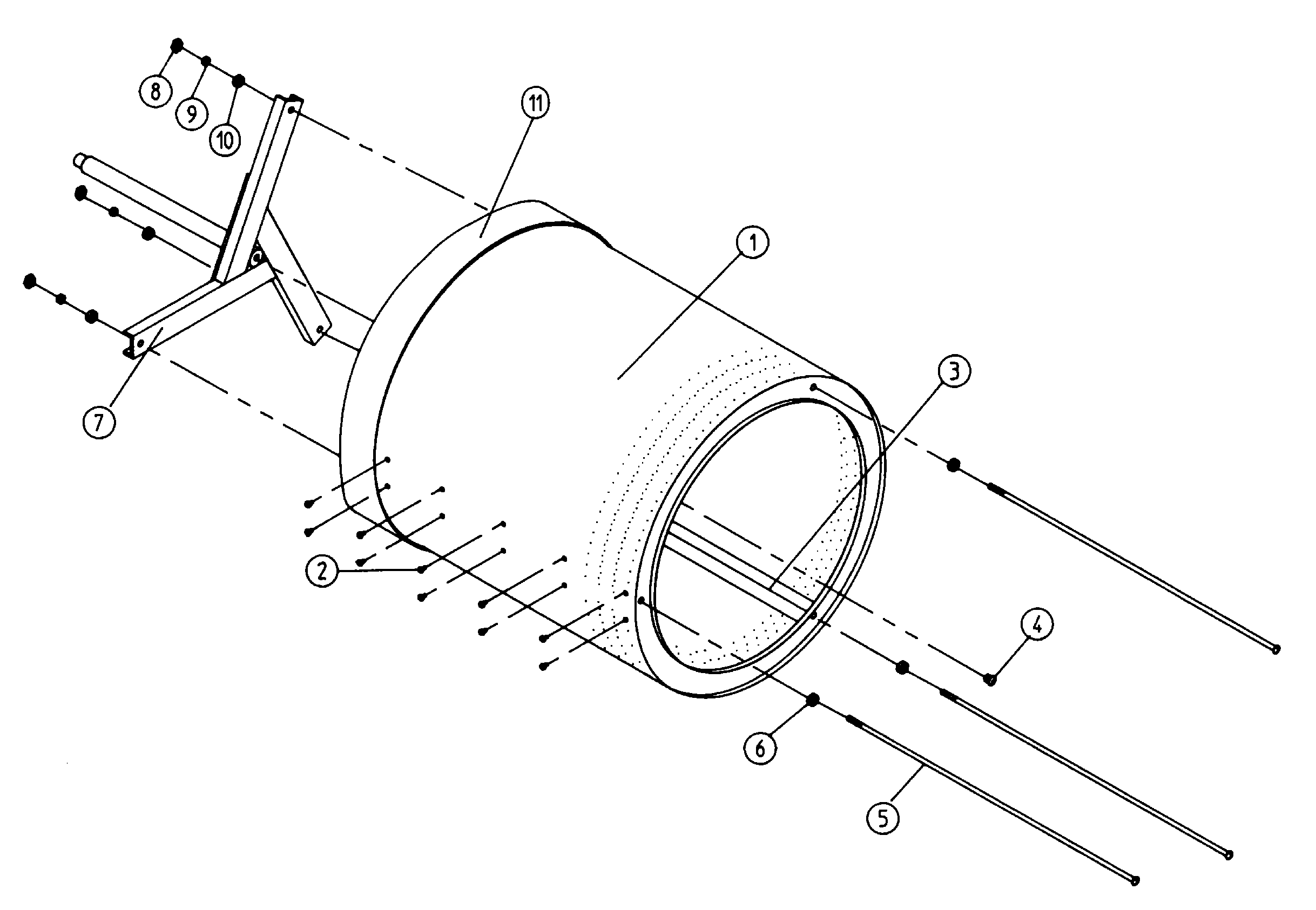

DGS30PC1 09 – TUMBLER/SUPPORT ASSEMBLY
Written by
in
DGS30PC1 09 – TUMBLER/SUPPORT ASSEMBLY
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A800827 |
| 001 | MAY A880116 |
| 002 | MAY A154210 |
| 003 | MAY A301309 |
| 004 | MAY A150500 |
| 005 | MAY A100902 |
| 006 | MAY A153003 |
| 007 | MAY A800617 |
| 008 | MAY A152004 |
| 009 | MAY A153002 |
| 010 | MAY A153001 |
| 011 | MAY A116003 |
| 011 | MAY A401010 |
