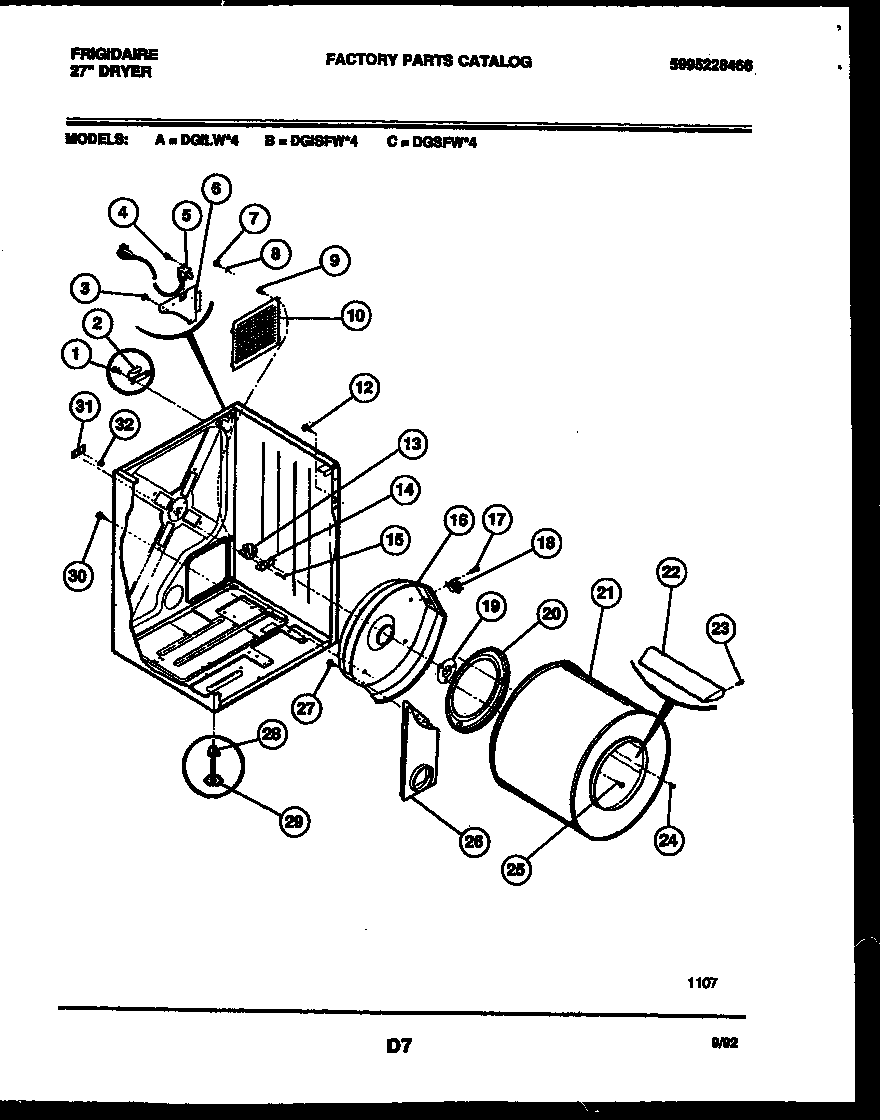

DGSFL4 02 – CABINET AND COMPONENT PARTS

Products

Position	Product
*66826	WCI 5303281153]
1	WCI 08011338
2	WCI 3281175
3	SCREW (1)
5	SERVICE CORD (1)
6	WCI 3281130
7	134154100 Frigidaire Screw 10-32 x 0.375 Co
8	WASHER
10	COVER PLATE (1)
13	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14	131724301 Frigidaire Dryer Drum Bearing Bracket
15	131205400 Frigidaire Screw
16	HEATER HAG & SEAL ASSEMBLY (1)
17	SCREW (2)
18	5308015399 Frigidaire P-1 THERMSTAT-Safety
19	5303931781 Frigidaire Shaft
20	3204254 Frigidaire Baffle Assembly
21	WCI 3201199
22	137552900 Frigidaire Vane
23	131382300 Frigidaire Screw-VANE
24	SCREW (3)
25	SCREW (INCLUDED IN REAR BEARING KIT) (3)
26	DUCT-HEAT
27	SCREW (2)
28	WCI 3201202
29	WCI 3281032
30	SCREW (4)
31	5303281020 Frigidaire Ball Clip
32	5303281019 Frigidaire Ball Assembly
