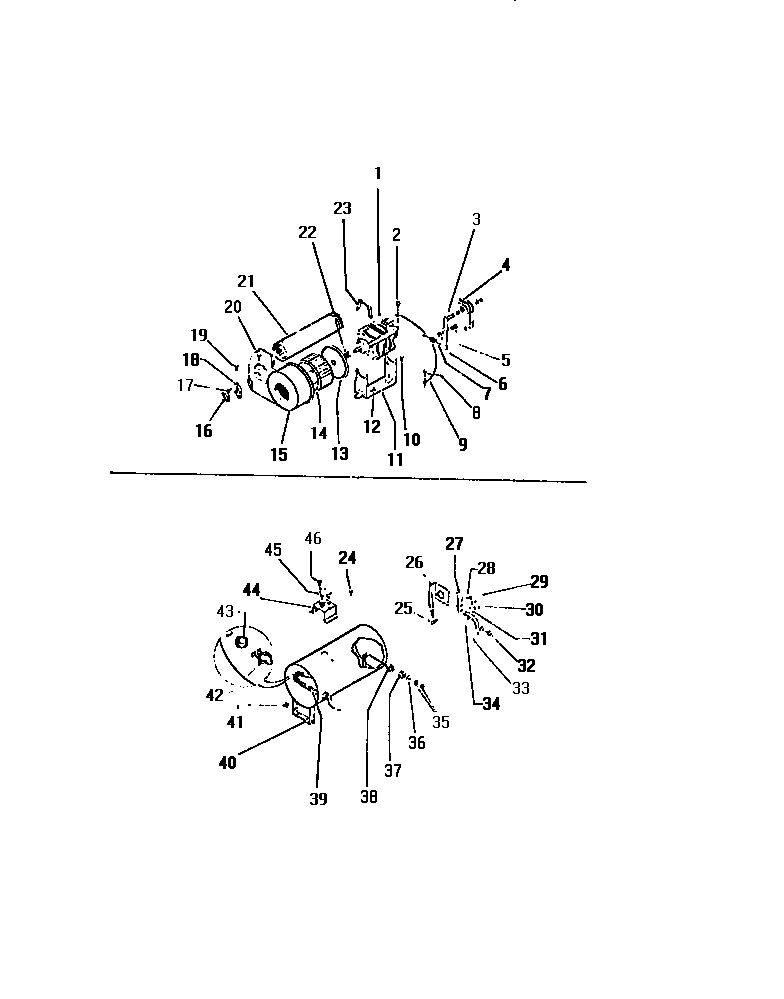

DGT400A0D 05 – BLOWER & HEATER HOUSING COMPONENTS

Products

Position	Product
*41881	COMPLETE HTR ASSEMBLY
1A	MOTOR SWITCH (EMERSON)
1	MOTOR AND PULLEY ASSEMBLY, GE
1A	MOTOR SWITCH (GE)
2	WCI F132144-000
3	IDLER WHEEL ASSEMBLY (IDLER BAR ASSEMBLY WHEEL AND WASHE
4	BELT
5	WCI F079485-000
6	WCI F076822-000
7	WCI F131652-000
9	GROUND WIRE, GAS
10	SEMS SCREW
11	WCI F078190-026
13	WCI F064354-028
14	WCI F076829-000
15	WCI F078201-100
16	WCI F132075-000
18	BRACKET
21	EXHAUST PIPE ASSEMBLY
22	WCI F064360-000
23	MOTOR CLIP (2)
26	WCI F063536-026
27	5304409888 Frigidaire Oven Terminal Block with Hardware
28	SCREW (6)
30	NUT (4)
31	WCI F073329-000
32	134154100 Frigidaire Screw 10-32 x 0.375 Co
33	WCI F078101-000
34	WCI F076793-100
35	NUT (2)
36	WASHER (2)
37	INSULATOR, FEMALE (2)
38	INSULATOR, MALE (2)
39	HEAT ELEMENT PKG (PACKAGE CONTAINS ELEMENT, INSULATORS,
40	HTR. HOUSING
42	CLIP (11)
43	WCI F131735-000
44	WCI F076956-000
45	WCI F132202-000
46	5303015671 Frigidaire Bracket Termination Screw
