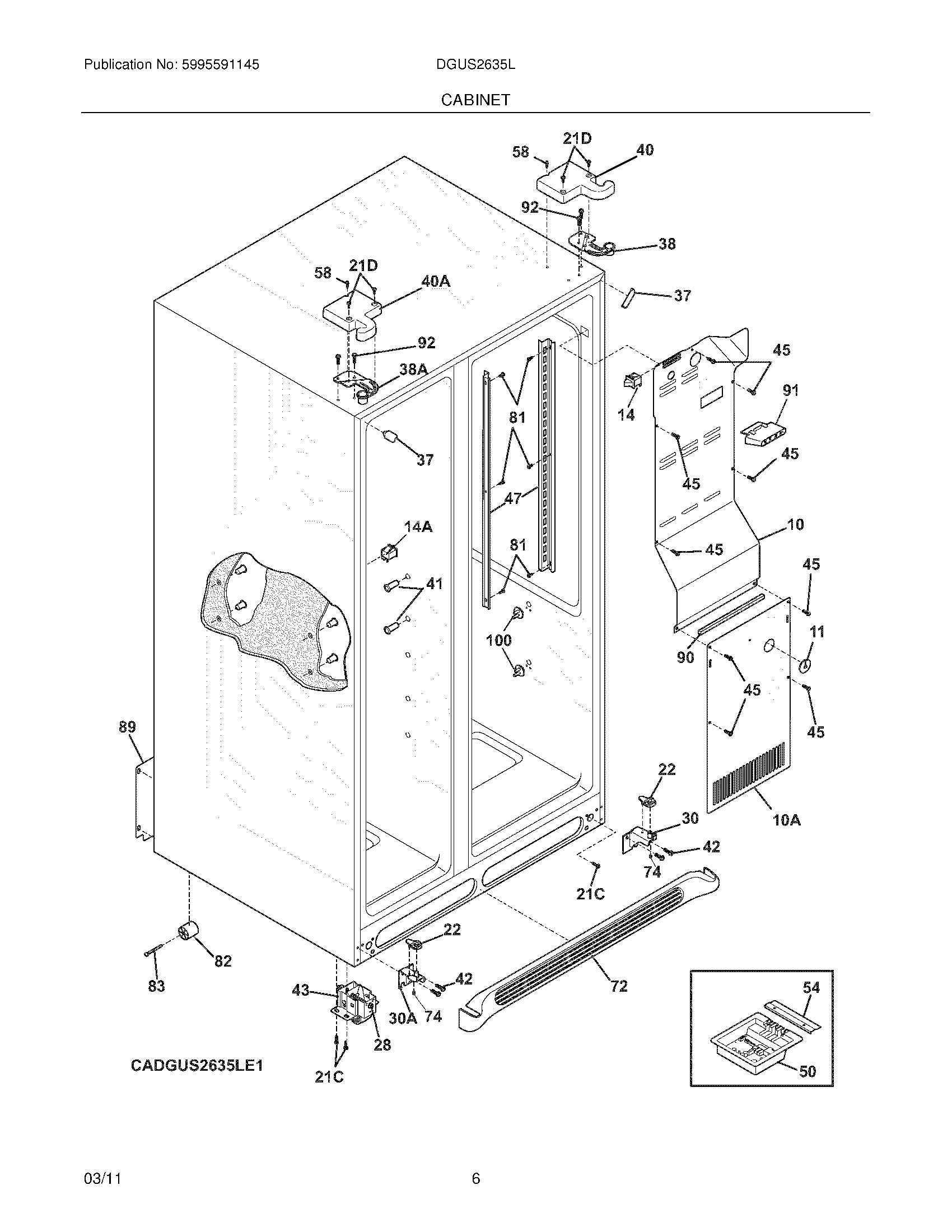

DGUS2635LE1 07 – CABINET

DGUS2635LE1 07 – CABINET

Written by

in

DGUS2635LE1 07 – CABINET

Products

PositionProduct
NI241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
NI241868101 Frigidaire Air Guide
NIWCI 241867901
NI241890601 Frigidaire Refrigerator Louver Assembly
NI241852501 Frigidaire Refrigerator Clip
NI240396801 Frigidaire Refrigerator Tube Clamp
10240435912 Frigidaire Refrigerator Cover-Air Duct
10A241719711 Frigidaire Refrigerator Evaporator Coil Cover
115303208309 Frigidaire Refrigerator Plug Hole
14A242060201 Frigidaire Refrigerator Switch-Light/Lamp
14240505801 Frigidaire Light Switch
21C218252201 Frigidaire Refrigerator Screw
21D218781101 Frigidaire Handle Screw
22241917801 Frigidaire Refrigerator Closer Plate
30241918001 Frigidaire Lower Door Hinge
30A241918002 Frigidaire Refrigerator Lower Hinge
37242161202 Frigidaire Refrigerator Trim-Cabinet Corner
38A241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38241761301 Frigidaire Upper Bracket Hinge
40A241946716 Frigidaire Refrigerator Upper Hinge Cover
40241946715 Frigidaire Refrigerator Upper Hinge Cover
41241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42240578902 Frigidaire Screw Mounting Hinge
435304499445 Frigidaire Refrigerator Roller Assembly
45241500303 Frigidaire Refrigerator Screw
47241513001 Frigidaire Refrigerator Shelf Mounting Channel
50MAIN POWER BOARD
54241532401 Frigidaire Refrigerator Channel
58241548003 Frigidaire Refrigerator Screw
72241969403 Frigidaire Refrigerator Kickplate/Grille
74218755402 Frigidaire Refrigerator Set Screw
815304455650 Frigidaire Refrigerator Screw
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
895304520905 Frigidaire Assembly Cover Refrigerator
90218249808 Frigidaire Refrigerator Seal-Coil Cover
91240380101 Frigidaire Refrigerator Ice Maker Duct
92241710601 Frigidaire Refrigerator Screw
100241993001 Frigidaire Refrigerator Left Crisper Cover Support
100CRISPER COVER SUPPORT
