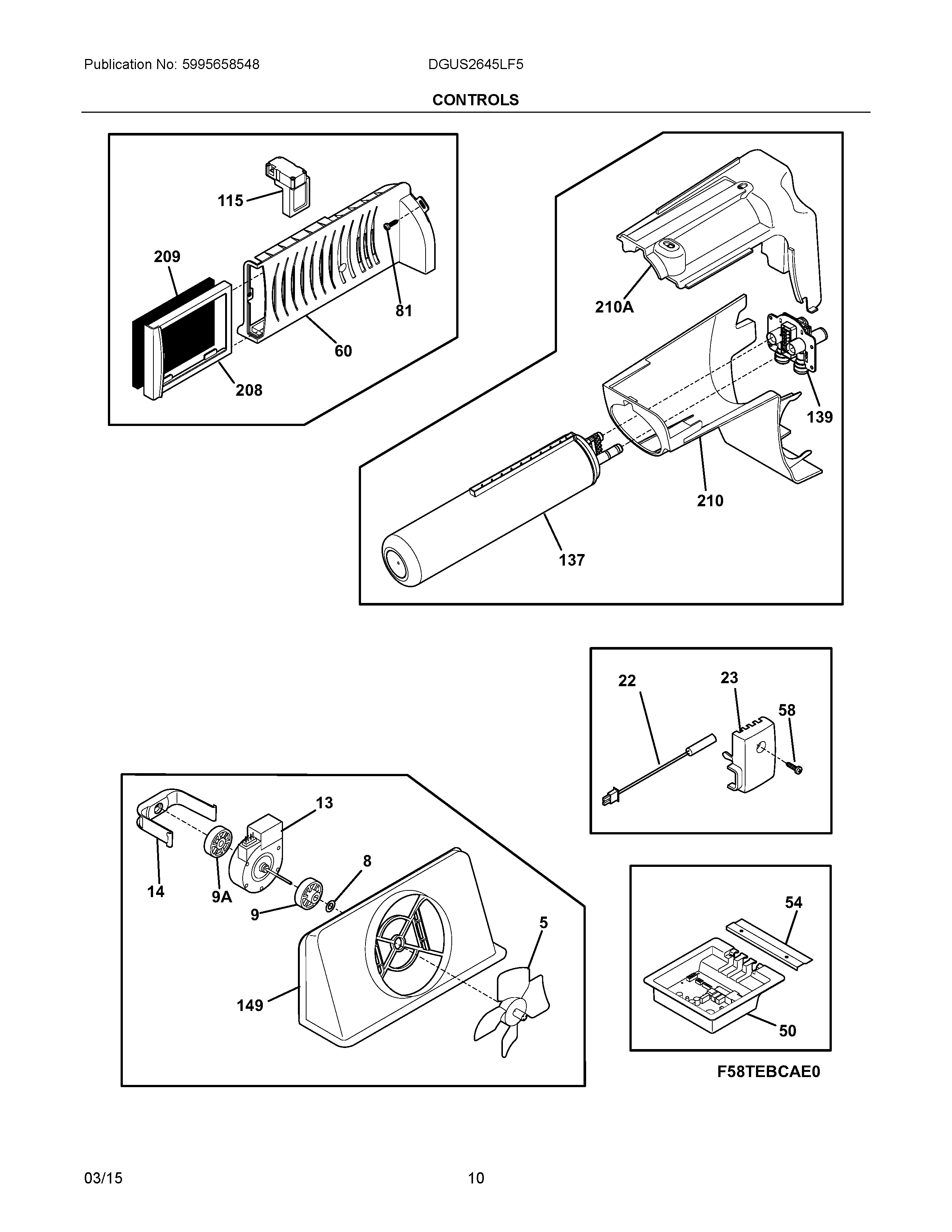

DGUS2645LF5 06 – CONTROLS

Products

Position	Product
NIA	WCI 241794401
NIA	WCI 241867901
NI	3205266 Frigidaire Refrigerator Edge Protector
NI	241852501 Frigidaire Refrigerator Clip
NIB	241945101 Frigidaire Refrigerator Air Duct Insulation
NI	5304535377 Frigidaire Aluminum Tape
NIA	241528303 Frigidaire Refrigerator Seal
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9A	241845301 Frigidaire Refrigerator Motor Mounting Bushing
9	241563601 Frigidaire Refrigerator Motor Mounting Bushing
13	MOTOR,EVAPORATOR FAN
14	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
22	240597220 Frigidaire Sensor
23	241845401 Frigidaire Refrigerator Housing-Sensor
50	MAIN POWER BOARD
54	241532401 Frigidaire Refrigerator Channel
58	5304455650 Frigidaire Refrigerator Screw
60	WCI 242010601
115	241853801 Frigidaire Refrigerator Damper Control Assembly
137	WF3CB Frigidaire PureSource Water Filter
139	242009602 Frigidaire Refrigerator Water Filter Base
149	242204506 Frigidaire Refrigerator Shroud Assembly
208	241754301 Frigidaire Refrigerator Sleeve
209	EAFCBF Frigidaire Refrigerator PureAdvantage Carbon Air Filter
210	241983814 Frigidaire Refrigerator Water Filter Housing
210A	241998303 Frigidaire Refrigerator Water Filter
