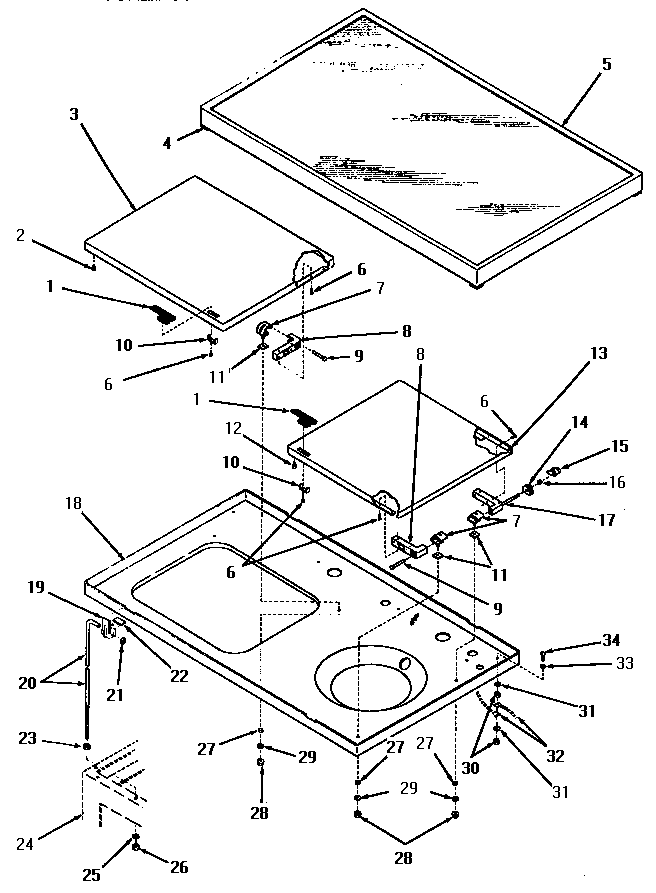

DH1150 04 – CABINET TOP AND LOADING DOORS
Written by
in
DH1150 04 – CABINET TOP AND LOADING DOORS
Products
Position
Product
1
MAY 10123
3
MAY 10116A
3
MAY 10116C
3
MAY 10116H
3
MAY 10116W
4
MAY 10376
5
MAY 10577H
5
MAY 10577A
5
MAY 10577C
5
MAY 10577W
6
MAY 22145
7
MAY 10125
8
MAY 10480
9
MAY Y10539
10
MAY 10124
11
MAY 10126
12
MAY 21176
13
MAY 10120C
13
MAY 10120A
13
MAY 10120W
13
MAY 10120H
14
MAY 10137
15
MAY 10138
16
MAY 10139
17
MAY 10494
18
MAY 10418W
18
MAY 10418C
18
MAY 10418A
18
MAY 10418H
19
MAY 10408
20
MAY 10436
21
MAY 10525
22
MAY Y10517
23
MAY 25250
25
MAY 02431
26
MAY 20275
27
MAY 02928
28
MAY 22001
29
MAY 20103
30
MAY 03673
31
MAY 03815
32
SEE NOTE GROUND WIRE, GREEN
33
MAY 21643
34
MAY 03814
←
