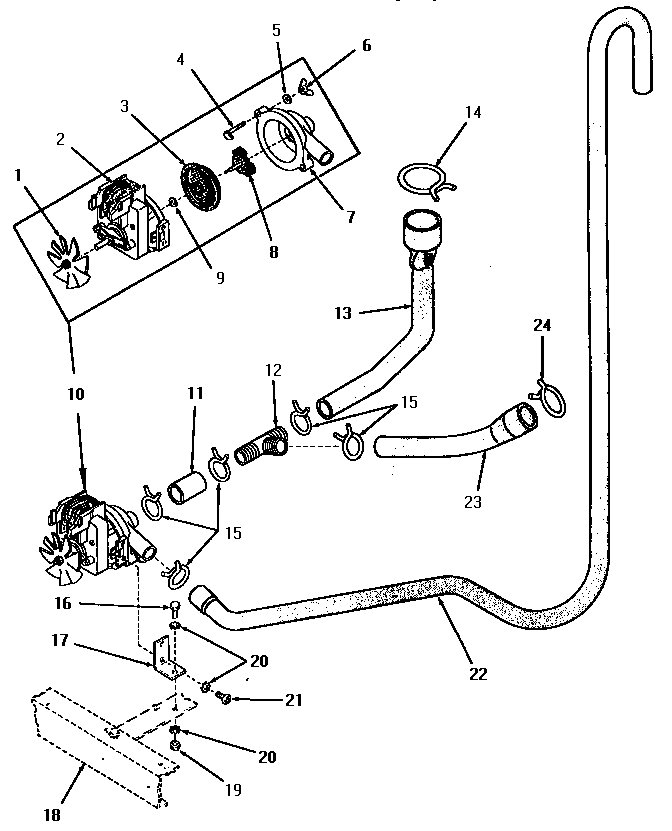

DH1150 06 – MOTOR AND PUMP ASSY AND HOSES

DH1150 06 – MOTOR AND PUMP ASSY AND HOSES

Written by

in

DH1150 06 – MOTOR AND PUMP ASSY AND HOSES

Products

PositionProduct
1MAY 10272
2MAY 10273
3MAY 10275
4MAY 10278
5MAY 10279
6MAY 10280
7MAY 10277
8MAY 10276
9MAY 10274
10MAY Y10530
11MAY 10430
12MAY 10434
13MAY 10481
14MAY Y10544
15MAY 21372
16MAY 02422
17MAY 10111
18SEE NOTE GROUND WIRE, GREEN
19MAY 20275
20MAY 02431
21MAY 20747
22MAY 10460
23MAY 10482
24MAY 10180
