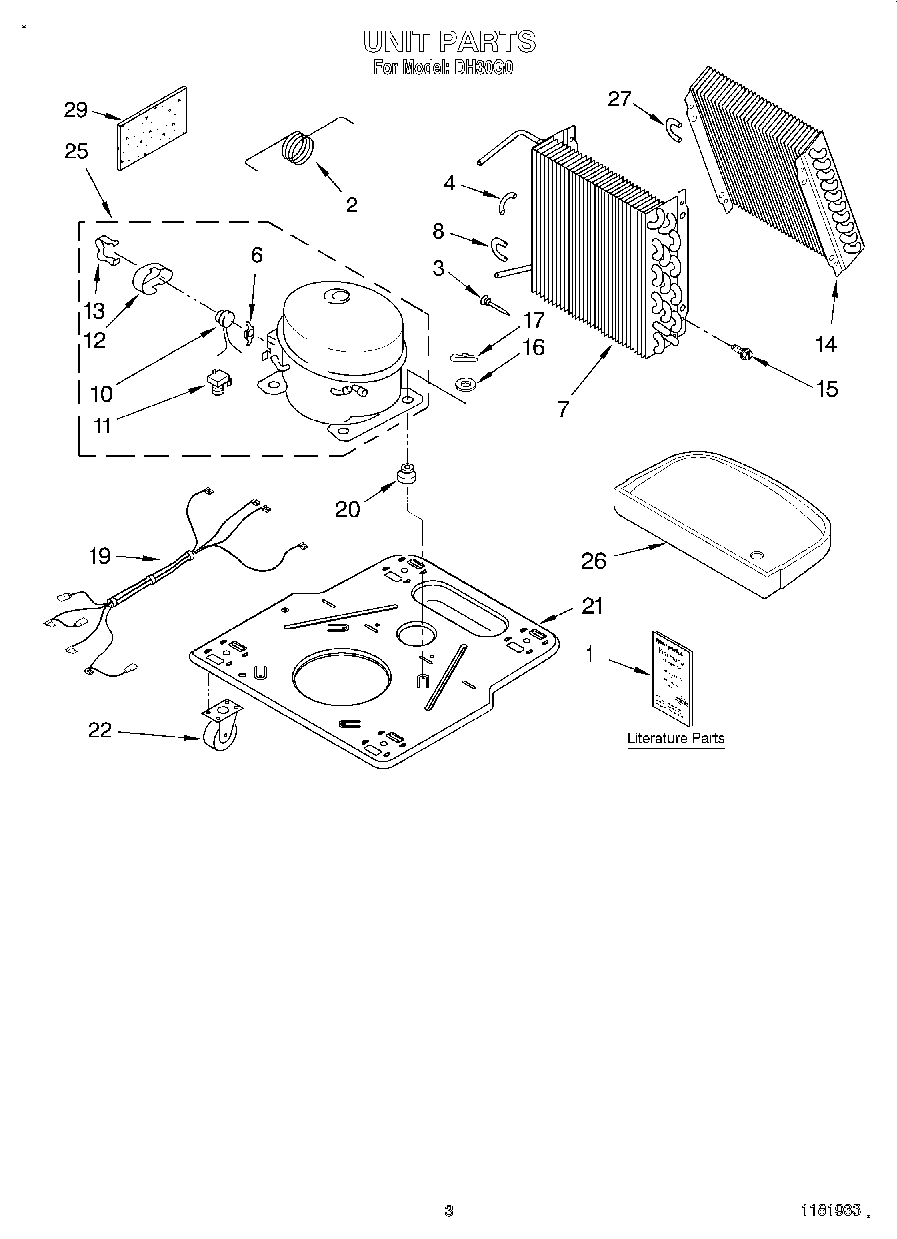

DH30G0 03 – UNIT

Products

Position	Product
2	Tube, Restrictor (Length 12.28“)
3	WP1162526 Whirlpool Air Conditioner Strainer
4	WPL 1169762
6	Spring, Overload
7	WPL 1181854
8	Bend, Return Condenser (4)
10	WPL 1172077
11	Relay
12	Cover, Terminal
13	Retainer, Cover
14	WPL 1168655
15	WP489069 Whirlpool Compactor Screw
16	Washer
17	Clip, Compressor
19	WPL 1168810
20	WPL 1168722
21	WPL 1168654
22	WPL 1164241
25	WPL 1164773
26	WPL 1168761
27	Bend, Return Evaporator (4)
29	WPL 1162650
