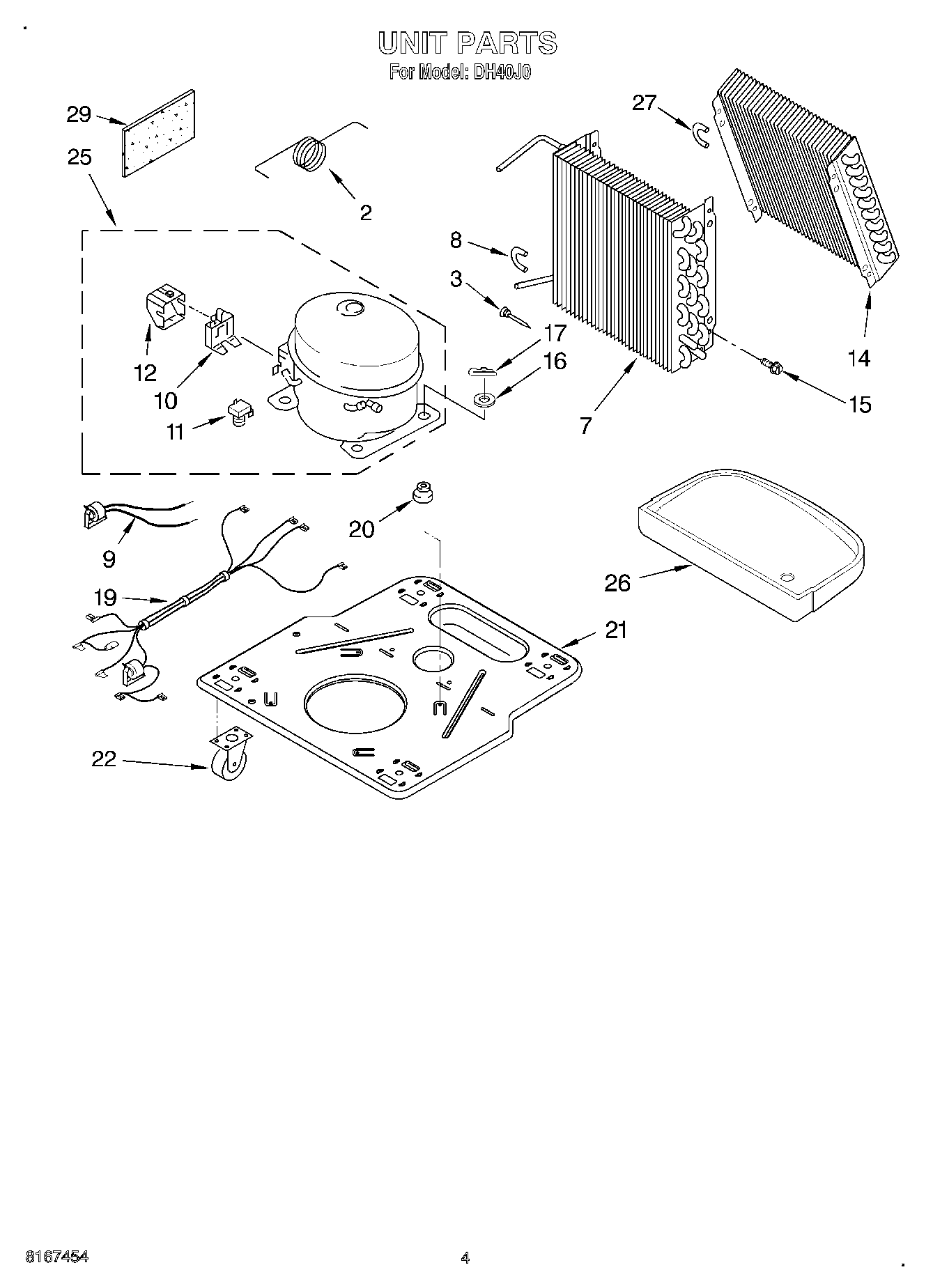

| 2 | Tube, Restrictor (Length 12.28``) |
| 3 | WP1162526 Whirlpool Air Conditioner Strainer |
| 7 | WPL 1168724 |
| 8 | Bend, Return Condenser (10) |
| 9 | WPL 1168777 |
| 10 | WPL 1182783 |
| 11 | Relay |
| 12 | WPL 1182781 |
| 14 | WPL 1168726 |
| 15 | WP489069 Whirlpool Compactor Screw |
| 16 | Washer |
| 17 | Clip, Compressor |
| 19 | WPL 1168701 |
| 20 | WPL 1168722 |
| 21 | WPL 1168654 |
| 22 | WPL 1164241 |
| 25 | WPL 1182779 |
| 26 | WPL 1168761 |
| 27 | Bend, Return Evaporator (4) |
| 29 | WPL 1162650 |
