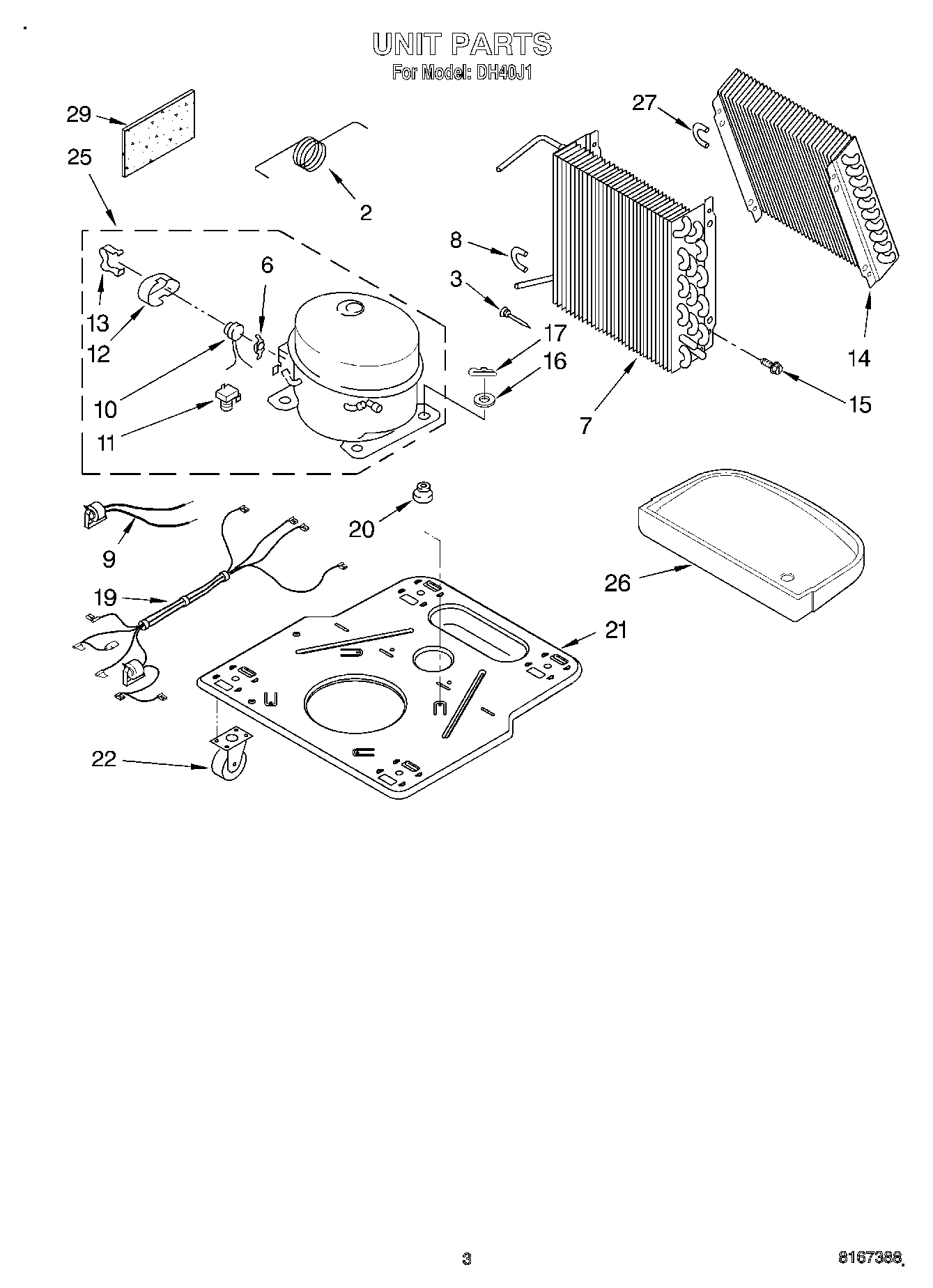

DH40J1 03 – UNIT

DH40J1 03 – UNIT

Written by

in

DH40J1 03 – UNIT

Products

PositionProduct
2Tube, Restrictor (Length 12.28“)
3WP1162526 Whirlpool Air Conditioner Strainer
6Spring, Overload
7WPL 1168724
8Bend, Return Condenser (10)
9WPL 1168777
10Overload
11Relay
12Cover, Terminal
13Retainer, Cover
14WPL 1168726
15WP489069 Whirlpool Compactor Screw
16Washer
17Clip, Compressor
19WPL 1168701
20WPL 1168722
21WPL 1168654
22WPL 1164241
25Compressor (Complete Assembly)
26WPL 1168761
27Bend, Return Evaporator (4)
29WPL 1162650
