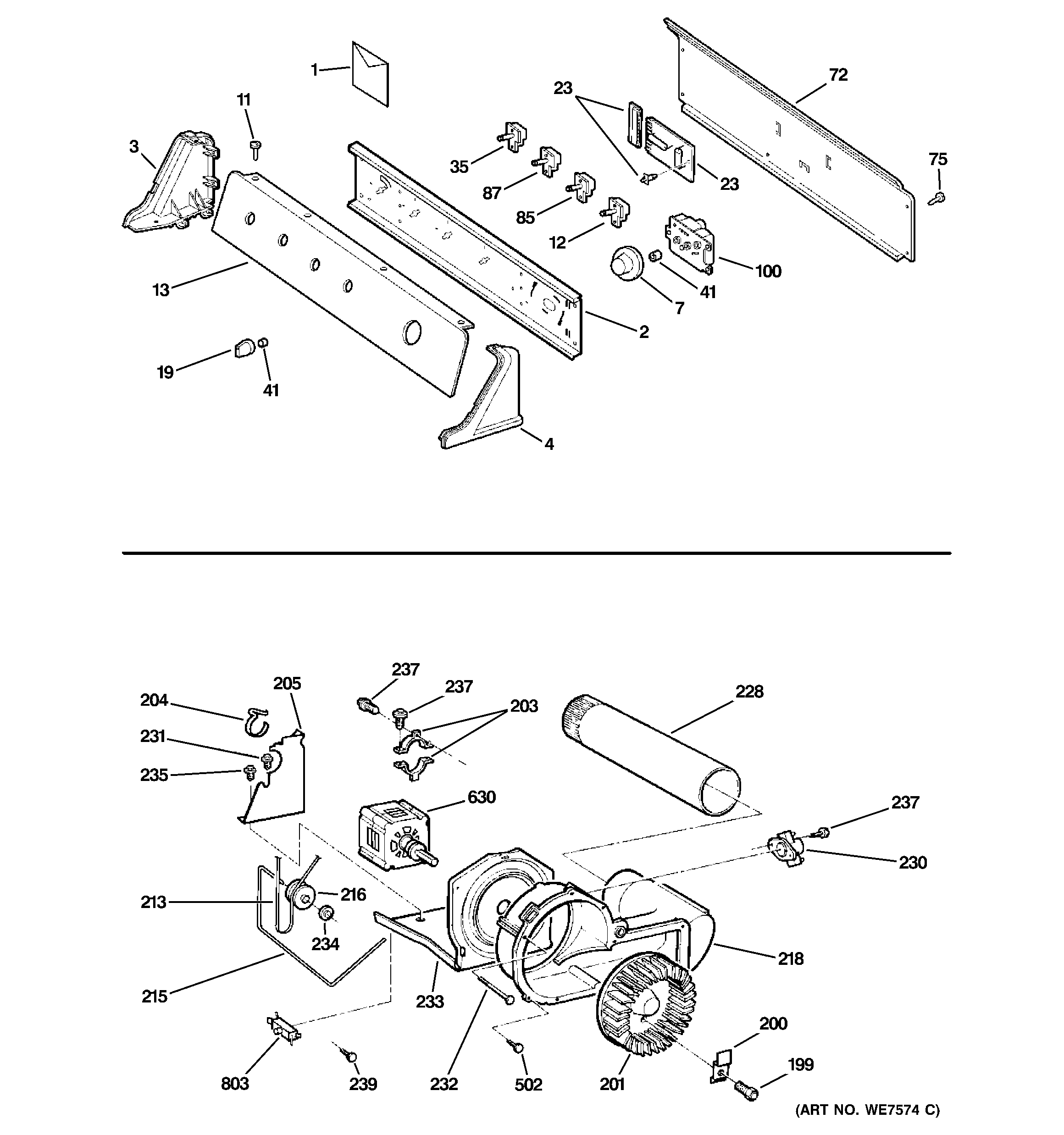

DHDSR48GF2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DHDSR48GF2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DHDSR48GF2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16133
1GEN 49-90236
1GEN 31-16077
2GEN WH46X10046
3GEN WE19M1418
4GEN WE19M1419
7WE1M654 GE Washer White Timer Knob
11SCREW 8-18 AB FLT 9/16 S
12GEN WE4M257
13GEN WE19M1417
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
23WE1M418 GE PC Support
23GEN WE04X10103
23GEN WE1M419
35WE4M519 GE Washer Start Switch Rotary
41GEN WE01X0980?
72GEN WE20X811
75WE2M173 GE Screw
85WE4M399 GE Rocker Switch
87GEN WE4M267
100WE4M189 GE Timer
199WE2M98 GE Screw
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
218BLOWER HOUSING
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE1M280 GE Screw
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
502WE2M174 GE Screw #10
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803WD21X10261 GE Dishwasher Interlock Switch
