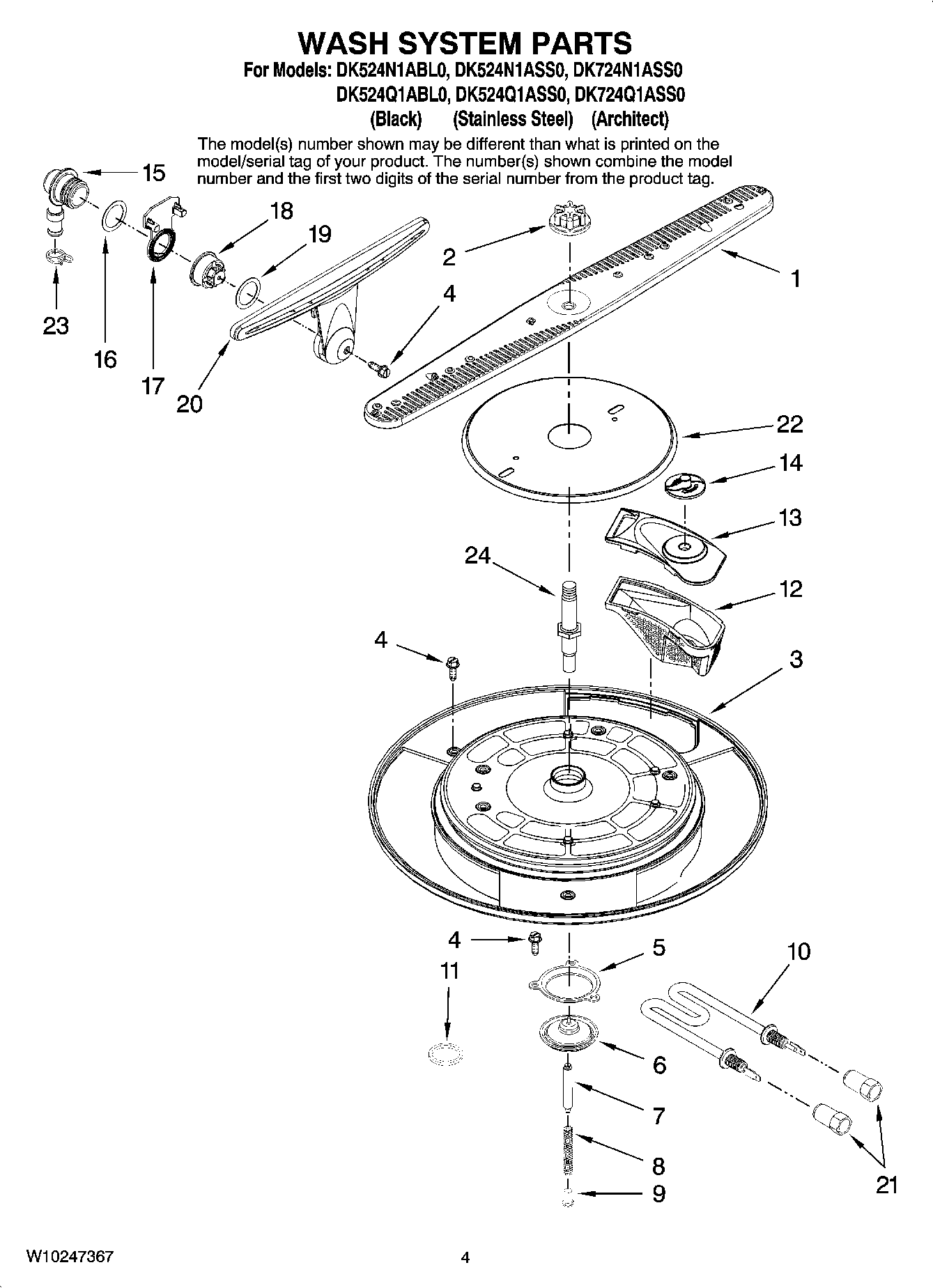

DK724Q1ASS0 03 – WASH SYSTEM PARTS

DK724Q1ASS0 03 – WASH SYSTEM PARTS

Written by

in

DK724Q1ASS0 03 – WASH SYSTEM PARTS

Products

PositionProduct
199003689 Whirlpool Dishwasher Wash Arm Assembly
3WPL W10190556
4WPL Y6918536
5WPL 99003720
6WPL 99003692
7WPL 99003772
8WPL 99003774
96-920340 Whirlpool Dishwasher Filter
10WPL 99003625
11WPL Y6920320
12WPL 99003777
1399003776 Whirlpool Dishwasher Coarse Cup
14WPL 99003778
15Y6920170 Whirlpool Dishwasher Upper Manifold
17WPL Y6920354
18WPL Y6920171
19WPW10286124 Whirlpool Dishwasher Seal
20W10162673 Whirlpool Dishwasher Manifold
21WP6-920168 Whirlpool Dishwasher Heater Nut
22WPL 99003704
23WP596669 Whirlpool Hose Clamp
24WPL 99003697
