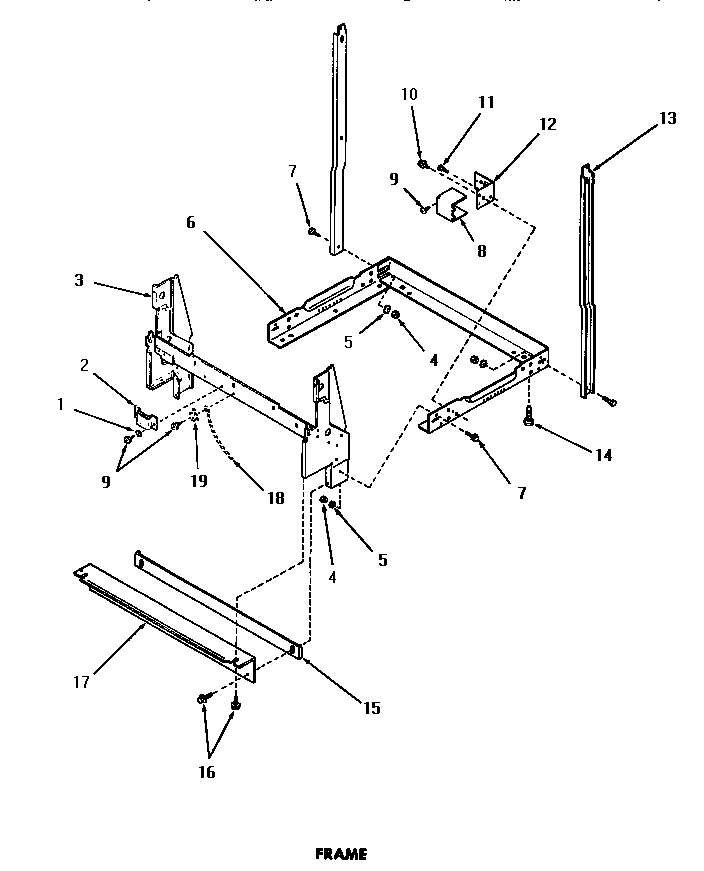

DL5600 05 – FRAME

DL5600 05 – FRAME

Written by

in

DL5600 05 – FRAME

Products

Position	Product
1	MAY Y20278
2	MAY M110101
3	MAY M110100
4	MAY 20275
5	MAY 91093
6	MAY M110107
7	MAY 02422
8	MAY M110108
9	MAY 51778
10	WP90767 Whirlpool Screw
11	MAY 25723
12	MAY M110248
13	MAY M110106
14	MAY M110105
15	MAY M110102
16	MAY 21933
17	MAY M110103
19	SEE NOTE GROUND WIRE, GREEN
