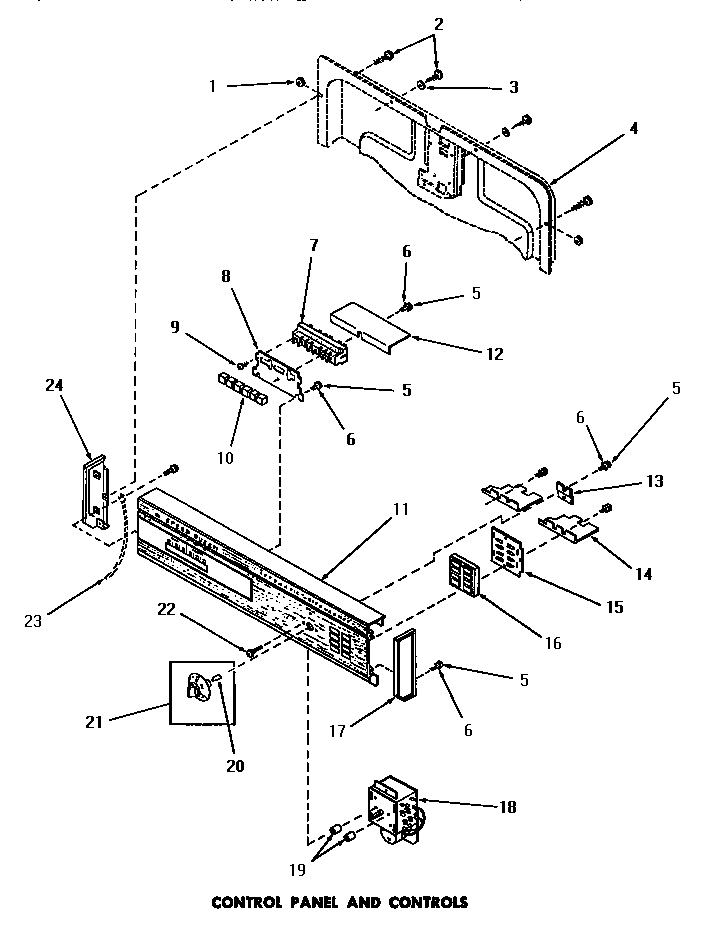

DL5700 03 – CONTROL PANEL & CONTROLS

Products

Position	Product
	ORDER GRAPHICS PANEL FROM THE SOURCE WHERE THE DRYER WAS PURCHASED. INCLUDE THECOMPLETE MODEL AND SERIAL NUMBERS WITH ORDER.
1	MAY M110134
2	MAY 65022
3	MAY 21147
5	MAY 51778
6	MAY Y20278
7	MAY M110135
8	MAY M110129
9	MAY 51782
10	MAY M110126
11	MAY M110000
12	MAY M110128
13	MAY M110131
14	MAY M110127
15	MAY M110130
16	MAY M110132
17	MAY M110123
18	MAY M110124
19	MAY M110136
20	MAY M110202
21	MAY M110121
22	MAY M110146
23	SEE NOTE GROUND WIRE, GREEN
24	MAY M110122
