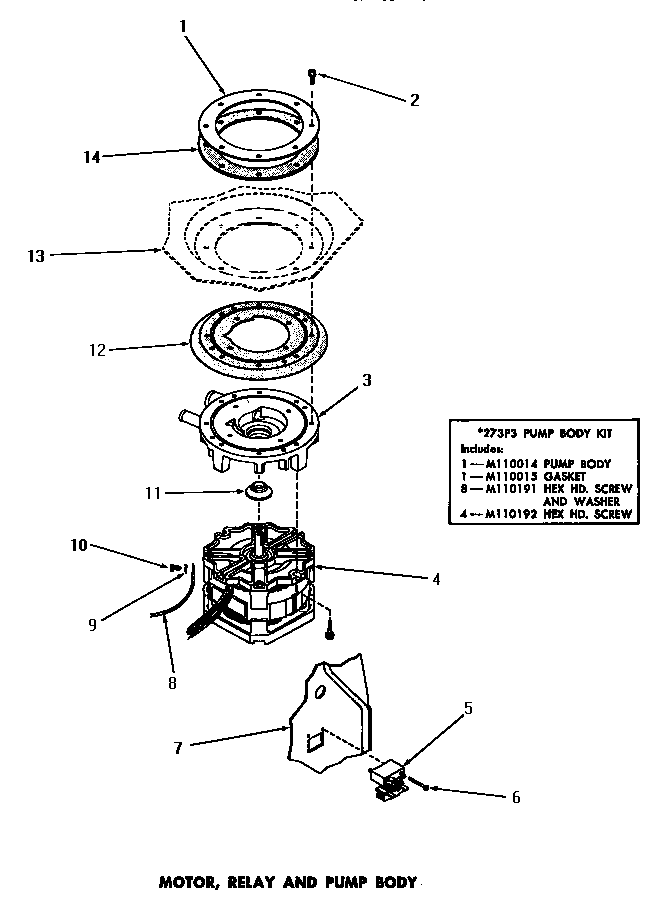

DL5700 11 – MOTOR, RELAY & PUMP BODY

Products

Position	Product
1	MAY M110017
2	MAY M110044
2	MAY M110191
3	MAY M110014
3	MAY 273P3
4	MAY M110010
5	MAY M110011
6	MAY M110139
9	MAY Y20278
10	WP90767 Whirlpool Screw
11	MAY M110012
12	MAY M110015
13	SEE NOTE GROUND WIRE, GREEN
14	MAY M110016
