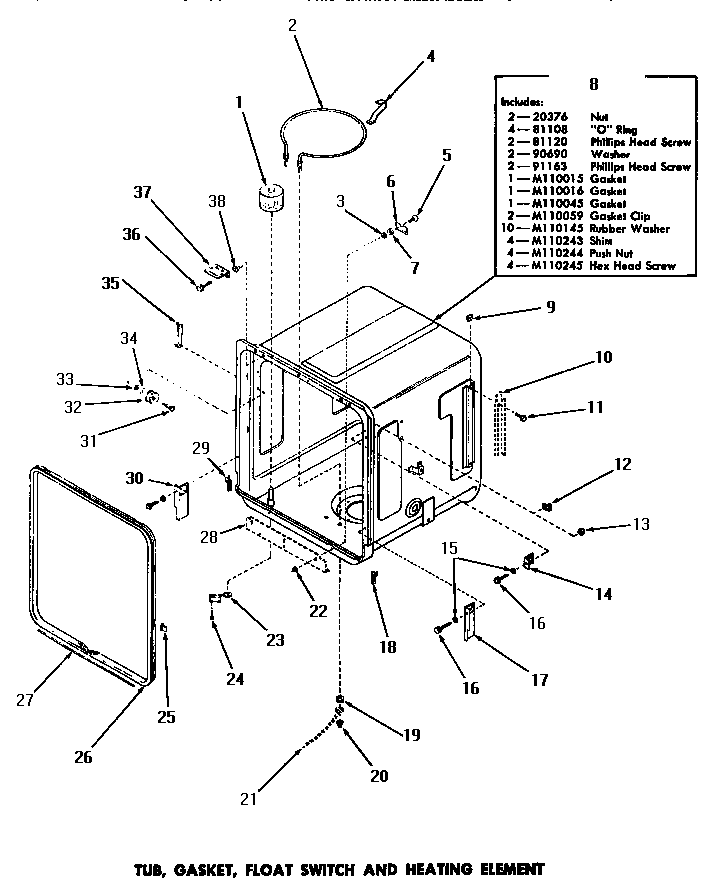

DL5700 15 – TUB, GASKET, FLOAT SWITCH & HEATING ELEM
Written by
in
DL5700 15 – TUB, GASKET, FLOAT SWITCH & HEATING ELEM
Products
Position
Product
1
MAY M110048
2
MAY M110027
4
MAY M110043
5
MAY 81120
6
MAY M110059
8
MAY M110047
9
MAY Y81061
11
MAY 02422
12
MAY M100017
14
MAY M110055
15
MAY 21643
16
MAY 51924
17
MAY M110240
18
MAY M110053
19
MAY M110050
20
MAY M110051
22
MAY 20376
23
MAY M110049
24
MAY M110147
25
MAY M110054
26
MAY M110045
27
MAY M110046
28
SEE NOTE GROUND WIRE, GREEN
29
MAY M110052
30
MAY M110239
31
MAY M110056
32
MAY M110057
33
MAY M110145
34
MAY 90690
35
MAY M110058
36
MAY M110245
37
MAY M110060
38
MAY M110244
←
