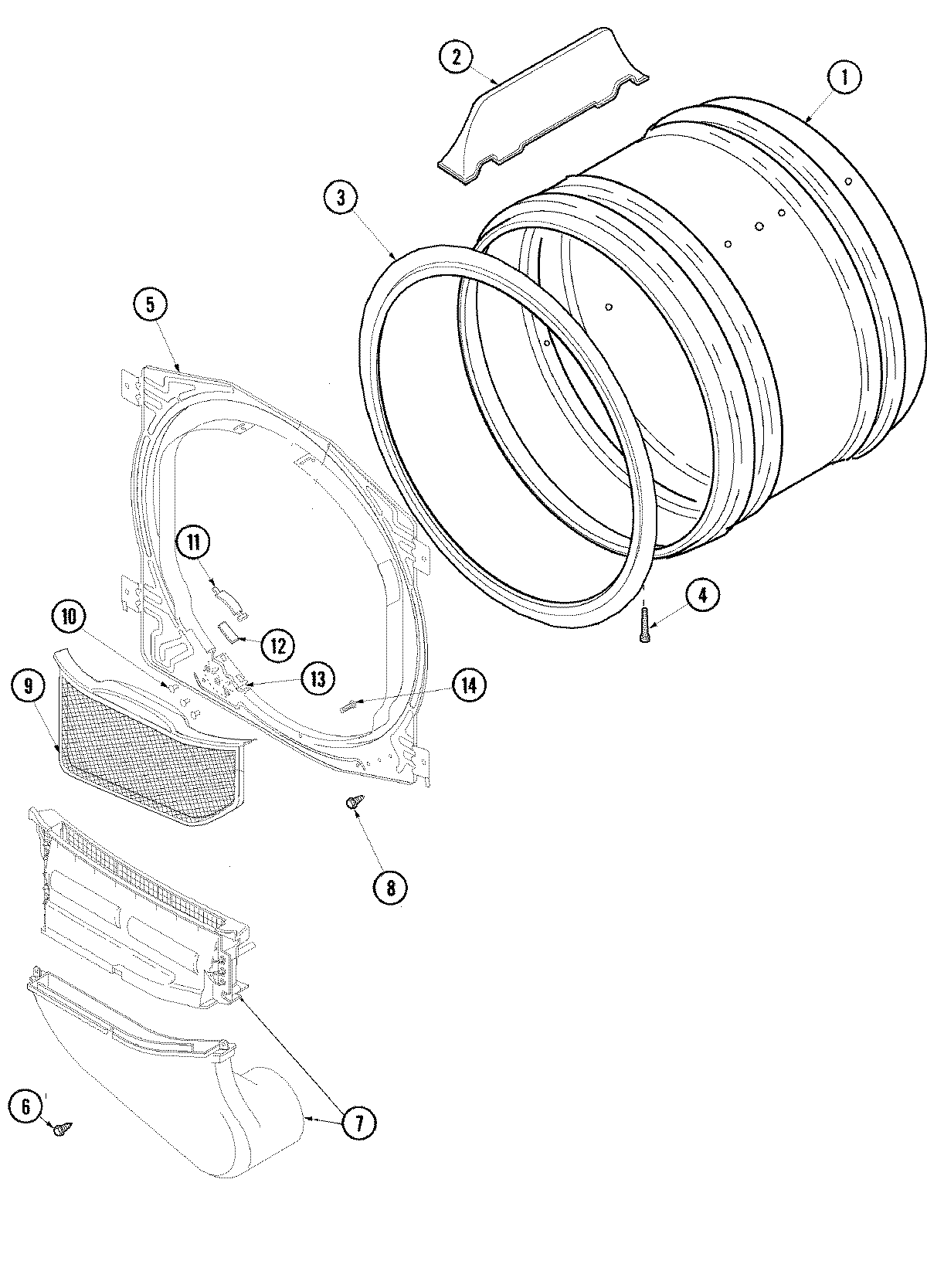

DLE330RAW 04 – FRONT BULKHEAD, AIR DUCT & CYLINDER

Written by

Products

Position	Product
1	MAY 504467WP
2	MAY 503703
3	WP37001132 Whirlpool Felt Seal
4	MAY Y62588
5	MAY 503756W
6	MAY 501285
7	MAY Y504806
8	WP3390631 Whirlpool Screw
9	MAY Y503627
10	WP489128 Whirlpool Refrigerator Screw
11	MAY 40116501
12	MAY 500092
13	WP37001036 Whirlpool Glide Bracket
14	MAY 500226
