DLE330RAW 06 – REAR BULKHEAD, AIR DUCT, HEATER & ROLLER

DLE330RAW 06 – REAR BULKHEAD, AIR DUCT, HEATER & ROLLER

Written by

in

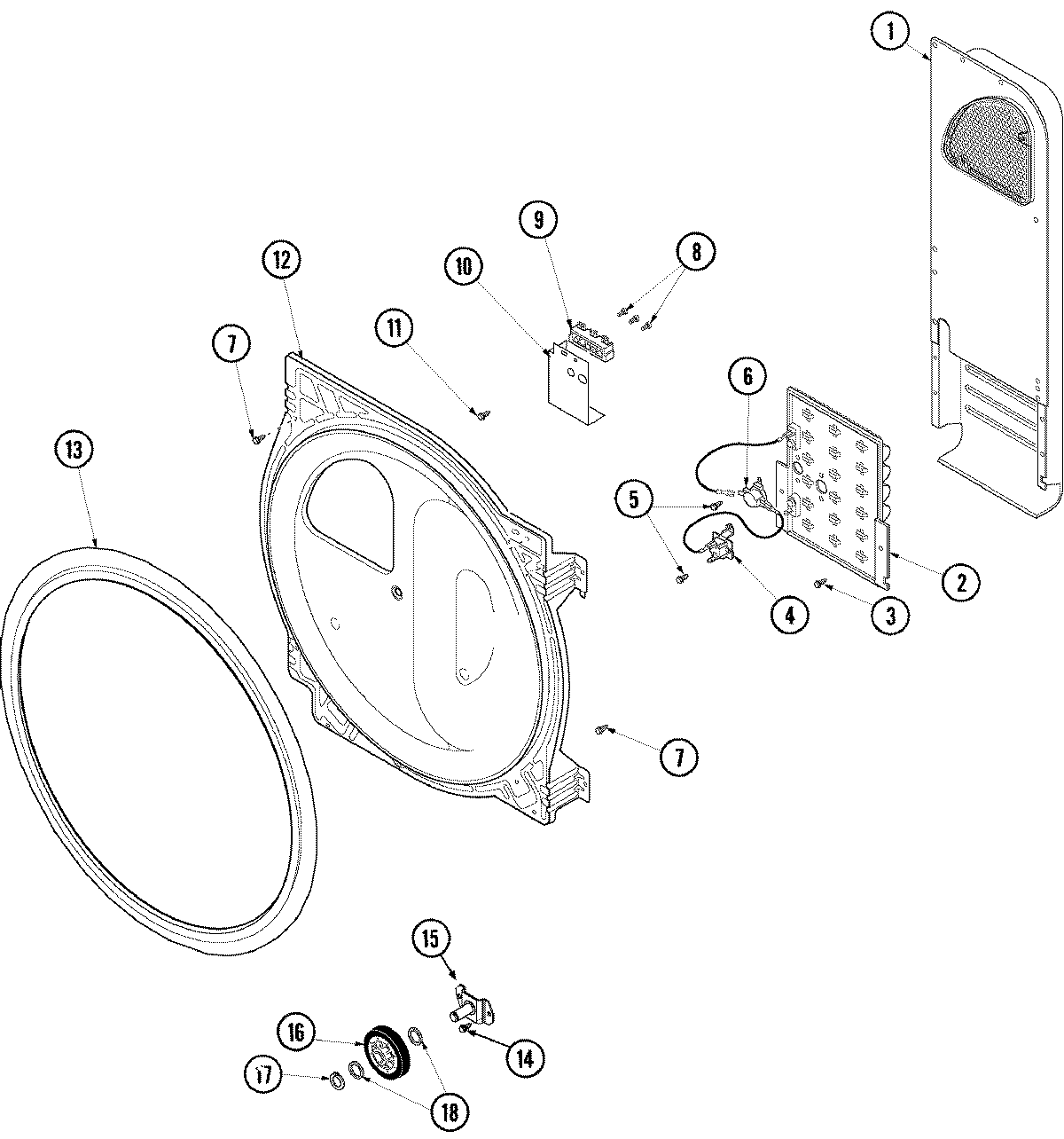

DLE330RAW 06 – REAR BULKHEAD, AIR DUCT, HEATER & ROLLER

Products

PositionProduct
1MAY 503605
2WPY503978 Whirlpool Heating Element
4MAY 40113801
5WP3177991 Whirlpool Screw
6WPW10116735 Whirlpool Dryer High Limit Thermostat
7MAY 20530
8MAY Y61199
9MAY 61923
10MAY Y504185
11MAY 501285
12MAY 502614WP
13WP37001132 Whirlpool Felt Seal
14WP3390631 Whirlpool Screw
15MAY 500062
16MAY 500214
17MAY 23748
18MAY 52549
