DLE3500W 1

Products

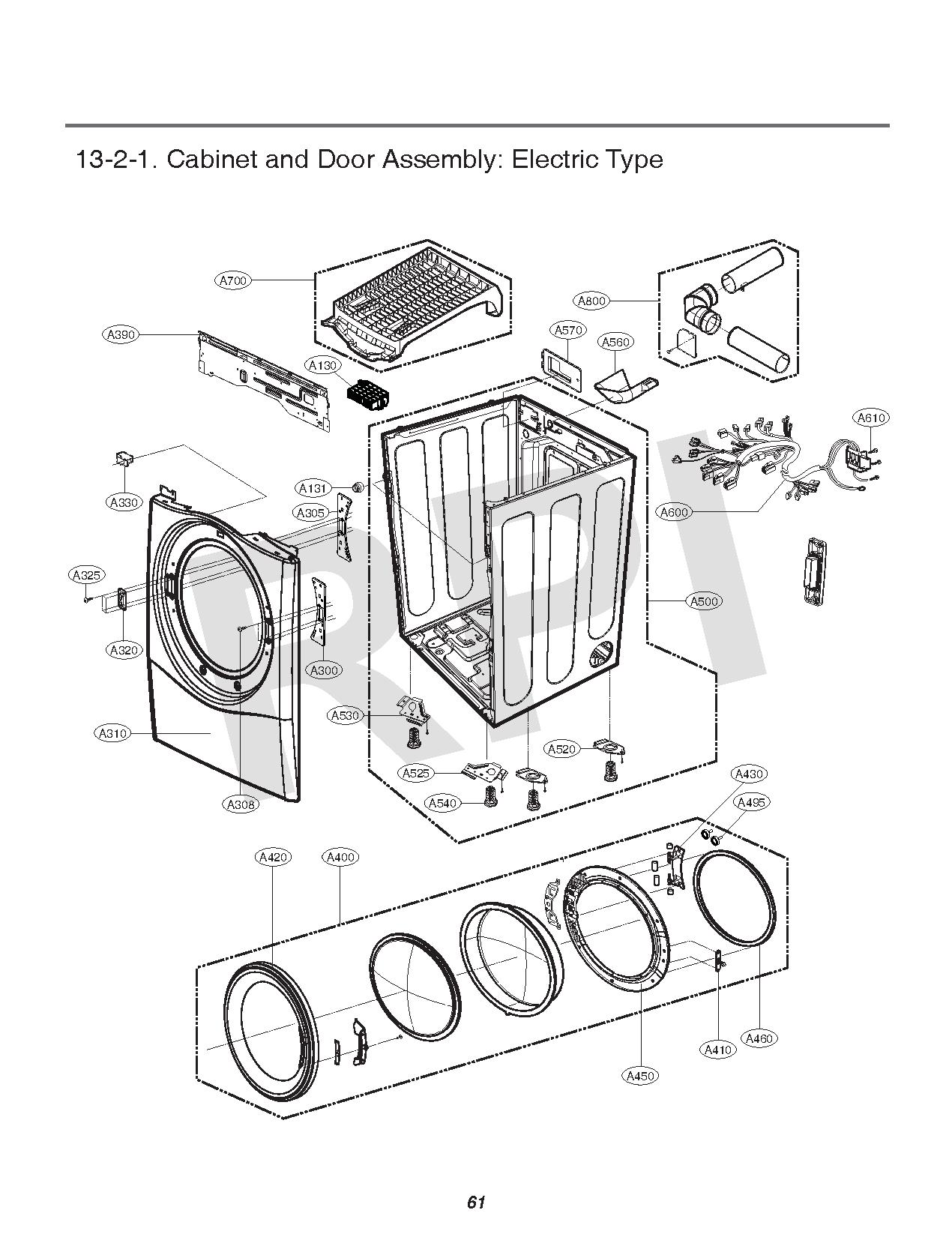

Position	Product
A131	AEJ33026601 LG Holder Assembly
A540	4778EL3001B LG Dryer Leveling Leg
A570	3550EL3002A LG Safety Cover
A610	383EEL9001H LG Assembly Parts
A700	3750EL1001A LG Dryer Drying Rack (27")
A800	3911EZ9131X LG Dryer Stainless Steel Side Venting Kit
A390	ADV33609806 LG Assembly Frame
A450	MDQ58083302 LG Door Frame Assembly (Inner)
A560	3550EL3007D LG Cover Guide
A400	ADC72301112 LG Door Assembly
A420	MDQ58083003 LG Outer Door Frame Assembly
A500	ABJ34559226 LG Cabinet Assembly
A130	EBR85130511 LG Dryer Main PCB Assembly
A530	4810EL3009B LG Dryer Leveling Leg Bracket
A525	4810EL3009A LG Dryer Base Bracket
A300	MAZ47156202 LG Hinge Bracket
A305	MAZ47156203 LG Dryer Door Hinge Bracket
A308	1APF0402608 LG Laptop Screw
A310	ACQ72301002 LG Cabinet Cover Assembly
A320	4027EL1001A LG Dryer Door Latch Catch
A325	1MTC0402632 LG Machine Screw
A330	6601EL3001A LG Dryer Door Switch Assembly
A410	4026EL3007B LG Locker Door Latch Hook
A430	4774EL2001A LG Dryer Door Hinge
A460	MDS47263101 LG Dryer Door Gasket
A495	MCQ62786001 LG Damper
A520	4810EL3001B LG Dryer Base Bracket
A600	EAD60843548 LG Multi Harness
