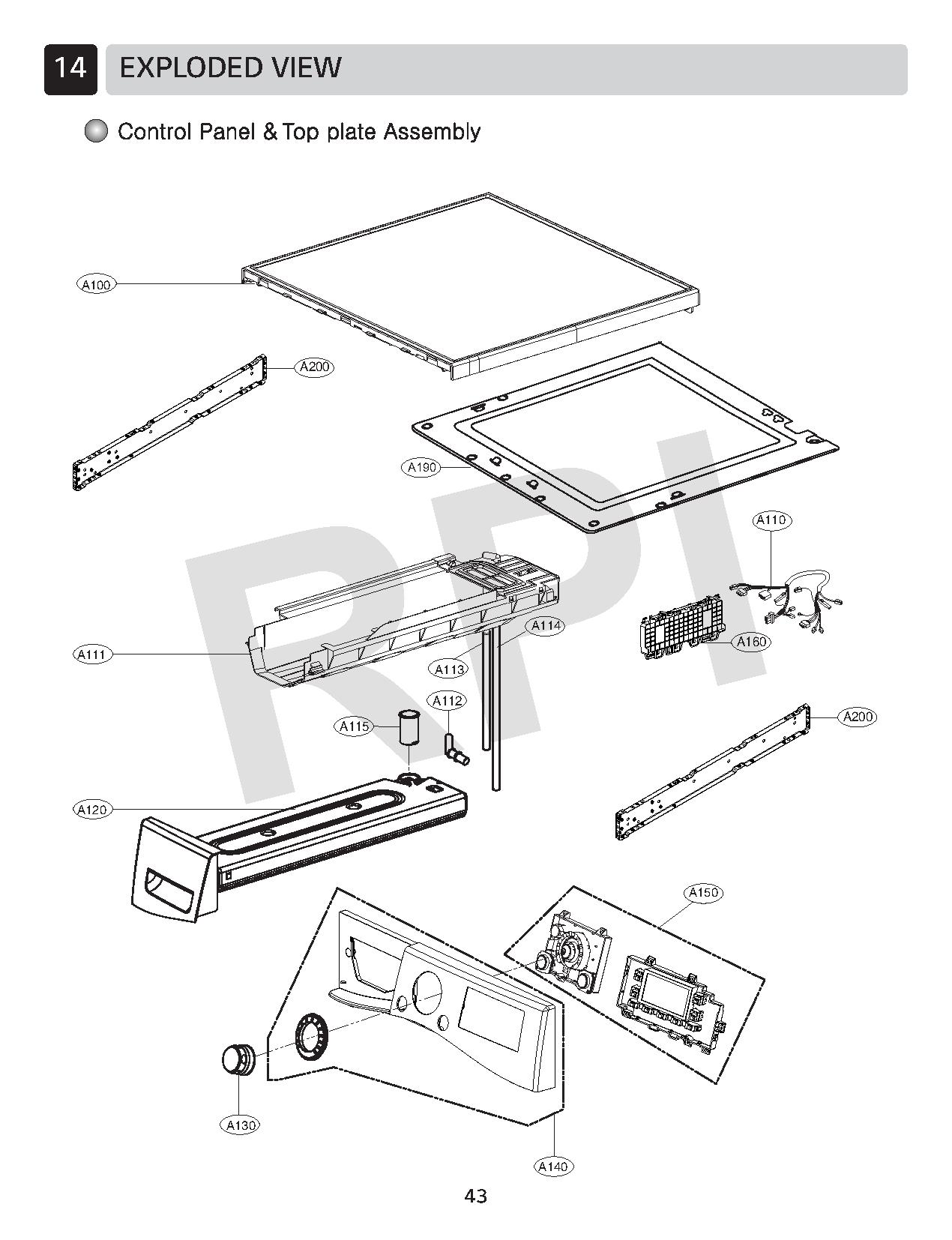

PositionProduct
A100Plate Assembly,Top
A190Cover Assembly,Safety
A160EBR61144805 LG Main PCB Assembly
A150EBR79777512 LG Display Power Control Board Assembly
A140AGL75992533 LG Control Panel Assembly
A130Knob,Rotary
A120AGL74254767 LG Drawer Panel Assembly
A115Guide,Water
A1145214EL3001E LG Pump Hose
A113MEJ54140801 LG Pump Hose
A1124932EL3001A LG Hose Connector
A111ACZ55947005 LG Dispenser Assembly
A110EAD50732602 LG Multi Harness
A2003210EL1003A LG Top Frame
