DLEX3370R 1

DLEX3370R 1

Written by

in

DLEX3370R 1

Products

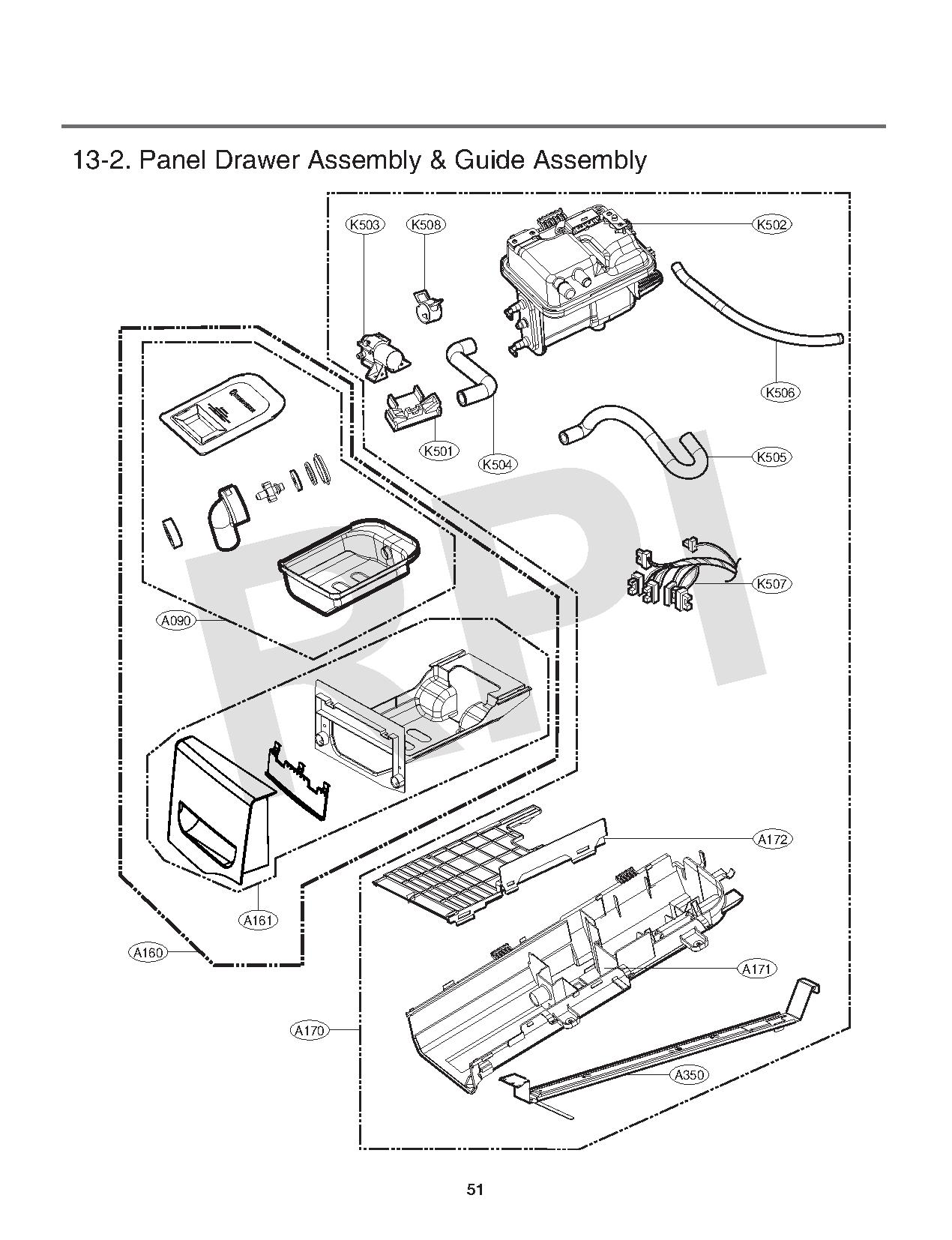

PositionProduct
A1404941ER3005D LG Knob Assembly
K507EAD39301901 LG Multi Harness
K5084861FR3068A LG Washer Hose Clamp
A130AGM75370001 LG Parts Assembly
A120EBR78914105 LG Refrigerator Power Control Board Display Assembly
A110AGL73754036 LG Control Panel Assembly
A210AGU30071287 LG Top Plate Assembly
A2113300EL2001G LG Upper Plate
A160AGL73852612 LG Drawer Panel Assembly
K506MEJ38393301 LG Pump Hose
K505MEJ38393101 LG Pump Hose
K504MEJ38393201 LG Pump Hose
A090AJL34327901 LG Dryer Water Tank Assembly
A170AEC36177508 LG Guide Assembly
A171MEA38595802 LG Drawer Guide
A172MCK38392501 LG Guide Cover
A350Frame,Body
K501MCQ38393001 LG Damper
K5023111ER1002R LG Generator Assembly
K503EAU37148701 LG Dryer DC Motor and Pump Assembly
A161AGL73852512 LG Drawer Assembly Panel
