DLEX3370V 1

Products

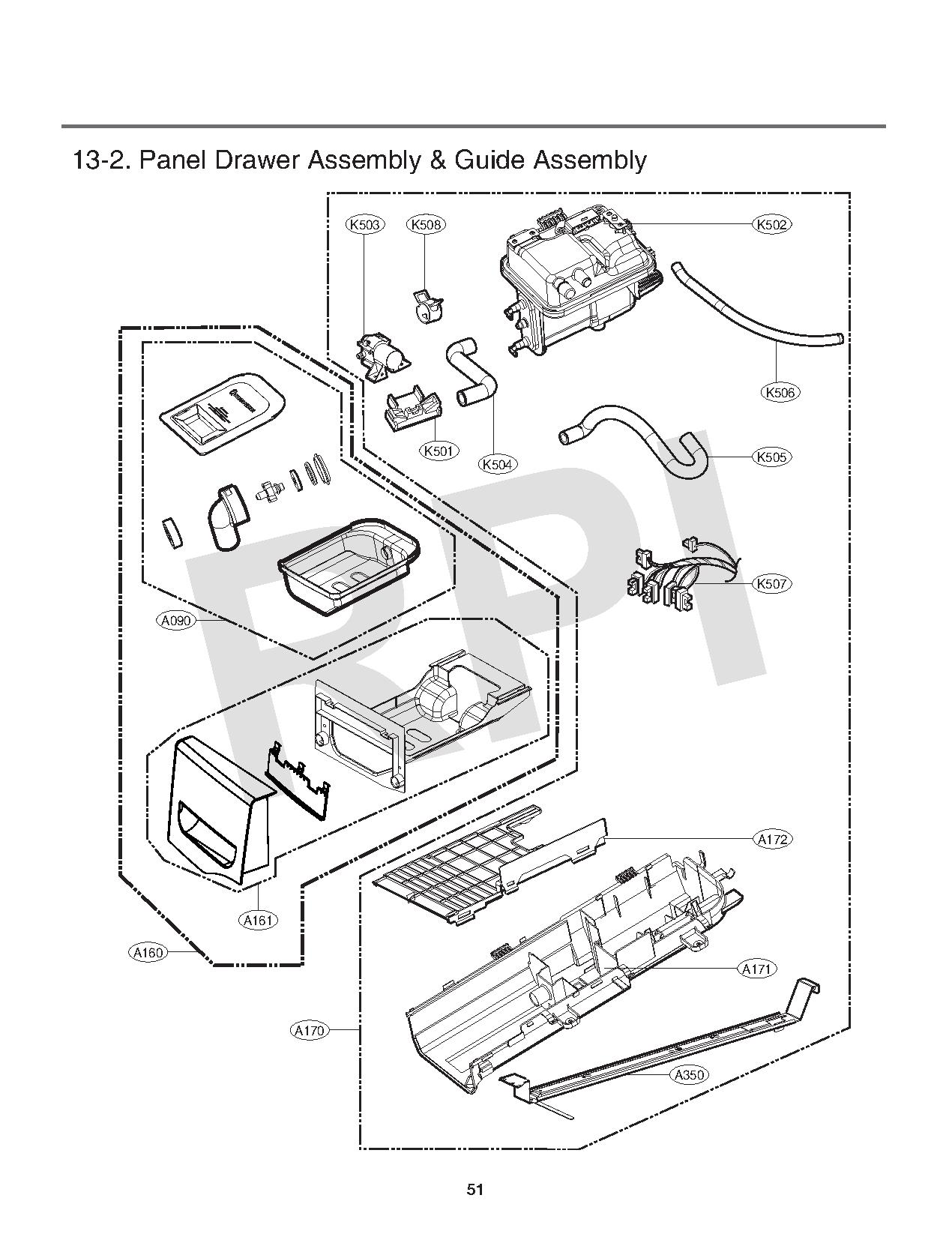

PositionProduct
A1404941ER3005D LG Knob Assembly
K507EAD39301901 LG Multi Harness
K5084861FR3068A LG Washer Hose Clamp
A150AGM75370001 LG Parts Assembly
A120EBR78914105 LG Refrigerator Power Control Board Display Assembly
A2113300EL2001C LG Upper Plate
A110AGL73754032 LG Control Panel Assembly
A210AGU30071289 LG Top Plate Assembly
A160AGL73852611 LG Assembly Drawer Panel
K506MEJ38393301 LG Pump Hose
K505MEJ38393101 LG Pump Hose
K504MEJ38393201 LG Pump Hose
A090AJL34327901 LG Dryer Water Tank Assembly
A170AEC36177508 LG Guide Assembly
A171MEA38595802 LG Drawer Guide
A172MCK38392501 LG Guide Cover
A350Frame,Body
K501MCQ38393001 LG Damper
K5023111ER1002R LG Generator Assembly
K503EAU37148701 LG Dryer DC Motor and Pump Assembly
A161AGL73852511 LG Drawer Assembly Panel
