DLEX3370W 3

DLEX3370W 3

Written by

in

DLEX3370W 3

Products

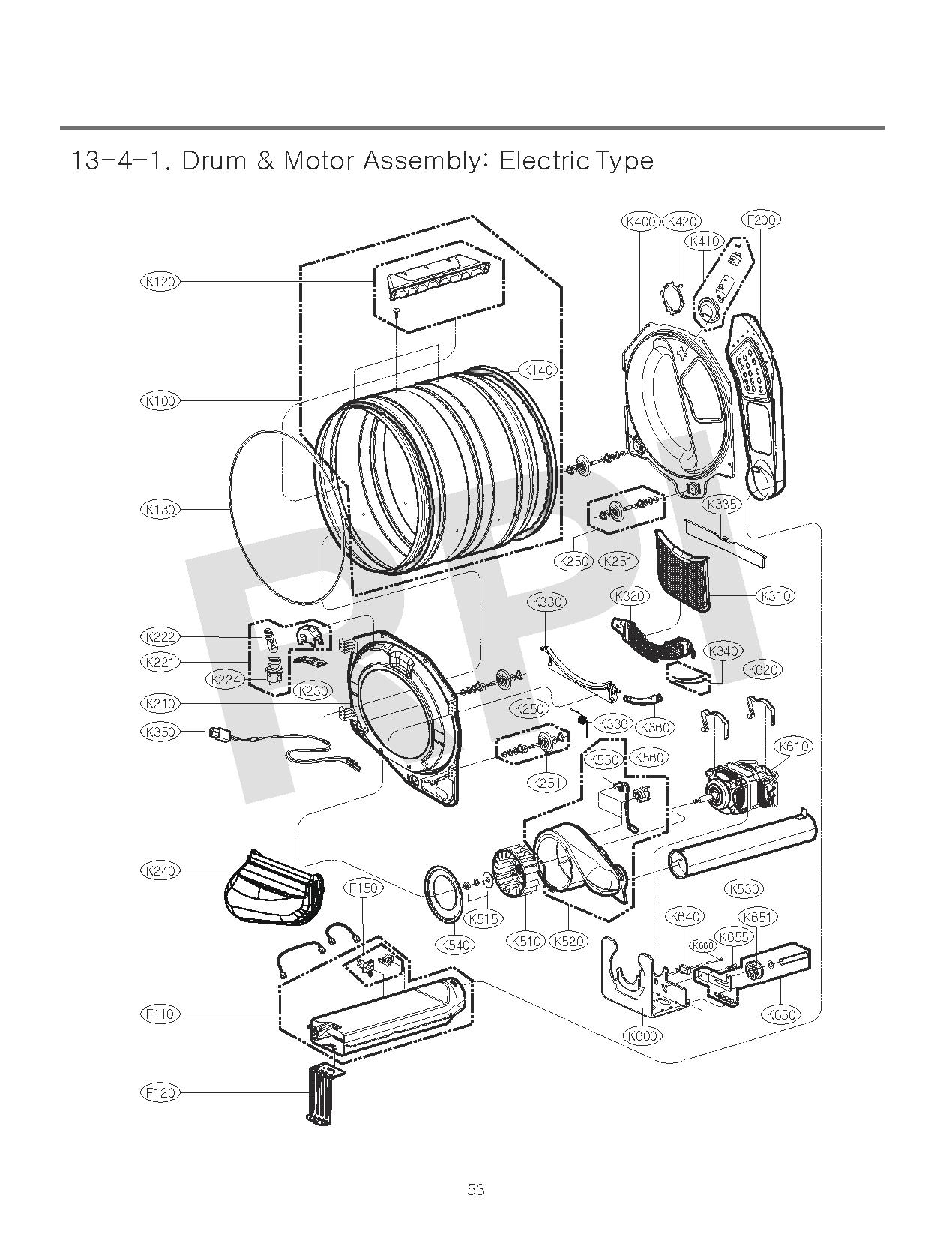

PositionProduct
F110HEATER ASSY
K310FILTER ASSY-LINT
K2524W50100F LG Customized
K2514581EL3001M LG Roller Assembly
K2504581EL2002H LG Dryer Drum Roller Assembly
K2405209EL1002C LG Duct Assembly
K2303550EL2001A LG Dryer Lamp Bulb Shield Cover
K2244930EL3008A LG Holder
K2226913EL3001E LG Dryer Incandescent Lamp
K2216913EL3002K LG Dryer Incandescent Lamp
K210AJQ73594004 LG Drum Tub Assembly
K1451FTF0503507 LG Screw Laptite
K1404036EL3001A LG Dryer Drum Felt Gasket
K1304400EL2001A LG Dryer Drum Drive Belt
K1204432EL1002A LG Dryer Drum Baffle
K1003045EL1002P LG Dryer Drum Tub Assembly
F2005209EL1001C LG Duct Assembly
K320MCK49049101 LG Dryer Lint Screen Cover Guide
K330MEA49050001 LG Replacement Filters Dryer Lint Screen Guide
A420MDQ58083002 LG Door Frame Outer
A400ADC72301102 LG Dryer Door Assembly
K520MEK37661701 LG Blower Housing
K3381SZZEL2001D LG Customized Screw
K5506323EL2001B LG Dryer Thermistor Assembly
K5404975EL3001A LG Guide Assembly
K5305209EL1006A LG Dryer Metal Duct
K515HOUSING- BLOWER + HARDWARE
K5105835EL1002A LG Dryer Blower Fan Assembly
K410AGB34327803 LG Dryer Steam Nozzle Assembly
K4003044EL0002T LG Rear Drum Tub
K3604930EL2004D LG Dryer Moisture Sensor Housing
K3506631EL3003B LG Dryer Wiring Harness
K3406500EL3001A LG Dryer Moisture Sensor
K3364970EL4002C LG Dryer Distortion Spring
K335MCK66787901 LG Dryer Lint Filter Screen Cover
F150383EEL9001C LG Parts Assembly
F140THERMOSTAT ASSY
A3306601EL3001A LG Dryer Door Switch Assembly
A3251MTC0402632 LG Machine Screw
A3204027EL1001A LG Dryer Door Latch Catch
A310ACQ72301002 LG Cabinet Cover Assembly
A3081APF0402608 LG Laptop Screw
A305MAZ47156203 LG Dryer Door Hinge Bracket
A300MAZ47156202 LG Hinge Bracket
A131AEJ33026601 LG Holder Assembly
K6601TPL0303218 LG Tapping Screw
K6551SZZEL3001A LG Customized Screw
K6514560EL3001A LG Dryer Idler Pulley Wheel
K650PULLEY ASSY-MOTOR
K640EBF61734701 LG Dryer Micro Switch
K6204860EL3001A LG Dryer Blower Motor Clamp
K6104681EL1008A LG Dryer Blower Drive Motor
K600MAZ66065301 LG Bracket Motor
A390ADV33609810 LG Frame Assembly
A4104026EL3007B LG Locker Door Latch Hook
F1306931EL3003D LG Dryer High-Limit Thermal Fuse Thermostat
F1204810EL1007A LG Heater Bracket
A8003911EZ9131X LG Dryer Stainless Steel Side Venting Kit
A7003750EL1001A LG Dryer Drying Rack (27")
A610383EEL9001H LG Assembly Parts
A600EAD60843528 LG Multi Harness
A590MCK62423301 LG Safety Cover
A5703550EL3002A LG Safety Cover
A5404778EL3001B LG Dryer Leveling Leg
A5304810EL3009B LG Dryer Leveling Leg Bracket
A5254810EL3009A LG Dryer Base Bracket
A5204810EL3001B LG Dryer Base Bracket
A500ABJ34559249 LG Cabinet Assembly
A460MDS47263101 LG Dryer Door Gasket
A450MDQ58083301 LG Inner Door Frame
A4304774EL2001A LG Dryer Door Hinge
K5606931EL3002M LG Dryer Thermostat
