DLEX3700V 1

DLEX3700V 1

Written by

in

DLEX3700V 1

Products

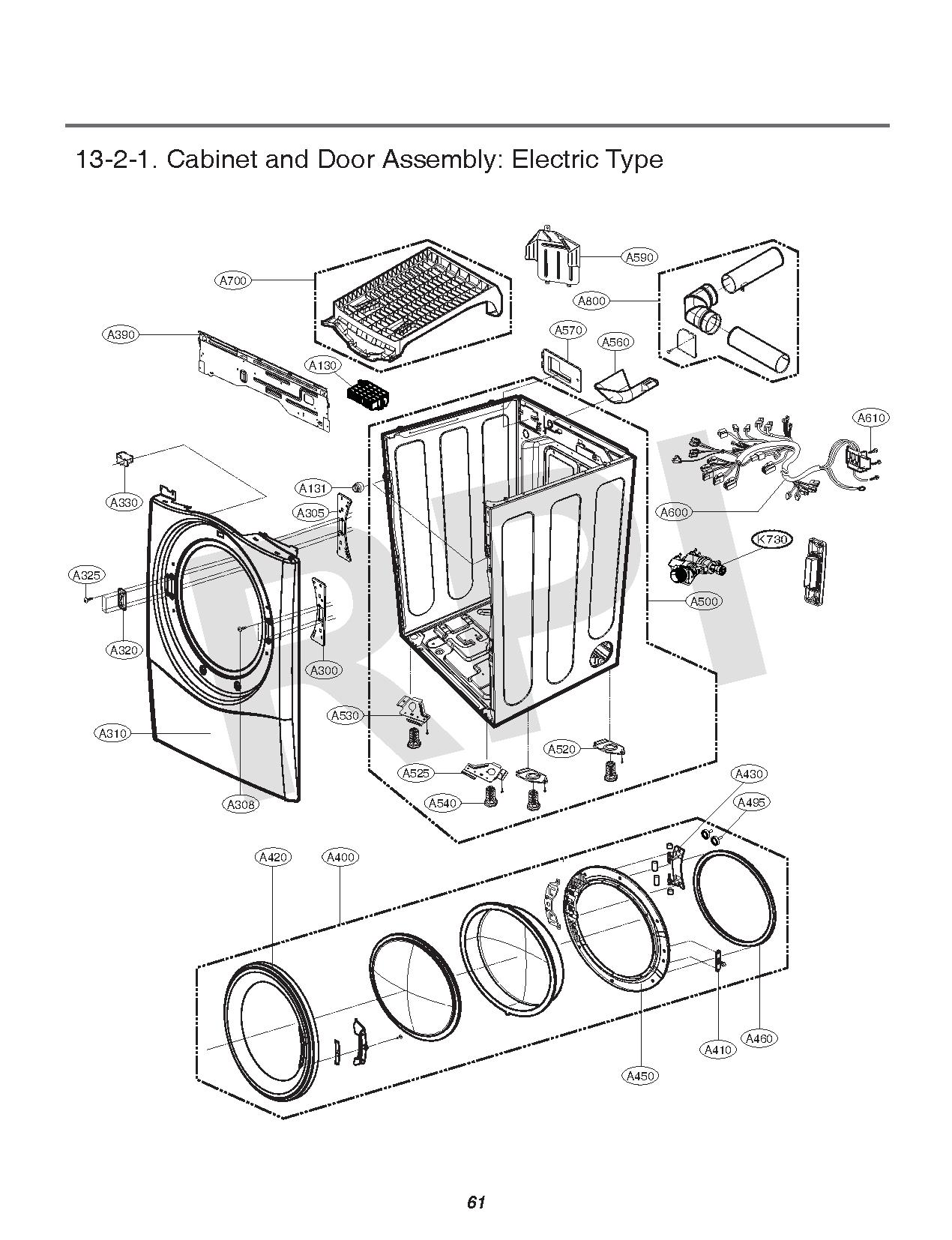

PositionProduct
A131AEJ33026601 LG Holder Assembly
A590MCK62423301 LG Safety Cover
A610383EEL9001H LG Assembly Parts
A7003750EL1001A LG Dryer Drying Rack (27")
A8003911EZ9131X LG Dryer Stainless Steel Side Venting Kit
A420MDQ58083002 LG Door Frame Outer
A130PCB ASSY-MAIN
A390ADV33609806 LG Assembly Frame
A400ADC72301111 LG Door Assembly
A450MDQ58083302 LG Door Frame Assembly (Inner)
A5603550EL3007D LG Cover Guide
A600EAD60843547 LG Multi Harness
K730AJU73432602 LG Inlet Valve Assembly
A310ACQ72301001 LG Cabinet Cover Assembly
A5703550EL3002A LG Safety Cover
A5404778EL3001B LG Dryer Leveling Leg
A300MAZ47156202 LG Hinge Bracket
A305MAZ47156203 LG Dryer Door Hinge Bracket
A3081APF0402608 LG Laptop Screw
A3204027EL1001A LG Dryer Door Latch Catch
A3251MTC0402632 LG Machine Screw
A3306601EL3001A LG Dryer Door Switch Assembly
A4104026EL3007B LG Locker Door Latch Hook
A4304774EL2001A LG Dryer Door Hinge
A460MDS47263101 LG Dryer Door Gasket
A495MCQ62786001 LG Damper
A5204810EL3001B LG Dryer Base Bracket
A5254810EL3009A LG Dryer Base Bracket
A5304810EL3009B LG Dryer Leveling Leg Bracket
A500ABJ34640618 LG Cabinet Assembly
