DLEX5000V 2

DLEX5000V 2

Written by

in

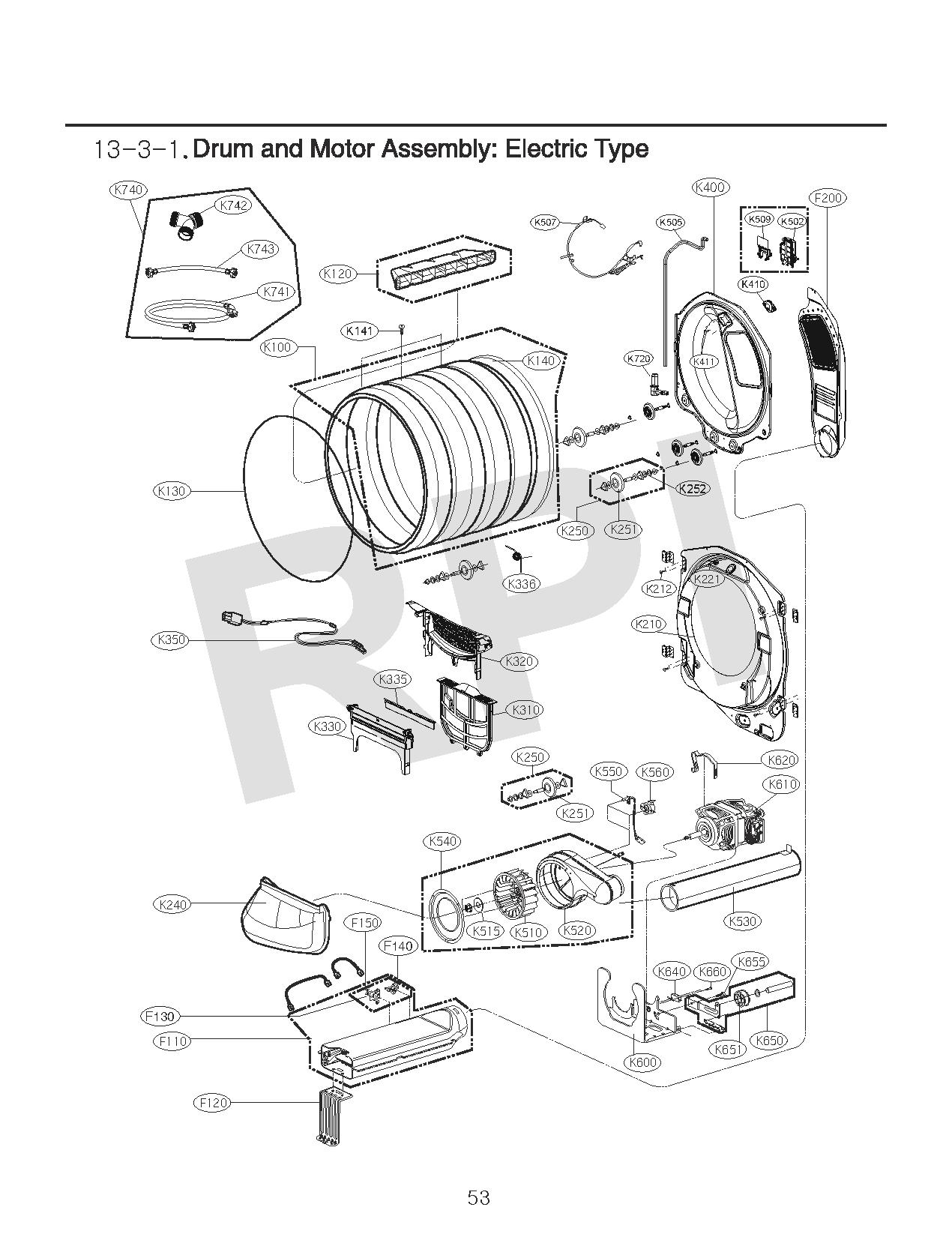

DLEX5000V 2

Products

PositionProduct
K7435215FD3715W LG Inlet Hose
K505MEJ62404702 LG Inlet Hose Assembly
K502ADZ73410101 LG Dryer Generator Assembly
K4111SZZEL2001A LG Screw Customized
K410MCR65109901 LG Decor Guard
K221EAQ61400801 LG LED Lamp
K7415215FD3715V LG Washer Cold Water Inlet Fill Hose Blue
K720MCD63206801 LG Nozzle Connector
F110HEATER ASSY
K520MEK37661701 LG Blower Housing
K5506323EL2001B LG Dryer Thermistor Assembly
K507EAD39301910 LG Multi Harness
K210MJT62763001 LG Front Tub Drum
K2121SBF0402618 LG Taptite Screw
K742MCD63306801 LG Dryer Pipe Connector
K740AAA75232311 LG Accessory Assembly
K5404975EL3001B LG Guide Assembly
K509MAZ64606101 LG Frame Bracket
K3506631EL3003F LG Harness Assembly
K335MCK68509901 LG Cover Filter
K330MEA63930901 LG Filter Guide
K320383EEL9001N LG Assembly Parts
K310ADQ73373201 LG Dryer Lint Screen Filter Replacement Assembly
K240ADJ73372401 LG Duct Assembly
K5305209EL1006A LG Dryer Metal Duct
K515HOUSING- BLOWER + HARDWARE
K5105835EL1002A LG Dryer Blower Fan Assembly
F1306931EL3003D LG Dryer High-Limit Thermal Fuse Thermostat
F1204810EL1007A LG Heater Bracket
K6601TPL0303218 LG Tapping Screw
K6551SZZEL3001A LG Customized Screw
K6514560EL3001A LG Dryer Idler Pulley Wheel
K650PULLEY ASSY-MOTOR
K640EBF61734701 LG Dryer Micro Switch
K6204860EL3001A LG Dryer Blower Motor Clamp
K6104681EL1008A LG Dryer Blower Drive Motor
K600MAZ66065301 LG Bracket Motor
F140THERMOSTAT ASSY
F150383EEL9001C LG Parts Assembly
F2005209EL1001C LG Duct Assembly
K4003044EL0002T LG Rear Drum Tub
K3364970EL4002C LG Dryer Distortion Spring
K2524W50100F LG Customized
K2514581EL3001M LG Roller Assembly
K2504581EL2002H LG Dryer Drum Roller Assembly
K1411FTF0503507 LG Screw Laptite
K1404036EL3001A LG Dryer Drum Felt Gasket
K1304400EL2001A LG Dryer Drum Drive Belt
K1204432EL1002A LG Dryer Drum Baffle
K1003045EL1002P LG Dryer Drum Tub Assembly
K5606931EL3002M LG Dryer Thermostat
