DLEX5780WE 3

DLEX5780WE 3

Written by

in

DLEX5780WE 3

Products

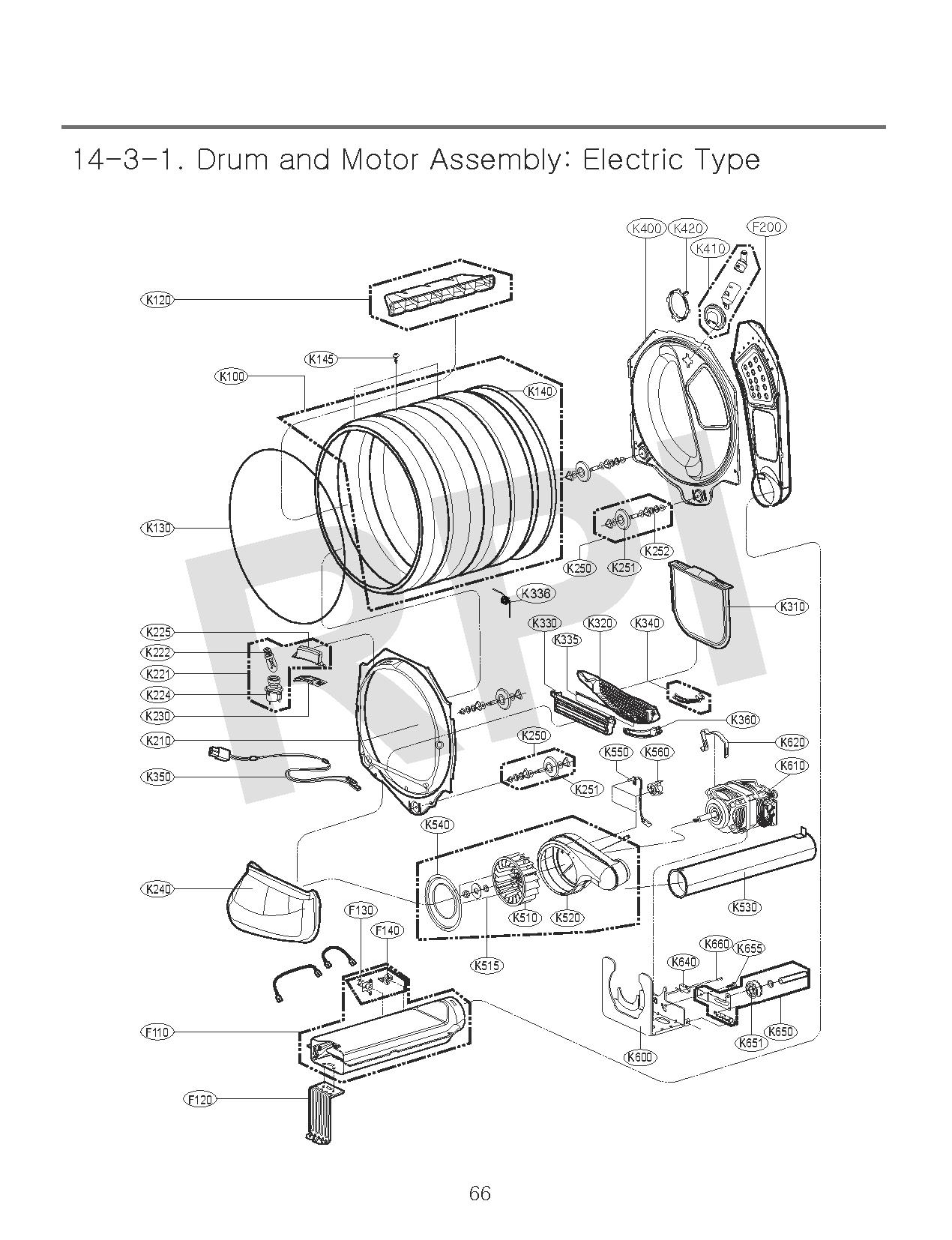

PositionProduct
K2103045EL1005D LG Tub Assembly
K5105835EL1002A LG Dryer Blower Fan Assembly
K410AGB34327803 LG Dryer Steam Nozzle Assembly
K4003044EL0002T LG Rear Drum Tub
K3506631EL3003B LG Dryer Wiring Harness
K3364970EL4002C LG Dryer Distortion Spring
K2524W50100F LG Customized
K2514581EL3001M LG Roller Assembly
K2504581EL2002H LG Dryer Drum Roller Assembly
K515HOUSING- BLOWER + HARDWARE
K5305209EL1006A LG Dryer Metal Duct
K5404975EL3001A LG Guide Assembly
K3353550EL2004B LG Dryer Lint Screen Guide Filter Cover
K330GUIDE-FILTER
K3203550EL1005C LG Dryer Lint Filter Grille
K3105231EL1001C LG Dryer Lint Filter
K2405209EL1002A LG Dryer Duct Assembly
K225MCK62973601 LG Cover Lamp
K520MEK37661701 LG Blower Housing
K5506323EL2001B LG Dryer Thermistor Assembly
K2303550EL2001A LG Dryer Lamp Bulb Shield Cover
K2244930EL3008A LG Holder
K6601TPL0303218 LG Tapping Screw
K6551SZZEL3001A LG Customized Screw
K6514560EL3001A LG Dryer Idler Pulley Wheel
K650PULLEY ASSY-MOTOR
K640EBF61734701 LG Dryer Micro Switch
K6204860EL3001A LG Dryer Blower Motor Clamp
K6104681EL1008A LG Dryer Blower Drive Motor
K600MAZ66065301 LG Bracket Motor
F1105301EL1001H LG Dryer Heater Element Assembly
F1204810EL1007A LG Heater Bracket
F1306931EL3003D LG Dryer High-Limit Thermal Fuse Thermostat
K2226913EL3001E LG Dryer Incandescent Lamp
K2216913EL3002K LG Dryer Incandescent Lamp
K1404036EL3001A LG Dryer Drum Felt Gasket
K1304400EL2001A LG Dryer Drum Drive Belt
K1204432EL1002A LG Dryer Drum Baffle
K1003045EL1002P LG Dryer Drum Tub Assembly
F2005209EL1001C LG Duct Assembly
F140THERMOSTAT ASSY
K5606931EL3002M LG Dryer Thermostat
