DLEX7600KE 1

DLEX7600KE 1

Written by

in

DLEX7600KE 1

Products

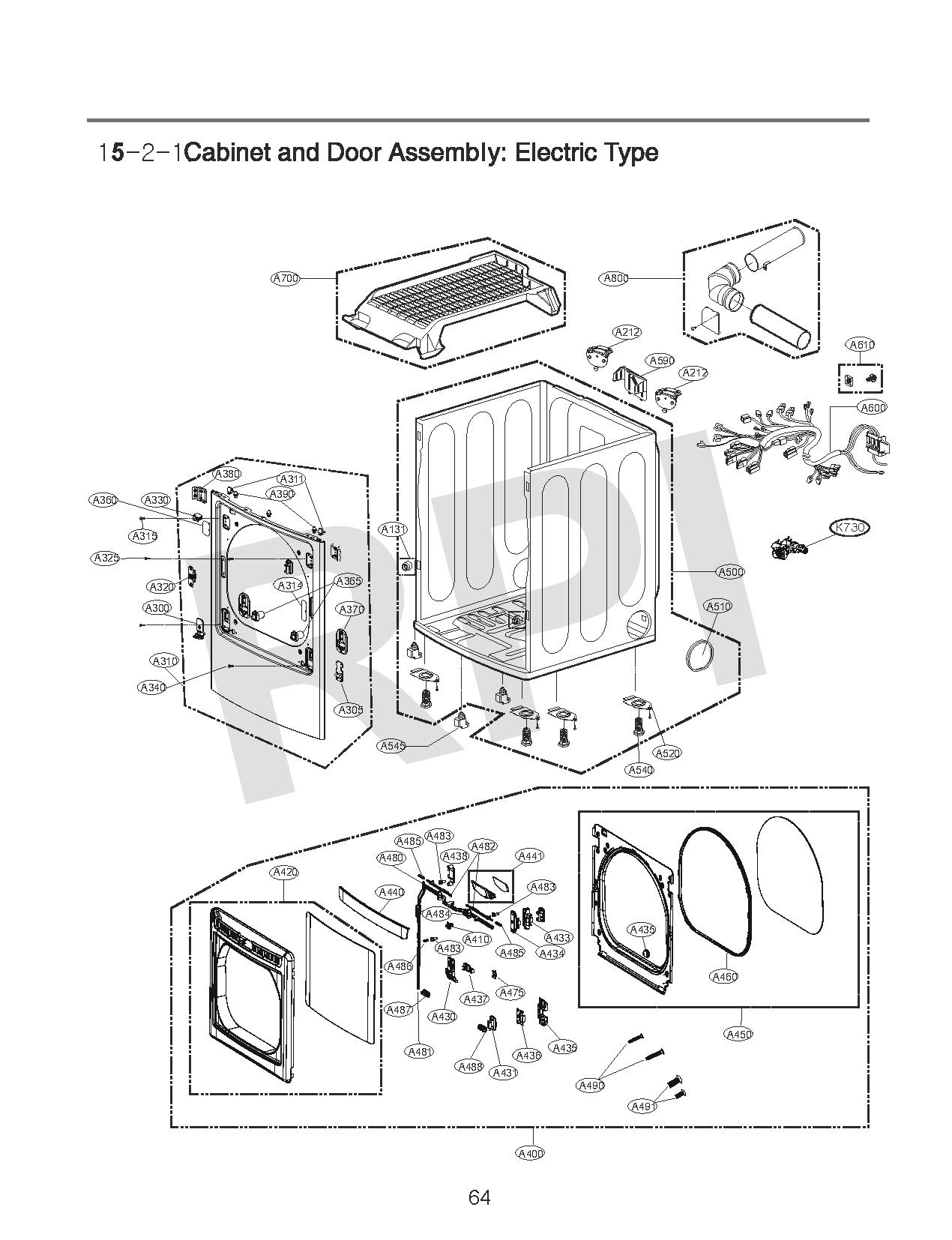

PositionProduct
A500ABJ73928223 LG Cabinet Assembly
A4901SZZEL4001B LG Customized Screw
A488MBL65958101 LG Cover Cap
A305AEH74256601 LG Hinge Assembly
A487MBL65958102 LG Cover Cap
A486MHY63244303 LG Coil Spring
A300MEF62782201 LG Hinge Assembly
A485MHY63244302 LG Coil Spring
A484MHY63244301 LG Coil Spring
A483MFG63098701 LG Locker Hook
A482MFG63098601 LG Locker Handle
A481MAK62727101 LG Bar Connector
A4911TTL0402418 LG Microwave Tapping Screw
A314MBL62213306 LG Cap Hole
A510MBL65217002 LG Dryer Cap
A310ACQ86644209 LG Cabinet Cover Assembly
A600EAD60946229 LG Multi Harness
A400ADC74129519 LG Door Panel
A380MAZ61975501 LG Bracket Hinge
A370MAZ63869301 LG Hinge Bracket
A365ACV73430101 LG Damper Assembly
A3904930ER4002B LG Holder
A360MBL62213310 LG Hole Cap
A340FAB32258901 LG Screw Customized
A5404778EL3001E LG Leg
A3154000FD4191A LG Customized Screw
A480MAK63888501 LG Connector Bar
A460MDS61982901 LG Gasket
A450ADV74568803 LG Frame Assembly
A3114930ER4003A LG Holder
A2123300ER4003A LG Lower Plate
A7003750EL0001C LG Dishwasher Rack Dryer
A5454930EL3004A LG Holder
A5204810EL3001A LG Base Bracket
A3251SZZEL2001A LG Screw Customized
K730AJU73432602 LG Inlet Valve Assembly
A8003911EZ9131X LG Dryer Stainless Steel Side Venting Kit
A610383EEL9001H LG Assembly Parts
A590MCK62423301 LG Safety Cover
A3306601EL3001A LG Dryer Door Switch Assembly
A3204027EL1001C LG Locker Assembly
A4104026EL3007C LG Locker Hook
A475MFG63878901 LG Body Locker
A441AED73953302 LG Refrigerator Handle Assembly
A440MEB63034504 LG Handle
A438MBL65578902 LG Cover Cap
A437MBL67041502 LG Cover Cap
A436MAZ63869201 LG Hinge Bracket
A435MJH63096901 LG Hinge Supporter
A434AEH75356301 LG Assembly Hinge
A433MJH64476101 LG Hinge Supporter
A431MEF62782001 LG Hinge
A430MEF62782101 LG Hinge Assembly
A420ADV74568907 LG Frame Assembly
A131AEJ33026601 LG Holder Assembly
