DLEX7700VE 1

Products

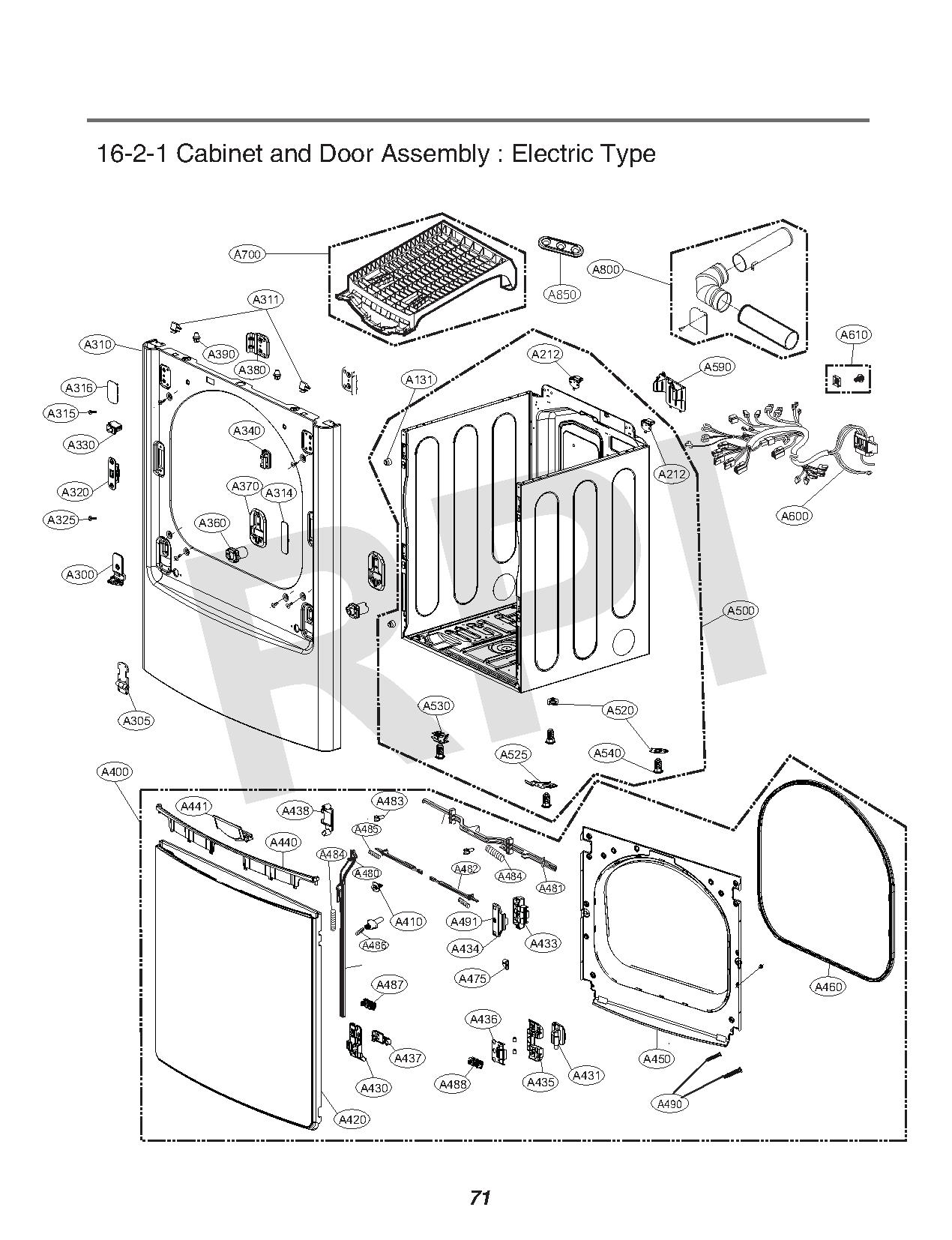

PositionProduct
A850AAA75904802 LG Accessory Assembly
A316MBL62213302 LG Hole Cap
A800383EEL9001L LG Dryer Side Vent Kit
A437MBL65579002 LG Cover Cap
A434MAZ63869101 LG Hinge Bracket
A433MJH63096801 LG Hinge Supporter
A380MAZ61975501 LG Bracket Hinge
A370MAZ63869301 LG Hinge Bracket
A850AAA75904801 LG Accessory Assembly
A3904930ER4002B LG Holder
A3154000FD4191A LG Customized Screw
A314MBL62213306 LG Cap Hole
A4911TTL0402418 LG Microwave Tapping Screw
A340MEF62781901 LG Hinge
A310ACQ87693602 LG Cabinet Cover Assembly
A360ACV73430103 LG Damper Assembly
A700AHB73109001 LG Rack Assembly
A600EAD60946226 LG Multi Harness
A600EAD60946221 LG Multi Harness
A500ABJ73568818 LG Cabinet Assembly
A500ABJ73568811 LG Cabinet Assembly
A481Bar,Connector
A480Bar,Connector
A460MDS61982902 LG Gasket
A450ADV75188702 LG Frame Assembly
A440MCR65847701 LG Handle Decoration
A420ADV75188602 LG Frame Assembly
A400ADC74908002 LG Door Panel
A4901SZZEL4001B LG Customized Screw
A488MBL65958101 LG Cover Cap
A305AEH74256601 LG Hinge Assembly
A3204027EL1001C LG Locker Assembly
A3114930ER4003A LG Holder
A2123300ER4003A LG Lower Plate
A5204810EL3001A LG Base Bracket
A3651SZZEL2001A LG Screw Customized
A5506411EL1001B LG Dryer Power Cord Assembly
A610383EEL9001H LG Assembly Parts
A590MCK62423301 LG Safety Cover
A5404778EL3001B LG Dryer Leveling Leg
A5304810EL3009B LG Dryer Leveling Leg Bracket
A5254810EL3009A LG Dryer Base Bracket
A3306601EL3001A LG Dryer Door Switch Assembly
A4104026EL3007C LG Locker Hook
A475MFG63878901 LG Body Locker
A430MEF62782101 LG Hinge Assembly
A487MBL65958102 LG Cover Cap
A486MHY63244303 LG Coil Spring
A300MEF62782201 LG Hinge Assembly
A485MHY63244302 LG Coil Spring
A484MHY63244301 LG Coil Spring
A483MFG63098701 LG Locker Hook
A482MFG63098601 LG Locker Handle
A441AED73953302 LG Refrigerator Handle Assembly
A438MBL65578902 LG Cover Cap
A436MAZ63869201 LG Hinge Bracket
A435MJH63096901 LG Hinge Supporter
A431MEF62782001 LG Hinge
A131AEJ33026601 LG Holder Assembly
