DLEX8000V 3

DLEX8000V 3

Written by

in

DLEX8000V 3

Products

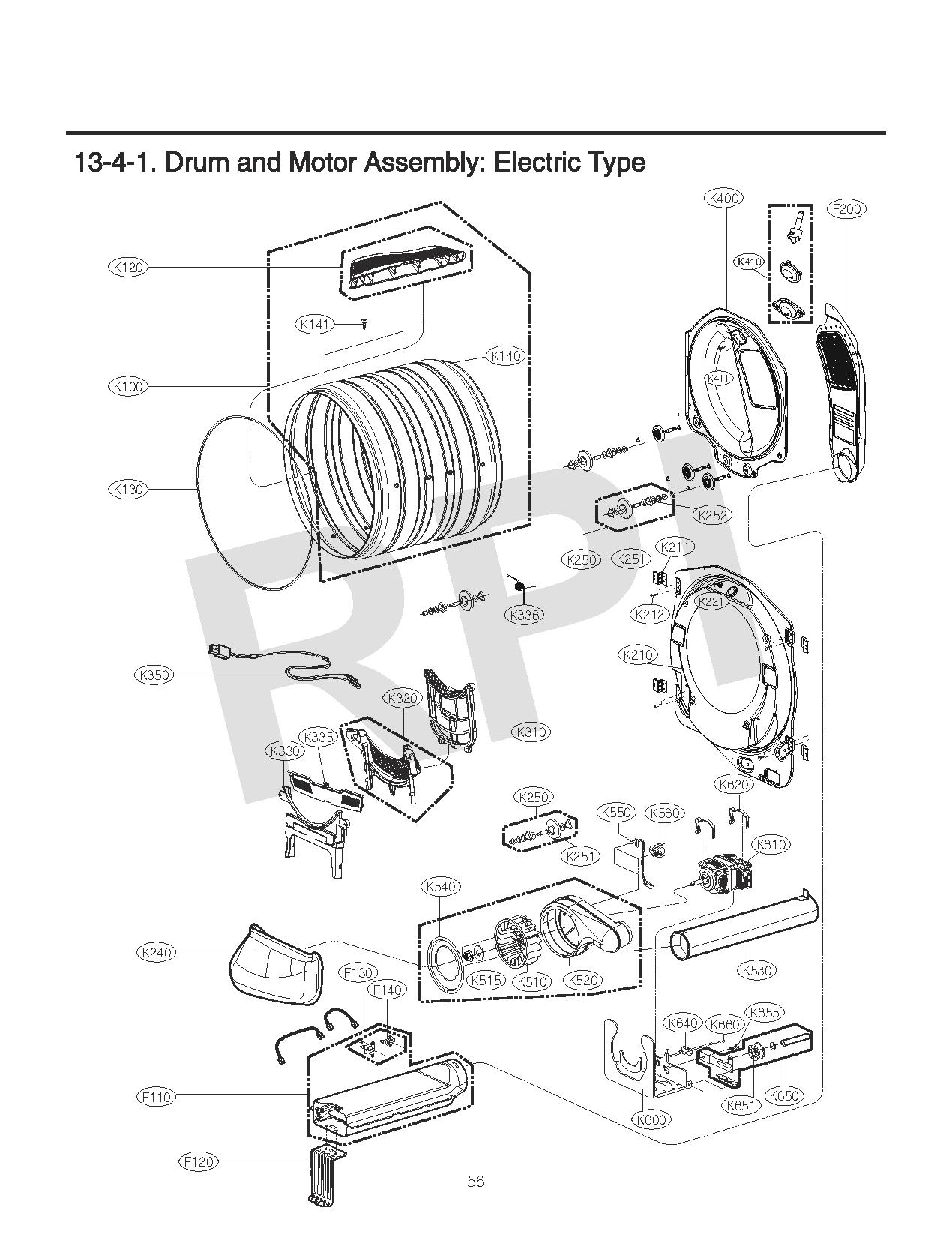

PositionProduct
K6104681EL1008G LG DC Drum Motor Assembly
K100AJQ73274302 LG Drum Tub Assembly
F200ADJ73392901 LG Duct Assembly
K3506631EL3003F LG Harness Assembly
K310ADQ73373201 LG Dryer Lint Screen Filter Replacement Assembly
K240ADJ73372401 LG Duct Assembly
K4111SZZEL2001A LG Screw Customized
K221EAQ61400801 LG LED Lamp
F110HEATER ASSY
K120MFE61921001 LG Lifter
K130BELT-POLY V
K1404036EL3001B LG Gasket
K5305209EL1006F LG Duct Assembly
K400MJT62002901 LG Rear Drum Tub Assembly
K335MCK66826301 LG Filter Cover
K330MEA62790801 LG Filter Guide
K320MEA62770801 LG Guide Cover
K2121SBF0402418 LG Laptop Screw
K2114810EL3008A LG Tub Bracket
K210MJT62002801 LG Front Tub Drum
K520MEK37661701 LG Blower Housing
K5506323EL2001B LG Dryer Thermistor Assembly
F1204810EL1007A LG Heater Bracket
K6601TPL0303218 LG Tapping Screw
K6551SZZEL3001A LG Customized Screw
K6514560EL3001A LG Dryer Idler Pulley Wheel
K650PULLEY ASSY-MOTOR
K640EBF61734701 LG Dryer Micro Switch
K6204860EL3001A LG Dryer Blower Motor Clamp
K600MAZ66065301 LG Bracket Motor
F1306931EL3003D LG Dryer High-Limit Thermal Fuse Thermostat
F140THERMOSTAT ASSY
K1411FTF0503507 LG Screw Laptite
K5404975EL3001A LG Guide Assembly
K515HOUSING- BLOWER + HARDWARE
K5105835EL1002A LG Dryer Blower Fan Assembly
K410AGB34327803 LG Dryer Steam Nozzle Assembly
K3364970EL4002C LG Dryer Distortion Spring
K2524W50100F LG Customized
K2514581EL3001M LG Roller Assembly
K2504581EL2002H LG Dryer Drum Roller Assembly
K5606931EL3002M LG Dryer Thermostat
