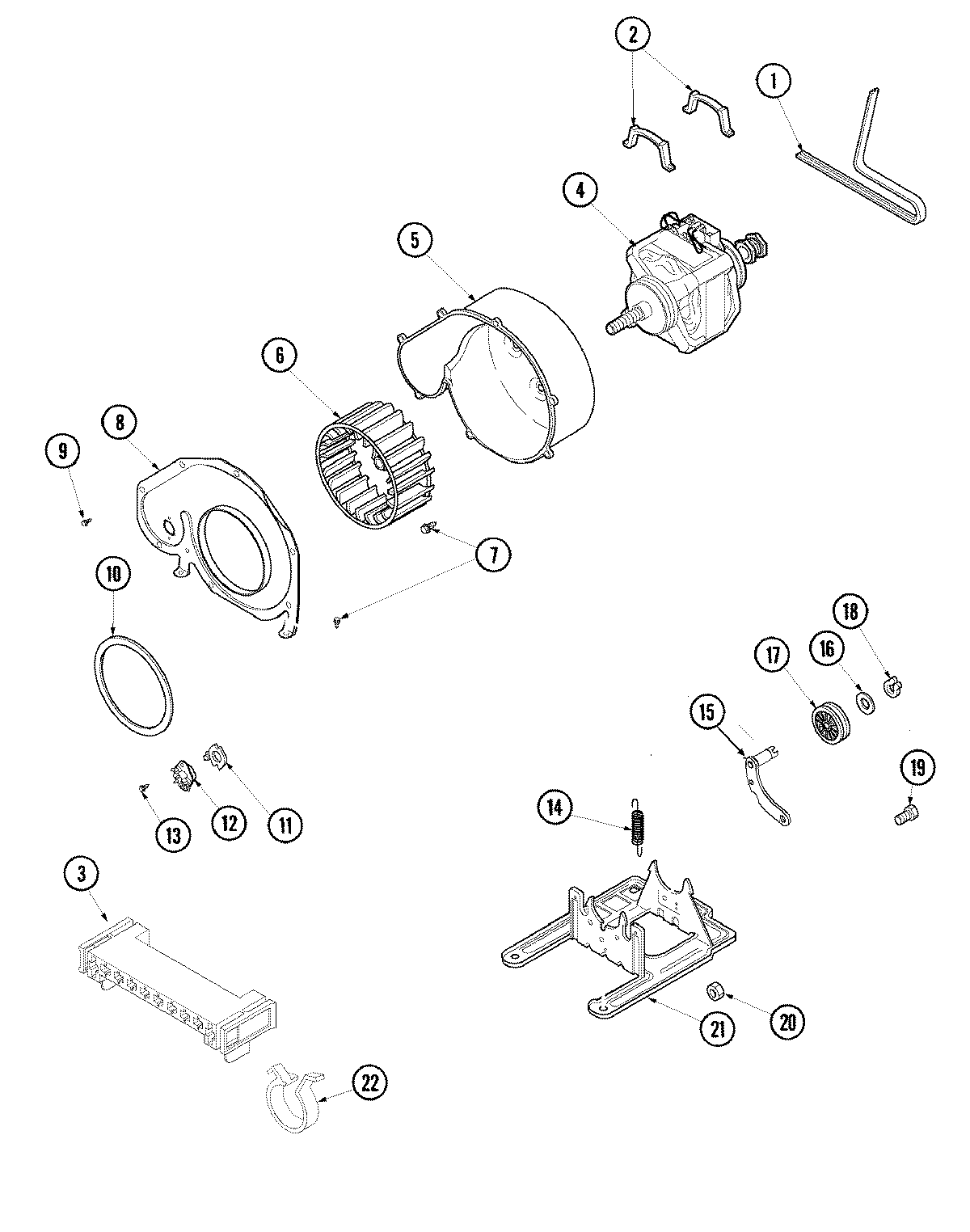

DLG330RAW 06 – MOTOR & FAN

Products

Position	Product
1	MAY 40111201
2	WP660658 Whirlpool Clamp
3	MAY 500338
4	MAY 40099801
4	WP2200376 Whirlpool Dryer Drum Drive Motor Assembly
5	MAY 56020
6	MAY 56000
7	MAY 503661
8	MAY 500078
9	MAY 31260
10	MAY 40090001
11	MAY 61623
12	MAY 503979
12	WP37001136 Whirlpool Dryer Cycling Thermostat
13	WP489464 Whirlpool Refrigerator Screw
14	MAY 56076
15	WP37001144 Whirlpool Dryer Idler Arm Pulley Assembly
16	MAY 52549
17	WPY54414 Whirlpool Dryer Idler Pulley
18	MAY 23748
19	D500824 Speed Queen Screw
20	MAY 52566
21	MAY 503613
22	MAY 504034
