DLGY1702V 2

DLGY1702V 2

Written by

in

DLGY1702V 2

Products

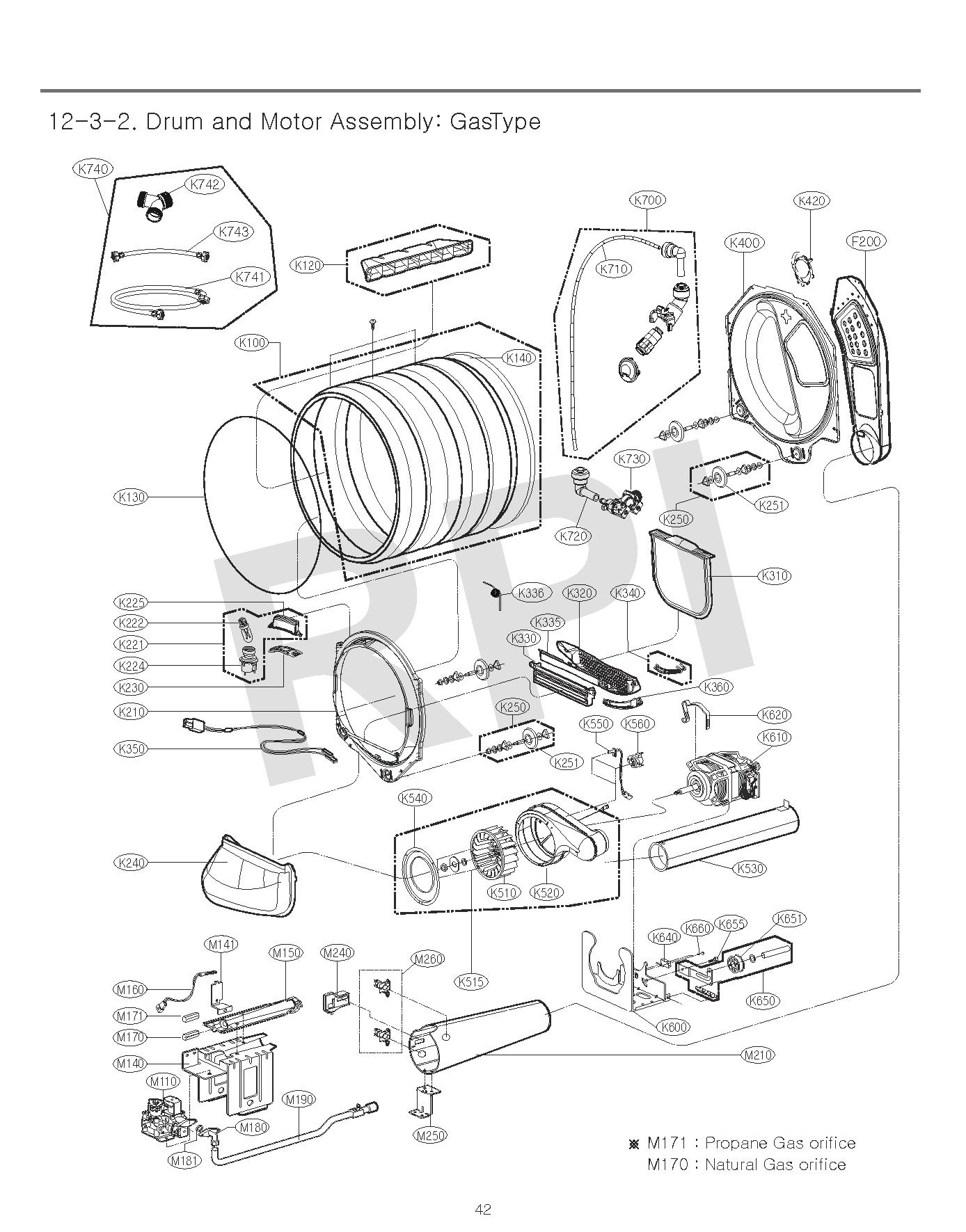

PositionProduct
F2005209EL1001E LG Dryer Vent Duct Assembly
K710Hose,Pump
K700AGB72911101 LG Nozzle Assembly
K3353550EL2004B LG Dryer Lint Screen Guide Filter Cover
K7435215FD3715W LG Inlet Hose
K742MCD63306801 LG Dryer Pipe Connector
K740AAA75232311 LG Accessory Assembly
K330GUIDE-FILTER
K3203550EL1005C LG Dryer Lint Filter Grille
K3105231EL1001C LG Dryer Lint Filter
K2405209EL1002A LG Dryer Duct Assembly
K225MCK62973601 LG Cover Lamp
K2103045EL1005A LG Drum Assembly
K720MDB61881002 LG Elbow
M1105221EL2002A LG Dryer Gas Valve Assembly
M1404974EL1001A LG Dryer Burner Guide
M260383EEL9001D LG Parts Assembly
M2504980EL3001A LG Holder Supporter
M240SENSOR ASSY
M2103016EL1001A LG Funnel
M1905201EL2001A LG Pipe Assembly
M1814036EL3002A LG Gasket
M1804932EL4001A LG Pipe Connector
M171383EEL3002R LG Dryer Conversion Parts Assembly
M1704948EL4001B LG Dryer LP to Natural Gas Orifice Conversion
M1605318EL3001A LG Dryer Gas Igniter
M1505201EL3001A LG Assembly Pipe
M1414810EL3002A LG Base Bracket
K730AJU73432602 LG Inlet Valve Assembly
K7415215FD3715V LG Washer Cold Water Inlet Fill Hose Blue
K520MEK37661701 LG Blower Housing
K1404036EL3001A LG Dryer Drum Felt Gasket
K1304400EL2001A LG Dryer Drum Drive Belt
K1204432EL1002A LG Dryer Drum Baffle
K1003045EL1002P LG Dryer Drum Tub Assembly
K6601TPL0303218 LG Tapping Screw
K6551SZZEL3001A LG Customized Screw
K6514560EL3001A LG Dryer Idler Pulley Wheel
K650PULLEY ASSY-MOTOR
K640EBF61734701 LG Dryer Micro Switch
K6204860EL3001A LG Dryer Blower Motor Clamp
K6104681EL1008A LG Dryer Blower Drive Motor
K600MAZ66065301 LG Bracket Motor
K2216913EL3002K LG Dryer Incandescent Lamp
K2226913EL3001E LG Dryer Incandescent Lamp
K2244930EL3008A LG Holder
K5506323EL2001B LG Dryer Thermistor Assembly
K5404975EL3001A LG Guide Assembly
K5305209EL1006A LG Dryer Metal Duct
K515HOUSING- BLOWER + HARDWARE
K5105835EL1002A LG Dryer Blower Fan Assembly
K4003044EL0002T LG Rear Drum Tub
K3506631EL3003B LG Dryer Wiring Harness
K3406500EL3001A LG Dryer Moisture Sensor
K3364970EL4002C LG Dryer Distortion Spring
K2514581EL3001M LG Roller Assembly
K2504581EL2002H LG Dryer Drum Roller Assembly
K2303550EL2001A LG Dryer Lamp Bulb Shield Cover
K5606931EL3002M LG Dryer Thermostat
