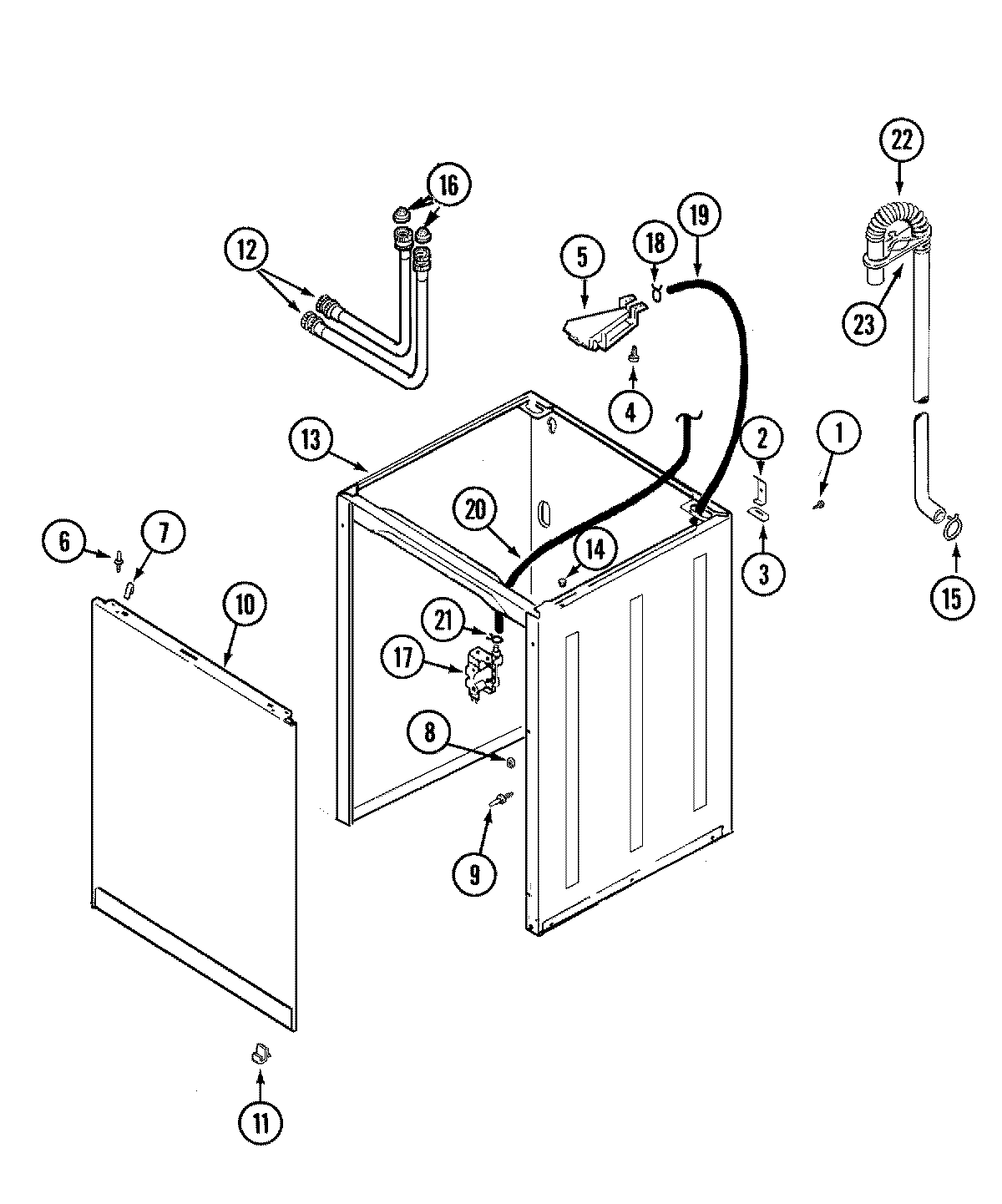

DLW231RAW 03 – CABINET

Products

Position	Product
1	SCREW
2	35-2846 Whirlpool Hinge
3	MAY 35-4128
4	WP90767 Whirlpool Screw
5	MAY 21001760
7	WP25-7220 Whirlpool Cabinet Clip
8	WP3400029 Whirlpool Dishwasher Nut
9	MAY 53-0643
9	MAY 35-4129
9	MAY 53-0200
10	MAY 35-2084
11	WP53-0120 Whirlpool Clip
12	FILL HOSE 5' W/WASHER
13	MAY 12001801
14	MAY 33-2653
15	WP285655 Whirlpool Hose Clamp
16	WP22002960 Whirlpool Washer Inlet Strainer
16	MAY 25-7048
17	WP21001932 Whirlpool Dishwasher Water Valve
19	12002749 Whirlpool Flume Hose Kit
20	WP21001748 Whirlpool Hose
21	WP596669 Whirlpool Hose Clamp
22	WP21001872 Whirlpool Hose
23	MAY 22002701
