DLW330RAW 06 – MOTOR, PUMP AND IDLER ASSEMBLY – Aparts

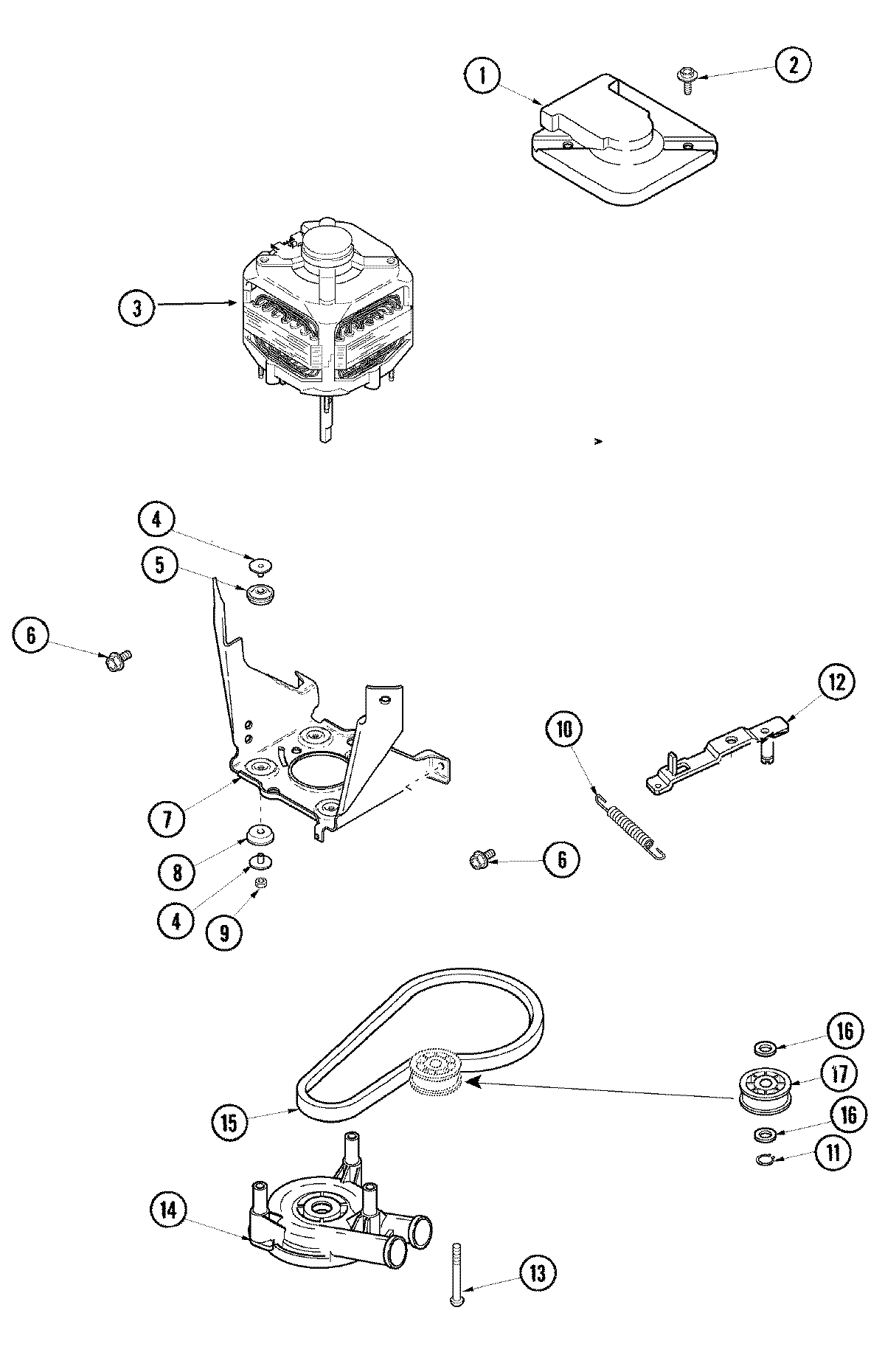

DLW330RAW 06 – MOTOR, PUMP AND IDLER ASSEMBLY

Products

Position	Product
1	MAY 40112301
2	WP3390631 Whirlpool Screw
3	MAY 40095003
4	MAY 40053701
5	MAY 40053801
6	MAY 40105601
7	MAY 40015501
8	MAY 40054301
9	MAY 40095101
10	MAY 40061401
11	MAY 23748
12	MAY 27001028
13	MAY 40063701
14	MAY 40040301
15	WP27001007 Whirlpool Spin Belt
16	MAY 52549
17	WPW10139757 Whirlpool Nut
17	MAY 40038901
17	MAY 40045001
