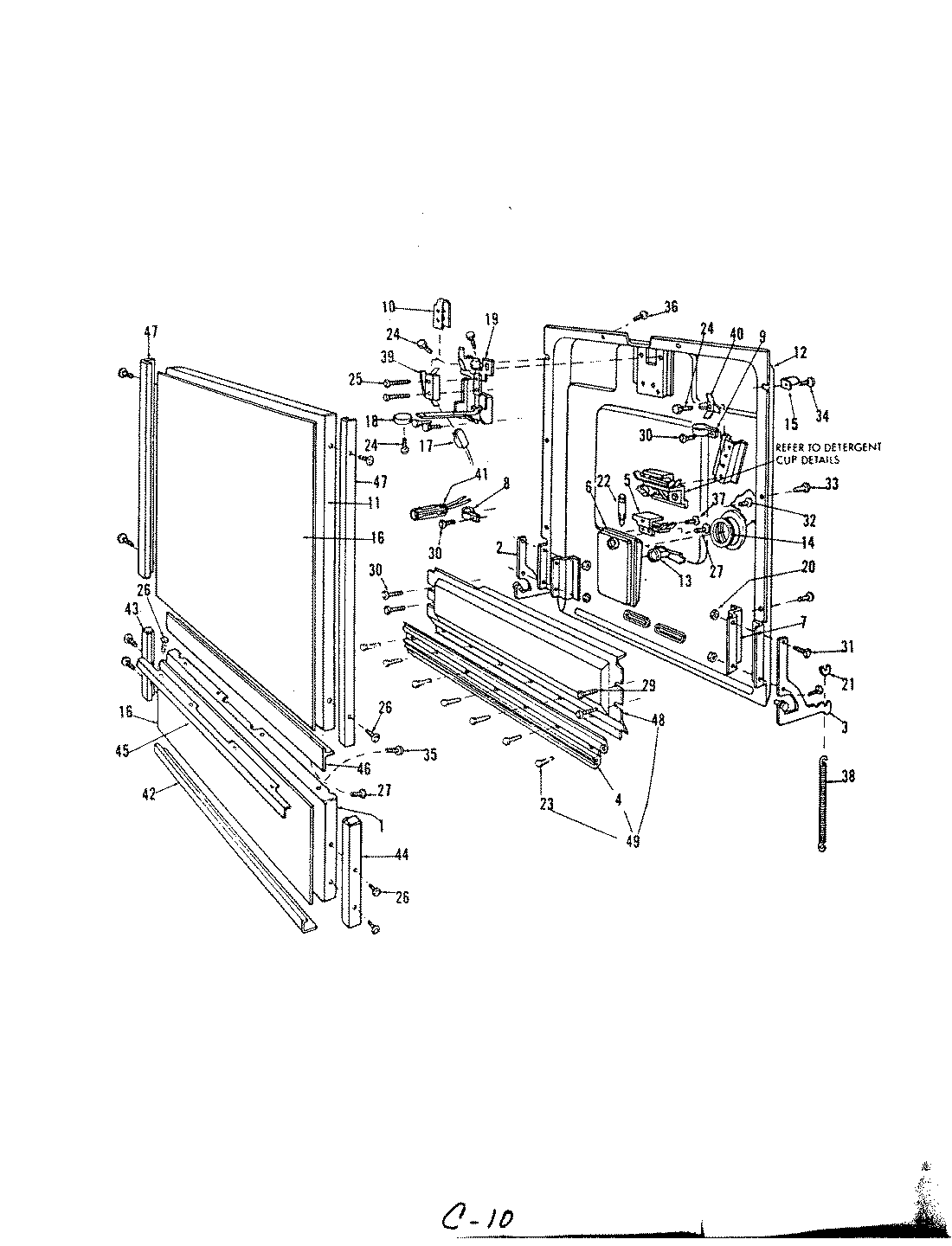

DM45A 03 – DOOR

DM45A 03 – DOOR

Written by

in

DM45A 03 – DOOR

Products

Position	Product
1	MAY 808084
1	MAY 808069
2	LH ARM
3	RH ARM
5	BRACKET
6	DISPENSER
7	ARM BRACKET
8	MAY 805340
9	MAY 807212
10	SWITCH COVER
11	MAY 807643
12	INNER PANEL
13	MAY 807673
14	GROMMET
15	DOOR GUIDE
16	MAY 808215
17	INSULATOR
18	KNOB
19	LATCH ASM
20	MAY 800928
21	SPRING PAD
22	MAY 806757
24	SCREW
25	MAY 803051–
26	MAY 807293
27	MAY 807501
28	MAY 805063
29	SCREW
30	SCREW
31	MAY 803311
32	SCREW
33	SCREW
34	MAY 806976
35	MAY 807784
36	SCREW
37	MAY 804895
38	DOOR SPRING
39	MAY 807043
40	GROUND TERMINAL
41	MAY 808280
42	BOTTOM TRIM
43	LH TRIM
44	RH TRIM
45	ACC PNL TRIM
46	MAY 806912
47	DOOR TRIM
49	VENT BAFFLE
