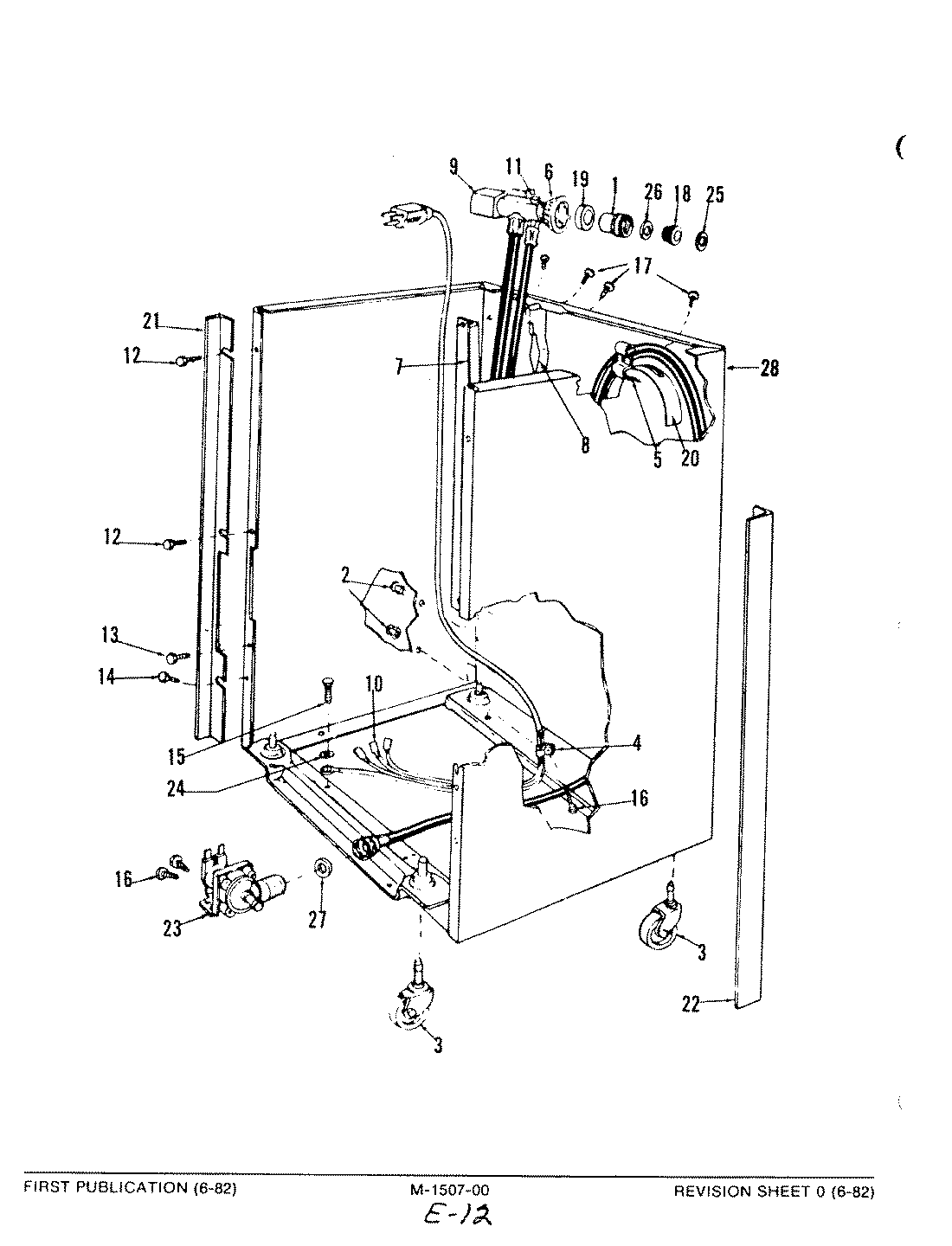

DM45A-1 04 – FRAME PARTS

DM45A-1 04 – FRAME PARTS

Written by

in

DM45A-1 04 – FRAME PARTS

Products

PositionProduct
1MAY 803391
2MAY 807883
3MAY 806171
4MAY 804426
5HOSE CLAMP
6COLLAR KIT
7HOSE GUARD
8HOSE GUIDE
9HOSE ASM
10POWER CORD
11RELIEF KIT
12MAY 806539
13SCREW
15MAY 807951
16SCREW
17MAY 807501
18ADAPTOR
19U PACKING
20HOSE SUPPORT
23MAY 804982
24MAY 807373
25MAY 803393
26MAY 807607
27HOSE WASHER
28FRAME ASM AM
