DM45A-1 07 – TUB – Aparts

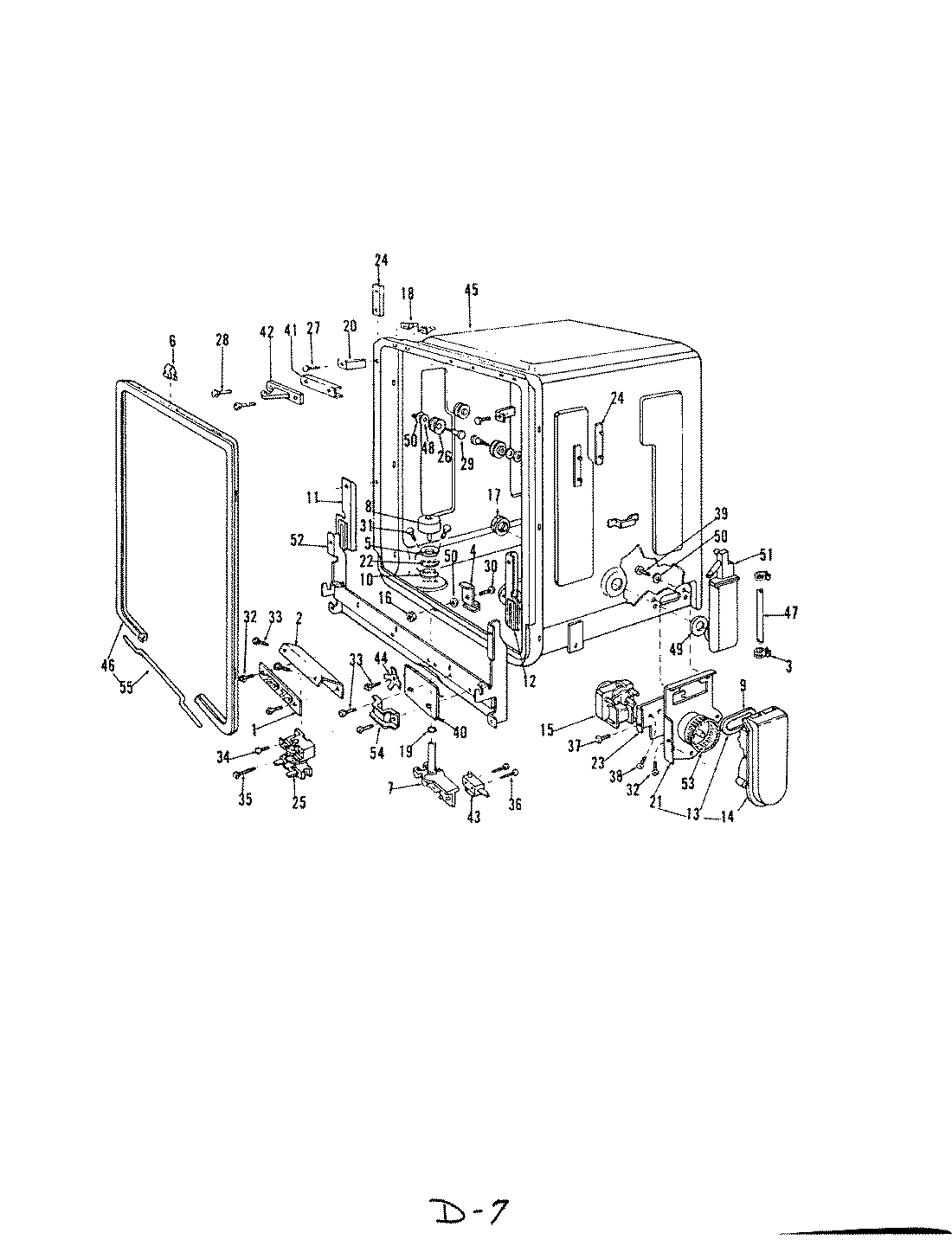

DM45A-1 07 – TUB

Products

Position	Product
1	MAY 807486
2	MAY 807849
3	MAY 807813
4	MAY 808115
5	MAY 804149
6	CLIP KIT (TUB GASKET)
7	FLOAT ASM
8	MAY 804630
10	GASKET
11	LH GUIDE
12	RH GUIDE
16	MAY 803346
17	MAY 805669
18	MAY 807018
19	O RING
20	MAY 807454
22	PLATE, FLOAT TUBE
24	TAPPING PLATE
25	RELAY
26	ROLLER
27	MAY 806539
28	MAY 806890
29	SCREW
30	MAY 803319
31	MAY 807268
32	MAY 807501
33	SCREW
34	MAY 806593
35	MAY 804672
36	BOLT
40	WIRE SHIELD
41	STRIKE SHIM
42	STRIKE
43	FLOAT SWITCH
44	GROUND TERMINAL
45	MAY 808187
46	DOOR GASKET
47	INLET TUBE
48	MAY 803367
49	WASHER
50	SEALER
51	MAY 806470
52	HINGE
54	CLAMP
55	WIRE,GASKT JUNC
