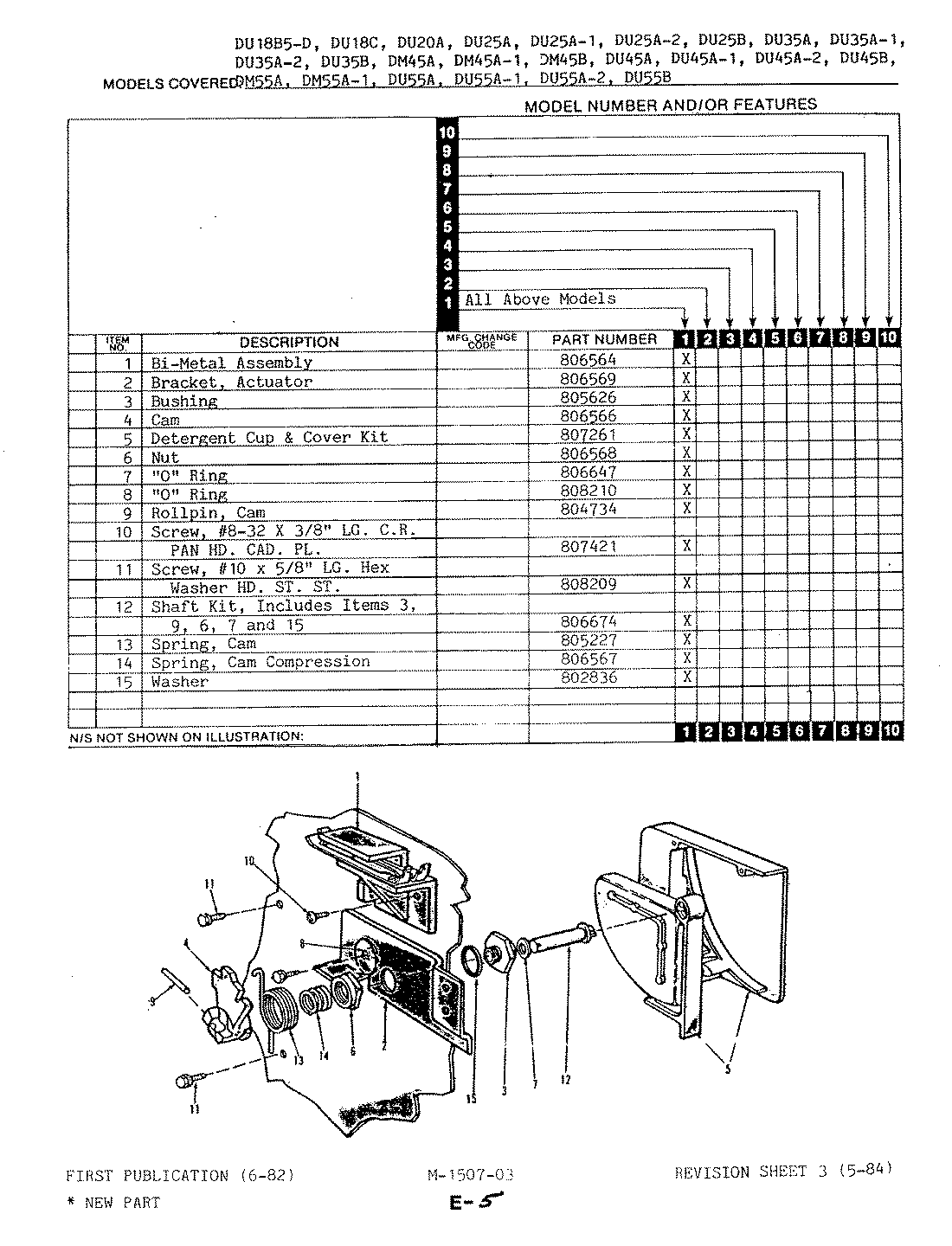

DM45B 02 – DETERGENT CUP
Products
| Position | Product |
|---|---|
| 1 | MAY 806564 |
| 2 | MAY 806569 |
| 3 | MAY 805626 |
| 4 | MAY 806566 |
| 5 | DETRG CUP KIT |
| 6 | NUT |
| 7 | O RING |
| 8 | O RING |
| 9 | ROLLPIN |
| 10 | MAY 807421 |
| 11 | SCREW |
| 12 | SHAFT KIT |
| 13 | SPRING |
| 14 | SPRING |
| 15 | GASKET |
DM45B 02 – DETERGENT CUP
| Position | Product |
|---|---|
| 1 | MAY 806564 |
| 2 | MAY 806569 |
| 3 | MAY 805626 |
| 4 | MAY 806566 |
| 5 | DETRG CUP KIT |
| 6 | NUT |
| 7 | O RING |
| 8 | O RING |
| 9 | ROLLPIN |
| 10 | MAY 807421 |
| 11 | SCREW |
| 12 | SHAFT KIT |
| 13 | SPRING |
| 14 | SPRING |
| 15 | GASKET |
