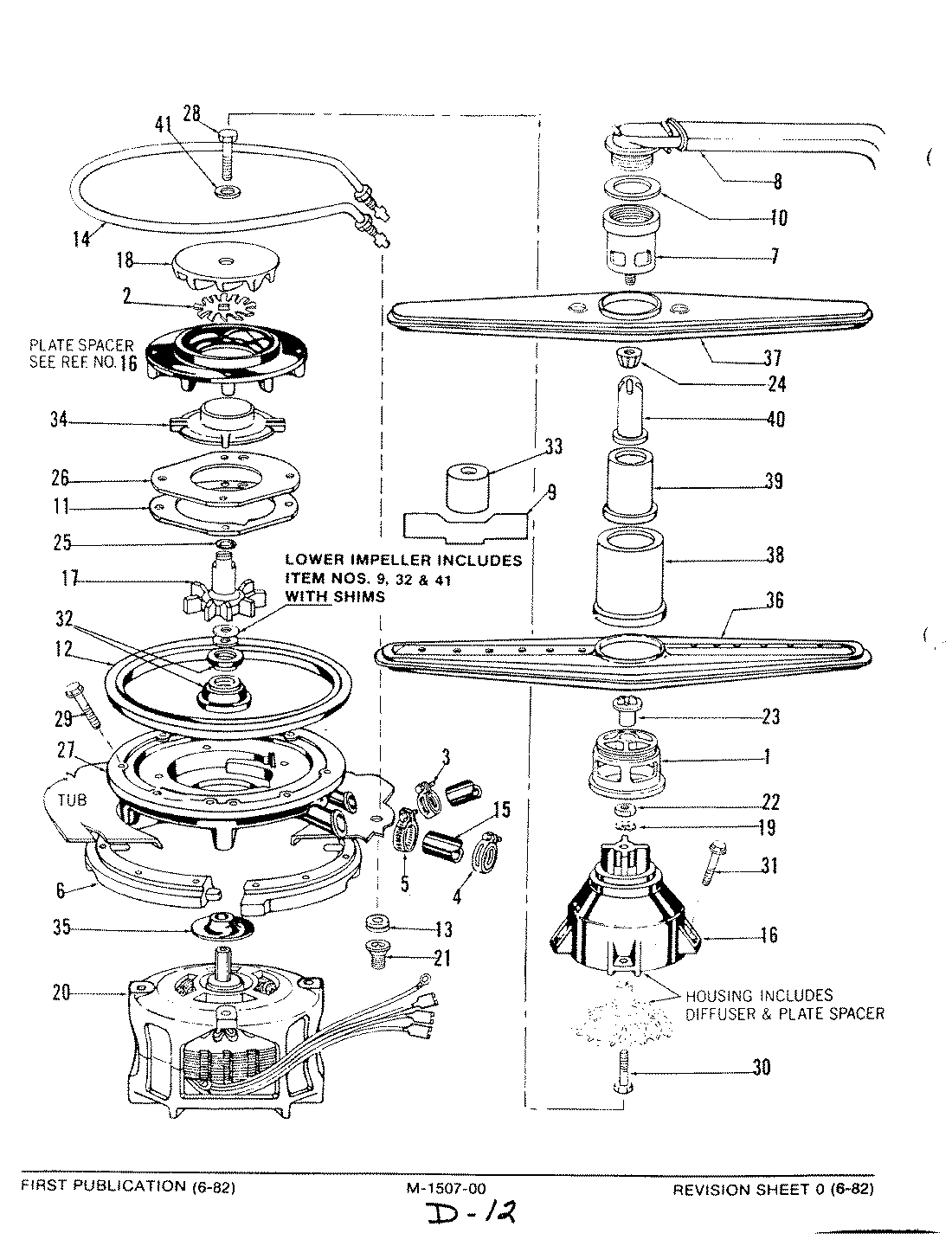

DM55A 05 – MOTOR, HEATER & SPRAY ARM

DM55A 05 – MOTOR, HEATER & SPRAY ARM

Written by

in

DM55A 05 – MOTOR, HEATER & SPRAY ARM

Products

Position	Product
1	LOWER BEARING
2	MACERATOR BLADE
3	CLAMP
4	CLAMP
5	MAY 808186
6	CLAMP RING
7	MAY 808183
8	ELBOW & TUBE
9	SHIM GAUGE
10	MAY 808184
11	GASKET
12	MAY 807710
13	GROMMET
14	HEATER KIT
15	HOSE CONNECTOR
16	PUMPHOUSING KIT
17	IMPELLER KIT
18	UPPER IMPELLER
19	MAY 804526
20	MOTOR
21	NUT
22	MAY 804527
23	NUT
24	MAY 808181
25	O RING
26	PUMP PLATE
27	PUMP HOUSING
28	MAY 806353
29	MAY 807268
30	MAY 806945
31	SCREW
32	GASKET
33	SEAL TOOL
34	SHROUD
35	MAY D800062
36	MAY 808177
37	MAY 808182
38	TOWER BASE
39	MAY 808179
40	MAY 808180
41	MAY 803367
