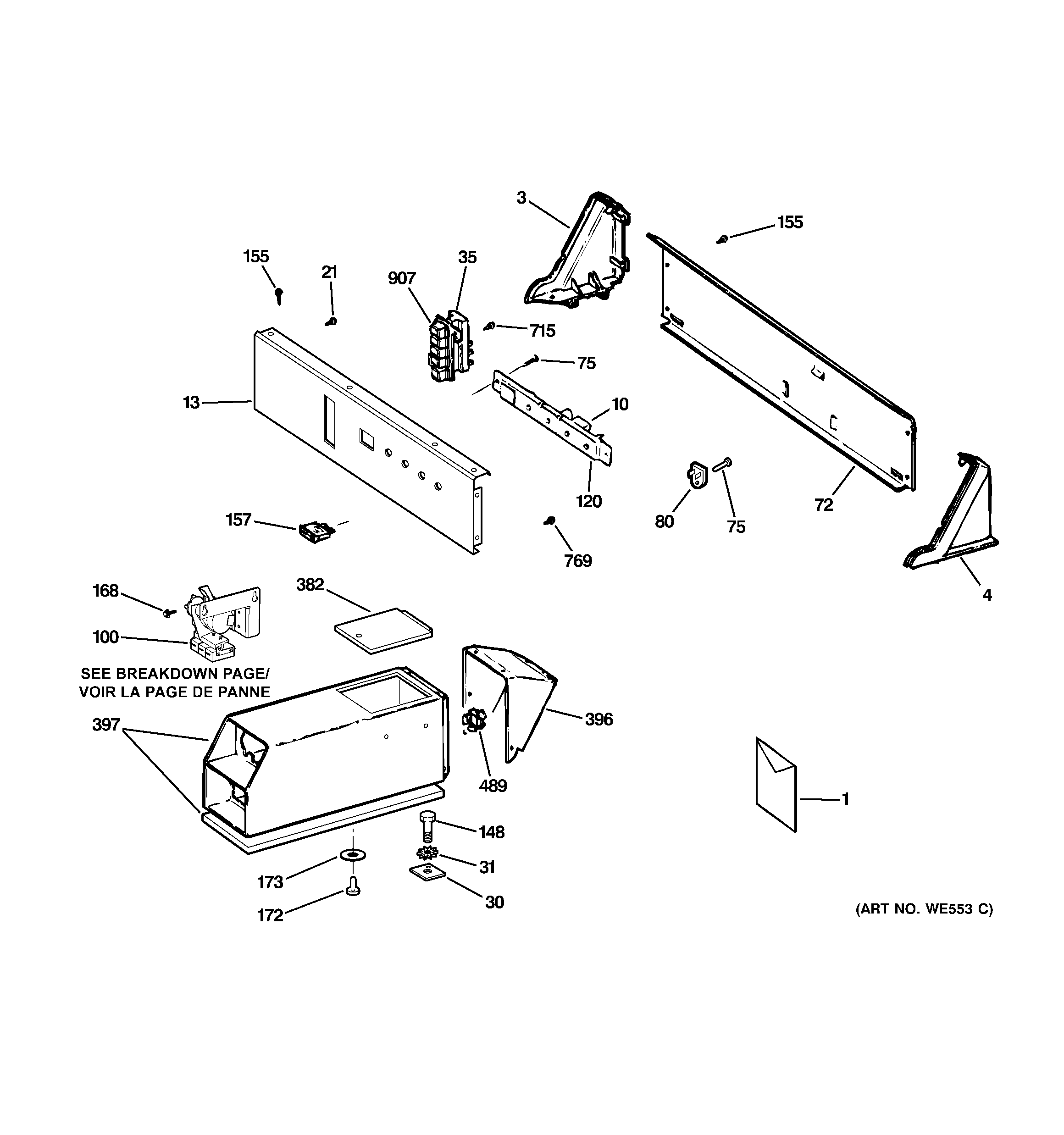

DMCD330EJ1WC CONTROL PANEL & COIN BOX ASSEMBLY

Products

Position	Product
1	GEN 49-90307
1	GEN 31-16091
1	GEN 31-16220
3	END CAP LH BK
4	END CAP RH BK
10	GEN WE4M313
13	GEN WE19M1556
21	WZ4X241D GE Screw Package
30	PLATE SECUR COIN BOX
31	WD2X322 GE Dishwasher Screw 8-18 x 7/8
35	WE4M210 GE Push Button Switch
72	GEN WE20M343
75	WE2M173 GE Screw
75	GEN WE2M308
80	RESISTOR (3500OHM) BEIGE
100	TIMER & BRACKET ASM.
120	GEN WH01X10072
148	GEN WE2M183
155	GEN WH02X1233
157	GEN WE1X950
168	GEN WZ02X0468
172	GEN WH02X0735
173	WASHER LOCK
382	DOOR AND LATCH ASM
396	ADAPTER METER CASE
397	METER CASE ASM.
489	GEN WH01X2572
715	WD2M101 GE Dishwasher Screw
769	WB1X500D GE Oven Screw Package
907	GEN WD09X0206
