DME15H-9P-P4 01 – BASE & CAVITY
Written by
in

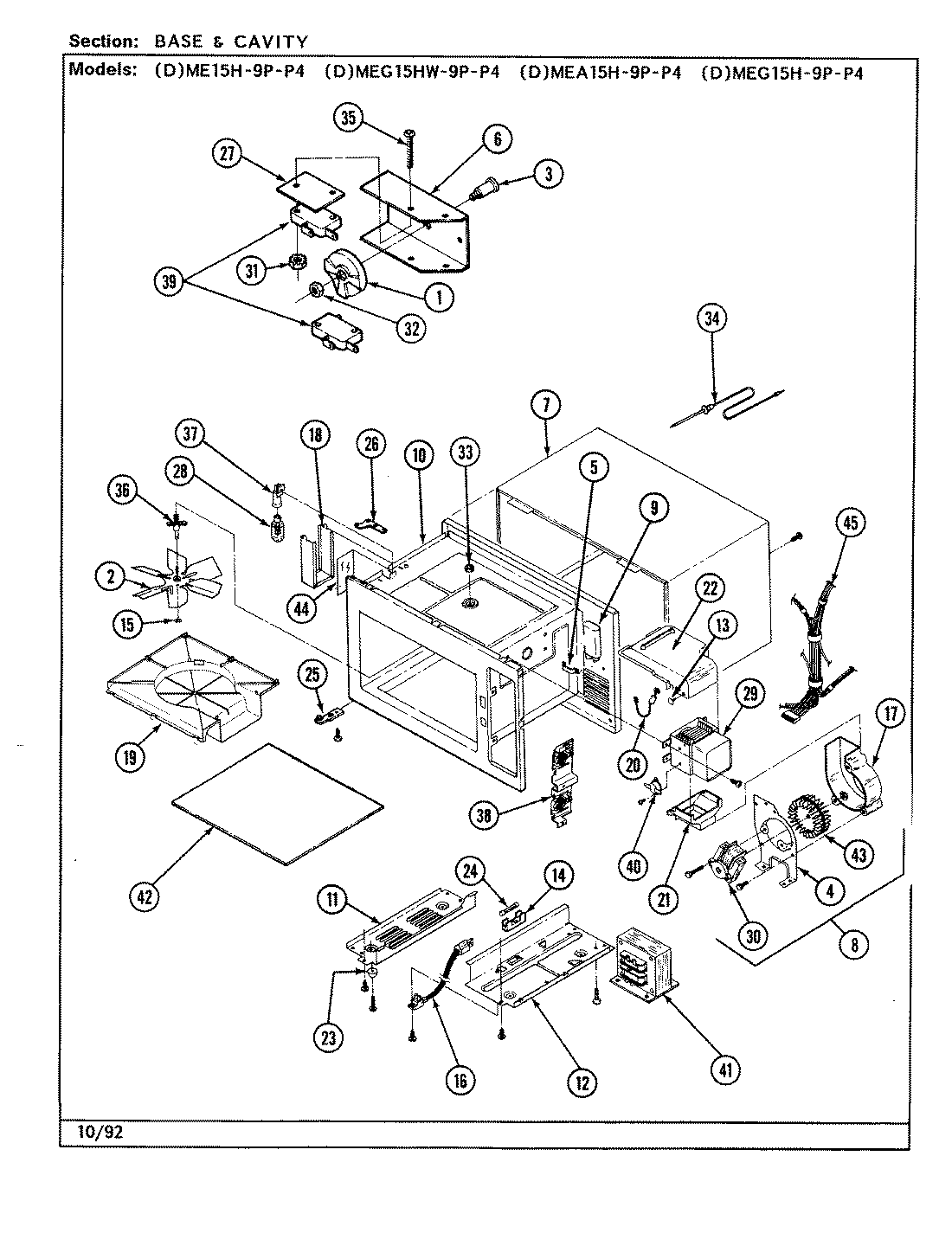

DME15H-9P-P4 01 – BASE & CAVITY
Products
Position
Product
1
MAY 02440002
2
MAY 04021532
3
MAY 03010154
4
MAY Y02030136
5
MAY 02030154
6
MAY 02030153
7
MAY 02140072
8
MAY 04021422
9
MAY 01020025
10
MAY 04021535
11
MAY 02090010
12
MAY 02090011
13
MAY 03110061
14
MAY Y01100044
15
MAY 03110066
16
MAY 02300040
16
MAY 01080053
17
MAY Y02300032
18
MAY Y02300049
18
MAY 02300034
19
MAY Y02300029
20
MAY Y04010206
21
MAY 02170123
22
MAY 02170133
23
MAY Y02230008
24
MAY Y01050005
24
MAY 02310157
25
MAY 04021343
26
MAY 04021344
27
MAY 01100023
28
25T8DC Bulb
29
MAY 01040006
30
MAY 01110031
31
MAY Y03050001
32
MAY Y03050043
33
MAY 03050007
33
MAY 02040094
34
MAY 03030011
34
MAY 04060549
34
MAY 01170008
34
MAY 01220006
34
MAY 01010008
35
MAY 03010158
35
MAY Y03010136
36
MAY 02360058
37
MAY Y01100040
38
MAY 01140063
38
MAY 04021275
38
MAY 01140064
39
MAY 01140065
40
MAY 03010094
40
MAY Y01180008
40
MAY 01140080
40
MAY 8270P003-60
40
MAY 8270P005-60
40
MAY Y01140081
40
MAY 8270P006-60
40
MAY 04060548
41
MAY Y01130042
41
MAY Y01130043
42
MAY Y02280039
43
MAY Y01110017
44
MAY 02220084
45
MAY 04060542
45
MAY 04060539
45
MAY 04010280
45
MAY 04060541
←
