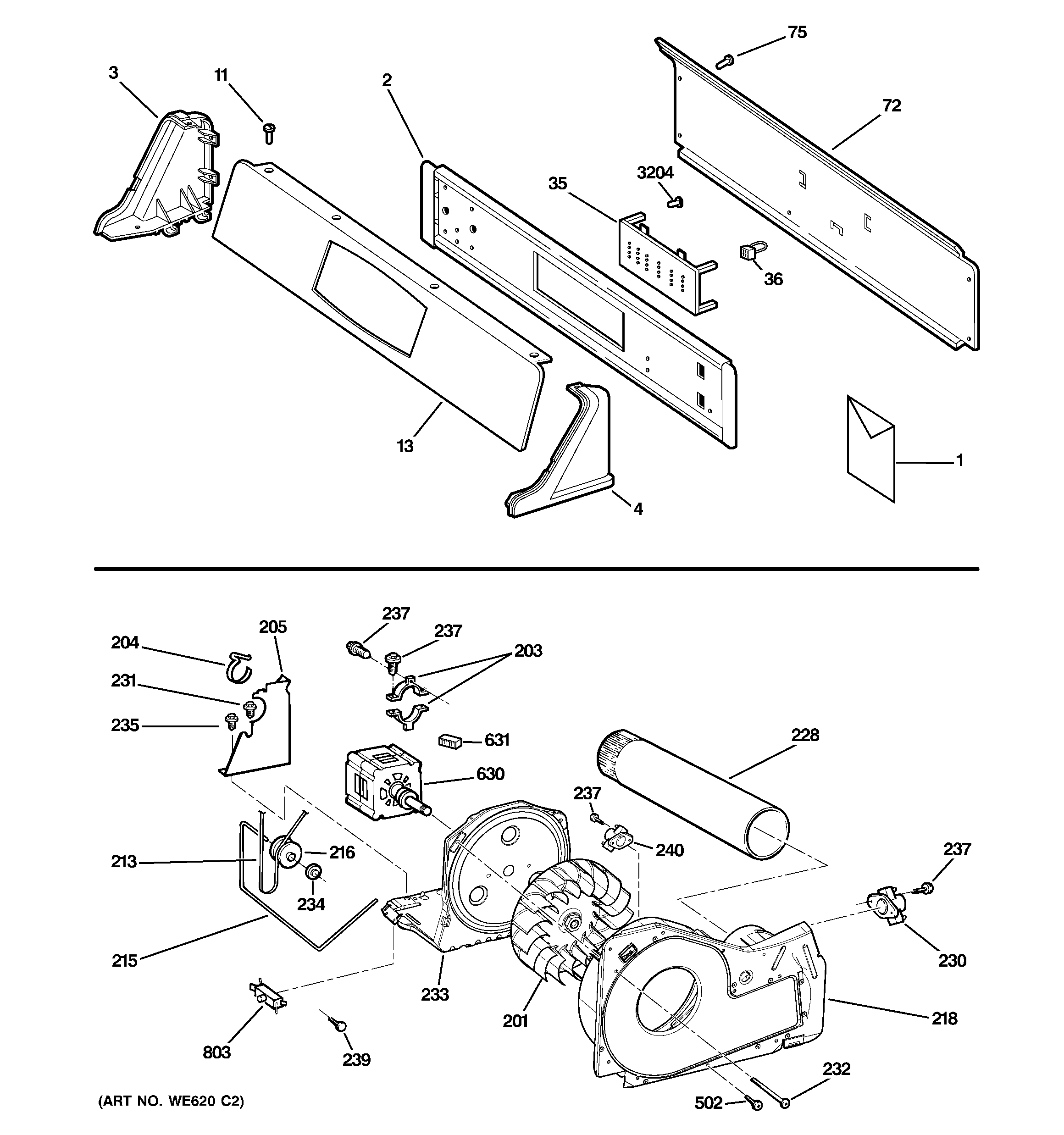

DNCD450EG8WC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

Position	Product
1	GEN 31-16193
1	GEN 31-16224
1	USE & CARE
2	GEN WH46X10055
2	WE2M215 GE 8-18 Screw Switch Plate
3	END CAP LH BK
4	END CAP RH BK
11	SCREW 8-18 AB FLT 9/16 S
13	SWITCH TRIM ASM. CHR & B
35	WE4M296 GE Washer Control Module Board
36	GEN WD21X10070
72	GEN WE20M343
75	WE2M173 GE Screw
201	BLOWER WHEEL
203	WE13X200 GE Motor Strap
204	WE1X921 GE Motor Strap
205	WE13M39 GE Motor Support
205	WE2M200 GE Ground Screw
213	WE03X29897 BELT DRIVE
215	WE03X20434 GE Washer Idler Arm
216	PULLEY
218	GEN WE14M200
228	WE14X20421 GE Exhaust Duct
230	WE4M216 GE Dryer Bias Thermostat
232	WE2M202 GE Screw
233	GEN WE13M51
234	GEN WE2M96?
235	WE2X263D GE Screw Package 12 C92
237	WD02X10057 GE Dishwasher Screw 10-16 x 1
239	WR2X9260 GE Refrigerator Screw
240	GEN WE4M299
502	WE2M174 GE Screw #10
630	WE17X22217 GE Dryer Drive Motor with Pulley
631	GEN WE1M650
803	WD21X10261 GE Dishwasher Interlock Switch
3204	WZ4X241D GE Screw Package
