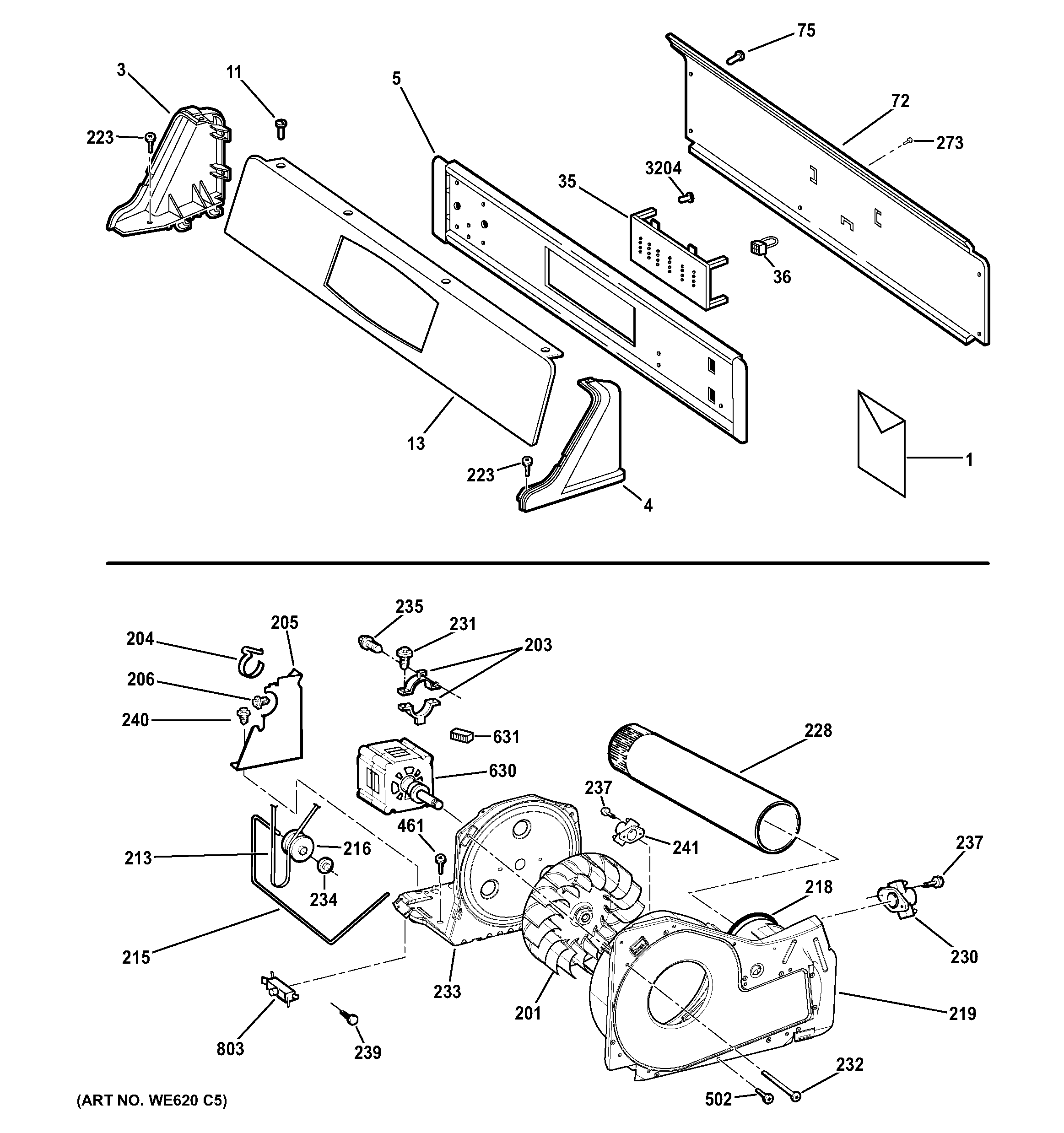

DNCD450EGBWC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DNCD450EGBWC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DNCD450EGBWC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16308
1GEN 31-16286
1USE & CARE
3END CAP LH BK
4END CAP RH BK
5GEN WH46X10055
11SCREW 8-18 AB FLT 9/16 S
13SWITCH TRIM ASM. CHR & B
35WE4M296 GE Washer Control Module Board
36GEN WD21X10070
72GEN WE20M343
75WE2M173 GE Screw
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
206WE2M200 GE Ground Screw
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218WE09X27636 GE Exhaust Blower Gasket
219GEN WE14M235
223WE2M189 GE Screw
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233GEN WE13M65
234GEN WE2M96?
235WE2M307 GE Screw 10-16 X 1/2 AB
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
240WE1M280 GE Screw
241WE4M448 GE Washer Thermistor
273WE2M228 GE Ground Screw No. 8
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
3204WZ4X241D GE Screw Package
