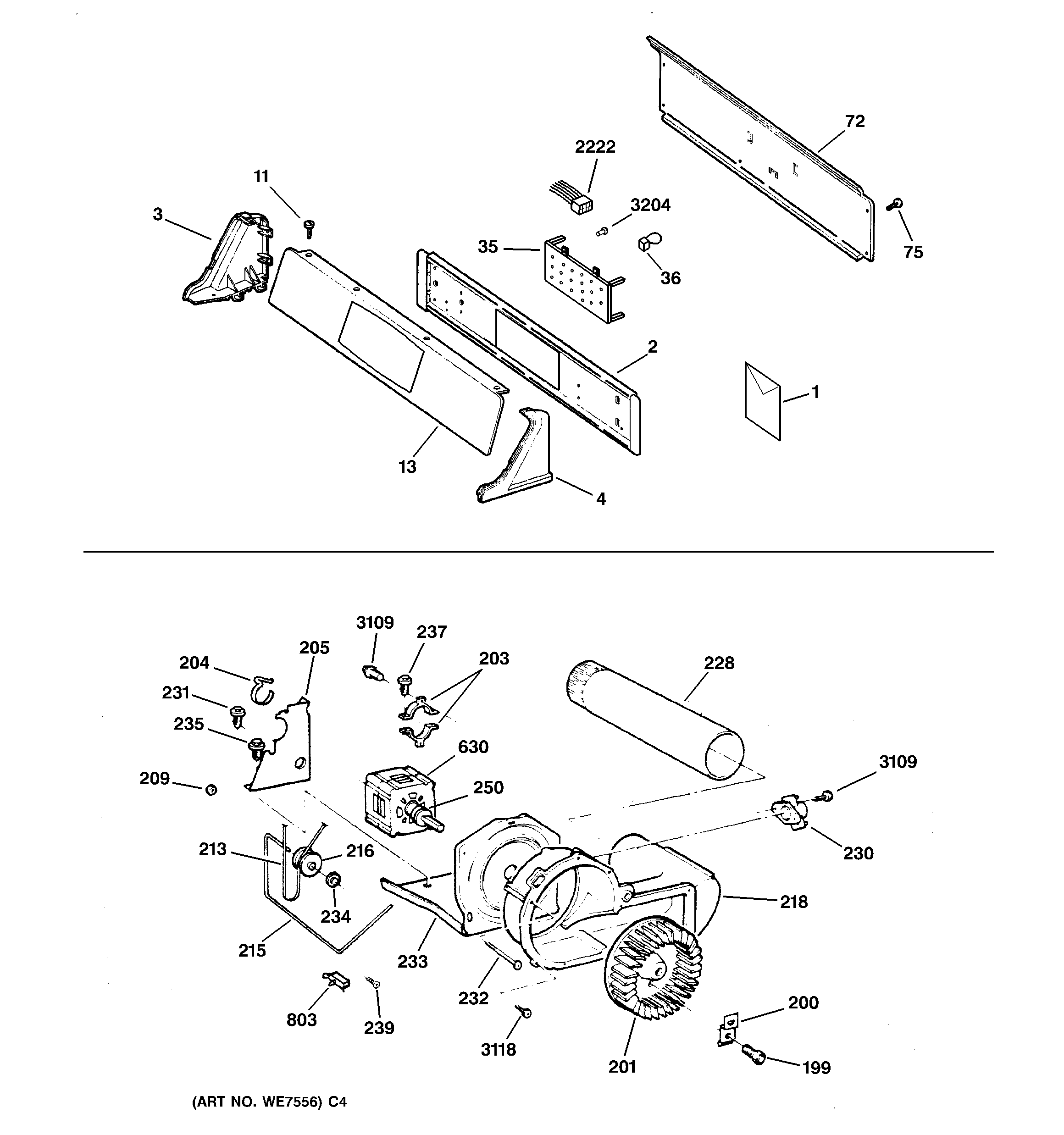

DNCD450GA1WC BACKSPLASH, BLOWER & MOTOR

DNCD450GA1WC BACKSPLASH, BLOWER & MOTOR

Written by

in

DNCD450GA1WC BACKSPLASH, BLOWER & MOTOR

Products

PositionProduct
1GEN 49-90062
1GEN 31-16026
1GEN 49-90069
2GEN WH46X10055
3GEN WE19M0938
4GEN WE19M0939
11GEN WH02X1206
13GEN WE19M1174
35WE4M296 GE Washer Control Module Board
36HARNESS
72GEN WE20X0811
75WE2M173 GE Screw
199GEN WE02X0280
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
209GEN WE02M0165
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216WE12X81 GE Dryer Idler Pulley
218GEN WE14M0078
228WE14X20421 GE Exhaust Duct
230GEN WE04M216
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE02M0096
235WE1M280 GE Screw
237WE2M200 GE Ground Screw
239GEN WE02M0167
250GEN WE12X0041
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803WD21X10261 GE Dishwasher Interlock Switch
2222GEN WE5M10
3109WD02X10057 GE Dishwasher Screw 10-16 x 1
3118GEN WH02M0342
3204WZ4X241D GE Screw Package
