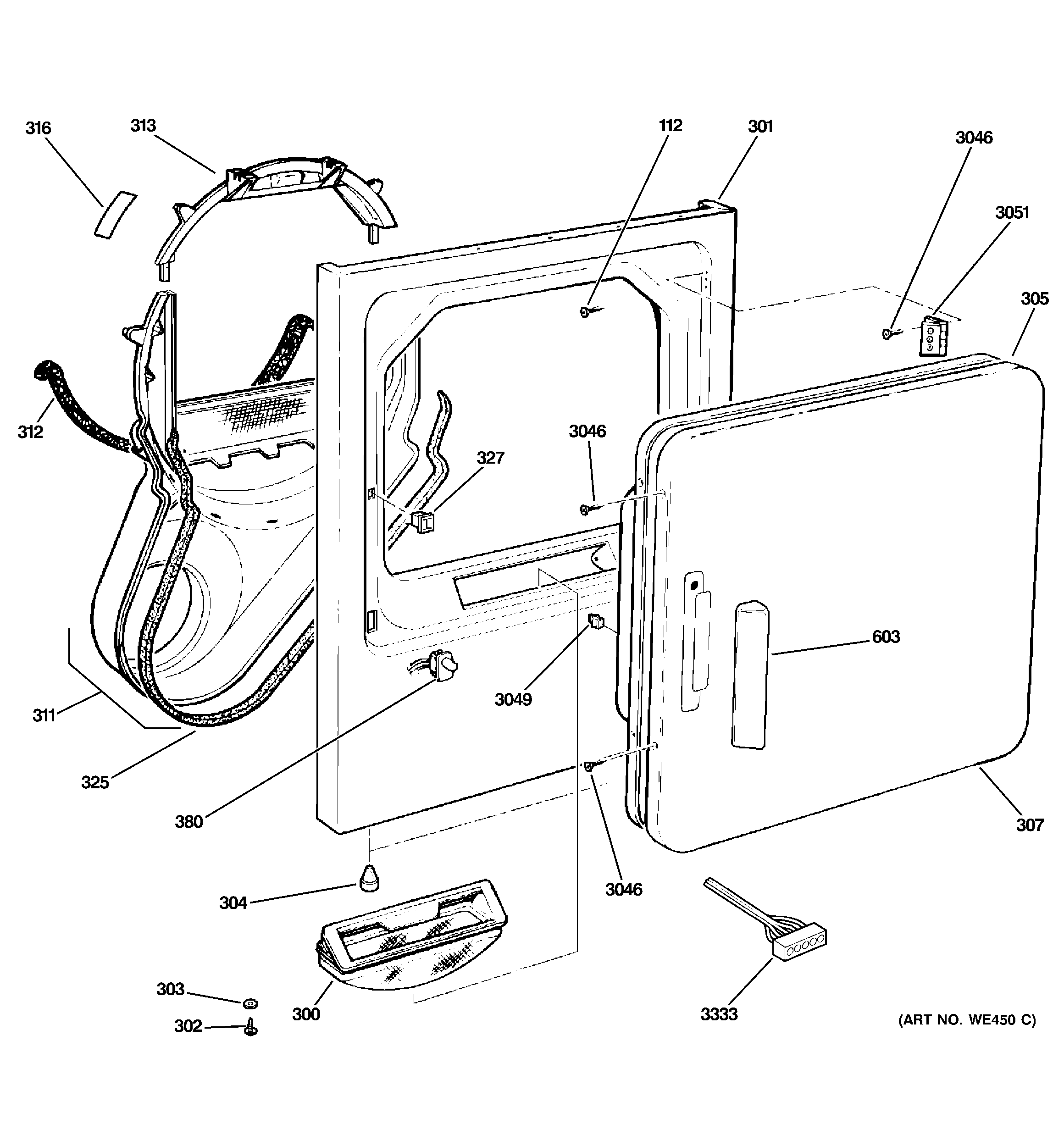

DNCD450GA2WC FRONT PANEL & DOOR

DNCD450GA2WC FRONT PANEL & DOOR

Written by

in

DNCD450GA2WC FRONT PANEL & DOOR

Products

PositionProduct
112WR01X21159 GE Button Plug
300WE18X25100 GE Dryer Lint Screen Filter
301WE01X29060 GE Heat Shield
302WE2M189 GE Screw
303GEN WE2M181
304WE2M188 GE Front Stabilizing Legs
305WE49X22295 GE Front Panel Assembly
307PANEL DOOR OUTER WH
311WE14X25080 GE Dryer Lint Filter Trap Assembly
312FELT TRAP DUCT
313WE3M26 GE Washer Dryer Front Drum Bearing
316WE01X28589 GE Bearing Slide Green
316WE03X37318 GE White Drum Slide Bearing 2 Pack
325WE1M825 GE Washer 39 Inch Dryer Gasket Seal
327WE1M1011 GE Washer Dryer Door Latch
380WE4M415 GE Washer Door Switch
603WE01X20419 GE Washer Dryer White Door Handle
3046WE2M170 GE Screw #8
3049WE1X1192 GE Dryer Door Strike
3051WE1M1033 GE Hinge
3333HARNESS SENSORS
