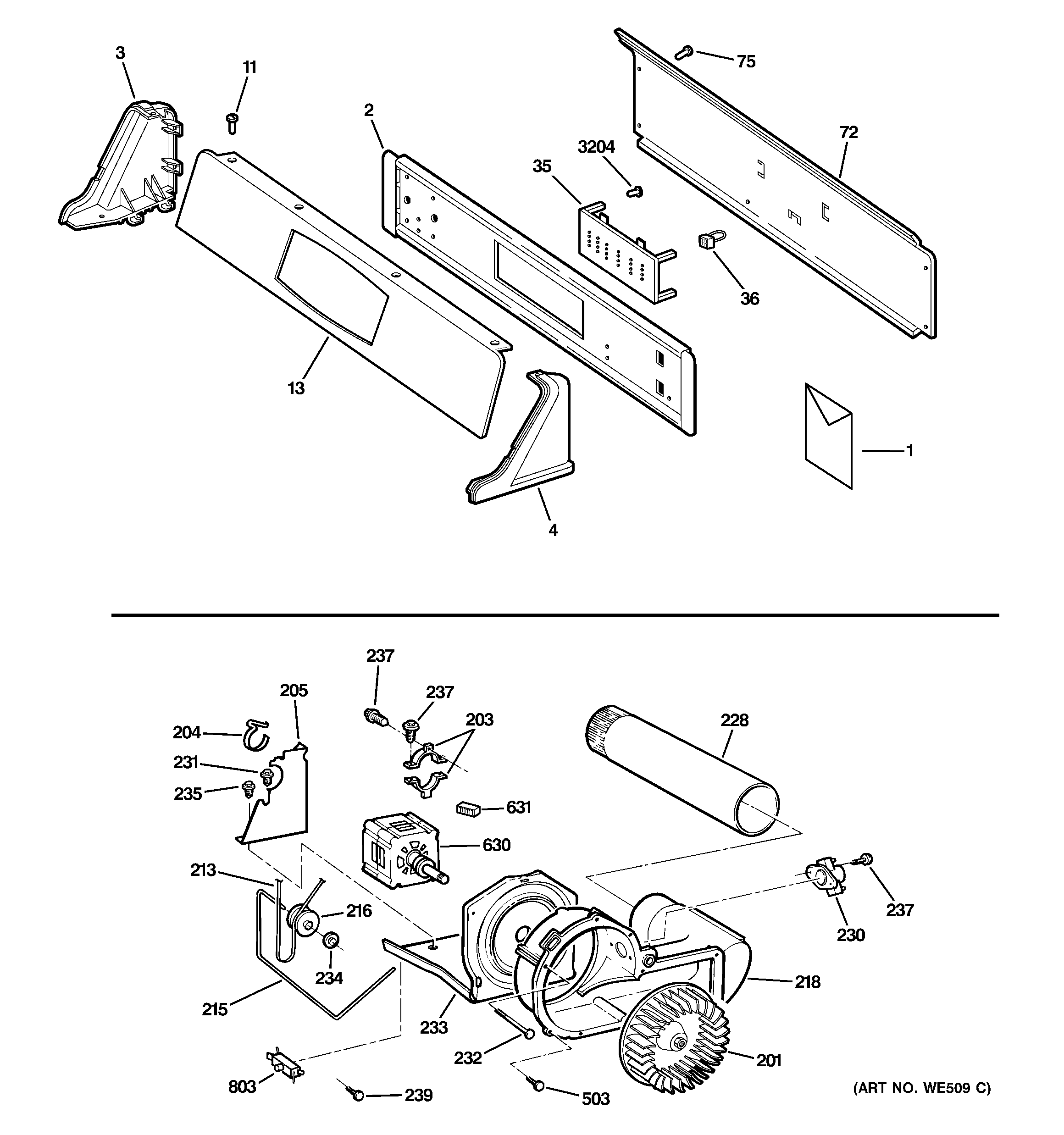

DNCD450GG1WC BACKSPLASH, BLOWER & MOTOR

DNCD450GG1WC BACKSPLASH, BLOWER & MOTOR

Written by

in

DNCD450GG1WC BACKSPLASH, BLOWER & MOTOR

Products

PositionProduct
1USE & CARE
1GEN 31-16026
1GEN 31-16139
2GEN WH46X10055
3END CAP LH BK
4END CAP RH BK
11SCREW 8-18 AB FLT 9/16 S
13SWITCH TRIM ASM. CHR & B
35WE4M296 GE Washer Control Module Board
36HARNESS
72GEN WE20M343
75WE2M173 GE Screw
201BLOWER WHEEL
203WE2M176 GE Washer Insulated
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218BLOWER HOUSING
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
233GEN WD2M174
234GEN WE2M96?
235WE1M280 GE Screw
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
503GEN WE21M16
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
3204WZ4X241D GE Screw Package
