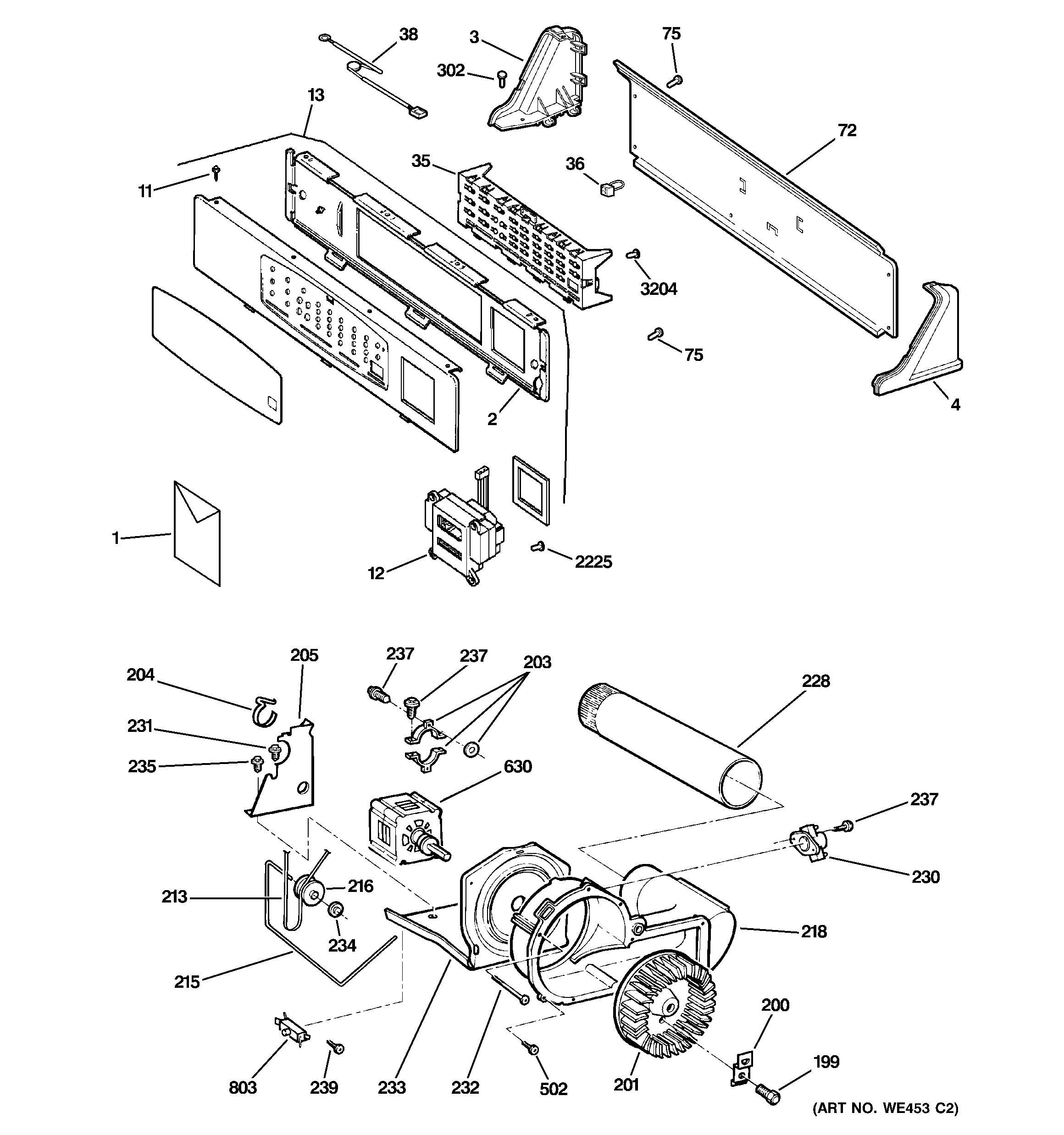

DNCJ440GA1WC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DNCJ440GA1WC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DNCJ440GA1WC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16060
1GEN 31-16056
1GEN 31-16077
2GEN WH46X10074
3GEN WE19M938
4GEN WE19M939
11GEN WH02X1233
12GEN WH12X10217
13GEN WE19M1232
35GEN WE04M0302
36GEN WD21X10030
36GEN WD21X10035
38GEN WE5M22
72GEN WE20X811
75WE2M173 GE Screw
75WZ4X241D GE Screw Package
199WE2M98 GE Screw
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE2M176 GE Washer Insulated
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218BLOWER HOUSING
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233GEN WD2M174
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE1M280 GE Screw
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
302WE2M189 GE Screw
502WE2M174 GE Screw #10
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803WD21X10261 GE Dishwasher Interlock Switch
2225WE02X10011 GE Screw
