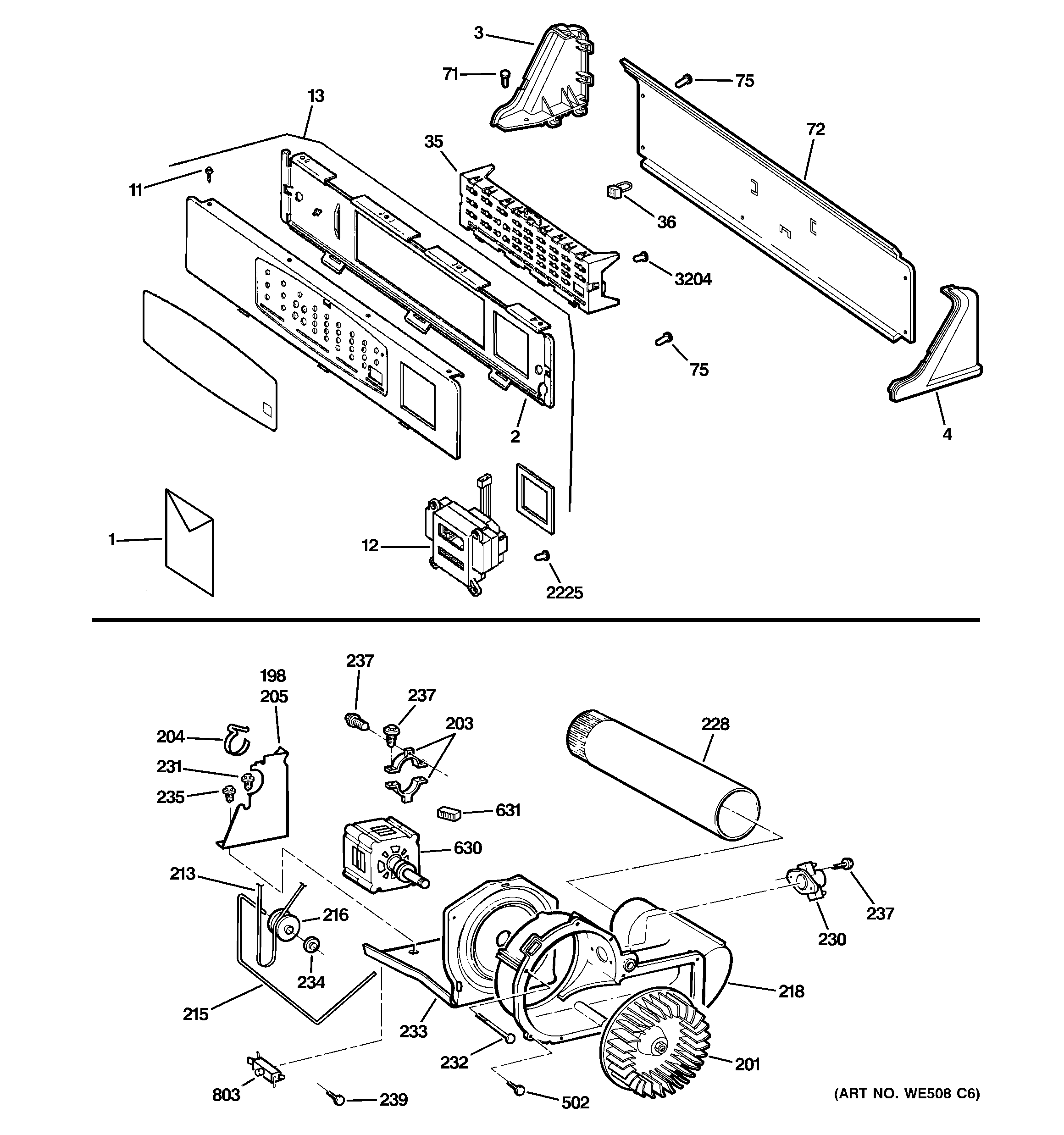

DNCK440GG4WC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

DNCK440GG4WC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Written by

in

DNCK440GG4WC BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

PositionProduct
1GEN 31-16060
1GEN 31-16139
1GEN 31-16199
2GEN WH46X10074
3END CAP LH BK
4END CAP RH BK
11GEN WH02X1233
12GEN WE4M327
13SWITCH TRIM PAN. ASM. "
35GEN WE4M302
36GEN WD21X10035
36GEN WD21X10030
71WE2M189 GE Screw
72GEN WE20M343
75WE2M173 GE Screw
198WE2M200 GE Ground Screw
201BLOWER WHEEL
203WE2M176 GE Washer Insulated
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218BLOWER HOUSING
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
233GEN WD2M174
234GEN WE2M96?
235WE2X263D GE Screw Package 12 C92
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2225WE02X10011 GE Screw
3204WZ4X241D GE Screw Package
