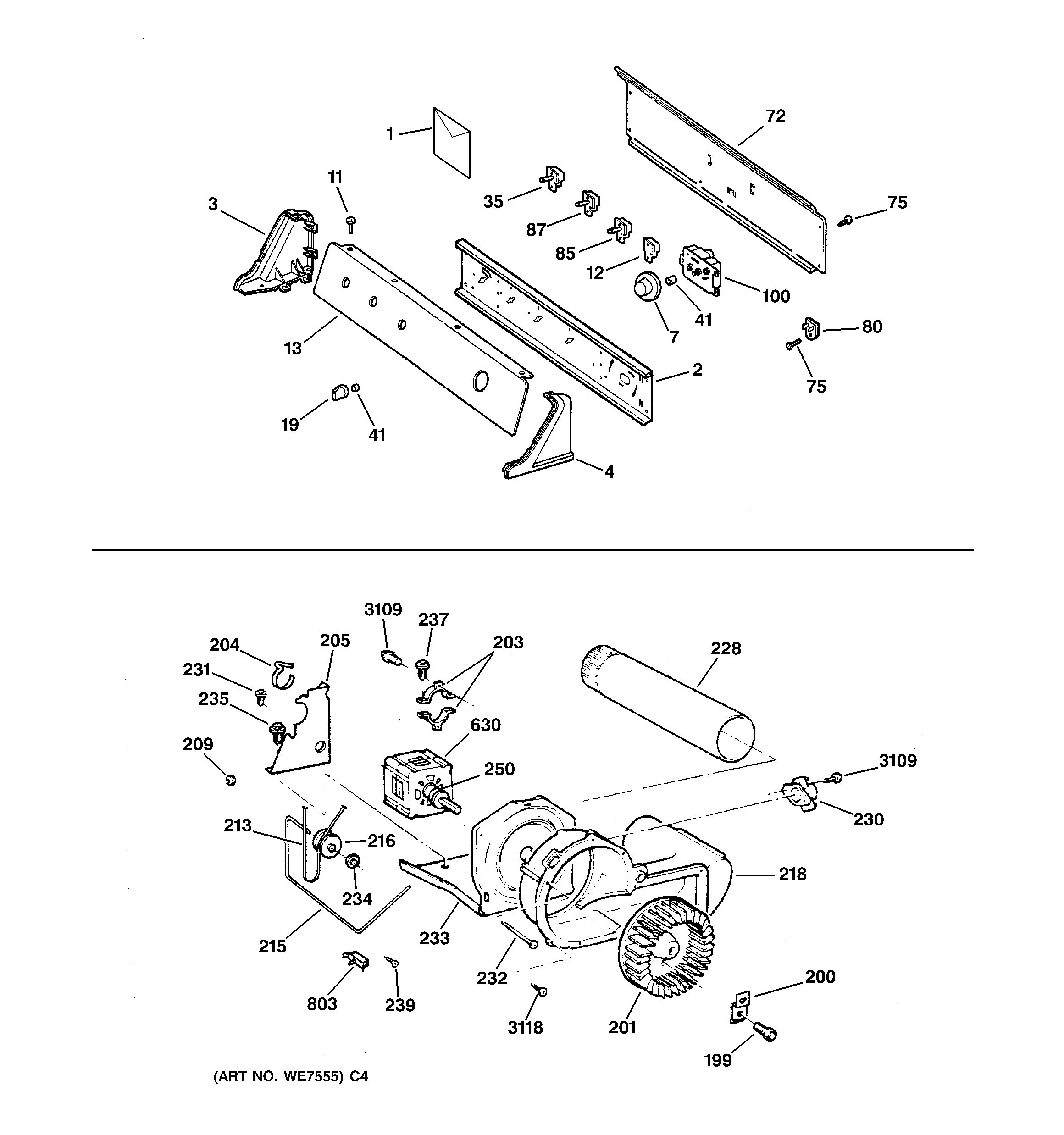

DNXR473EW2WW BACKSPLASH, BLOWER & MOTOR

DNXR473EW2WW BACKSPLASH, BLOWER & MOTOR

Written by

in

DNXR473EW2WW BACKSPLASH, BLOWER & MOTOR

Products

PositionProduct
1GEN 31-16023
1GEN 31-16038
1GEN 49-9974
2GEN WH46X349
3GEN WE19M0940
4GEN WE19M0941
7WE1M654 GE Washer White Timer Knob
11GEN WH02X1206
12GEN WE1X690
13GEN WE19M1111
19WH01X10060 GE Washer Dryer Control Knob and Clip Assembly
35WE4X881 GE Dryer Rotary Start Switch
41GEN WE01X0980?
72GEN WE20X0811
75WE2M173 GE Screw
80WE4M255 GE Washer Resistor
85WE4M399 GE Rocker Switch
87GEN WE04M242
100WE4M189 GE Timer
199GEN WE02X0280
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
209GEN WE02M0165
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216WE12X81 GE Dryer Idler Pulley
218GEN WE14M0078
228WE14X20421 GE Exhaust Duct
230GEN WE04M216
231WD02X10057 GE Dishwasher Screw 10-16 x 1
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE02M0096
235WE1M280 GE Screw
237WE2M200 GE Ground Screw
239GEN WE02M0167
250GEN WE12X0041
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803WD21X10261 GE Dishwasher Interlock Switch
3118GEN WH02M0342
