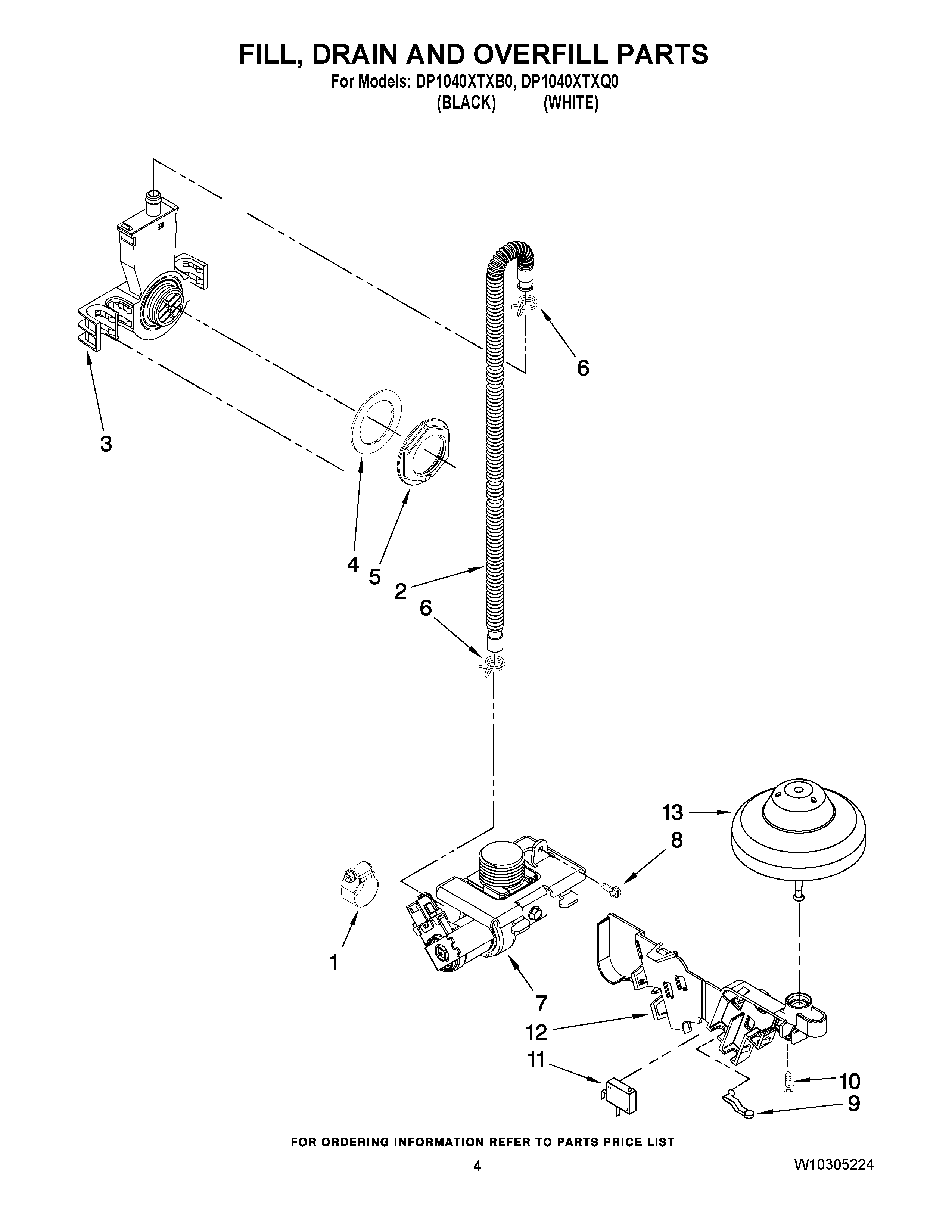

DP1040XTXB0 04 – FILL, DRAIN AND OVERFILL PARTS

DP1040XTXB0 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

DP1040XTXB0 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1WP3367052 Whirlpool Hose Clamp
2W10878507 Whirlpool Inlet Hose
3WPW10195536 Whirlpool Water Inlet Valve
4WP8531323 Whirlpool Gasket Seal
5WPW10508676 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7W10648041 Whirlpool Water Inlet Valve
8WP489069 Whirlpool Compactor Screw
9WP8268892 Whirlpool Dishwasher Lever
10WP304231 Whirlpool Dishwasher Screw
11WP8268909 Whirlpool Dishwasher Switch
12WPW10175383 Whirlpool Dishwasher Standpipe
13WP8268913 Whirlpool Dishwasher Float Assembly
